UV Inkjet Printer
2、Suitable for producing self-adhesive labels, trademarks, stickers, color labels in rolls and other printed products.
3、Removes the need for conventional plate-making and exposure, minimizing production costs and lead times while supporting diverse, small-volume and urgent customized printing projects.
4、Machine dimensions: 2m × 1.5m × 1.9m
5、Machine weight: 1500 KG
6、Curing method: LED + traditional dual curing system
7、20-year design lifespan supported by lifetime after-sales service.
8、Extensive factory network throughout China enables rapid order fulfillment.
9、Southeast Asia-based warehouses provide efficient import and export support.

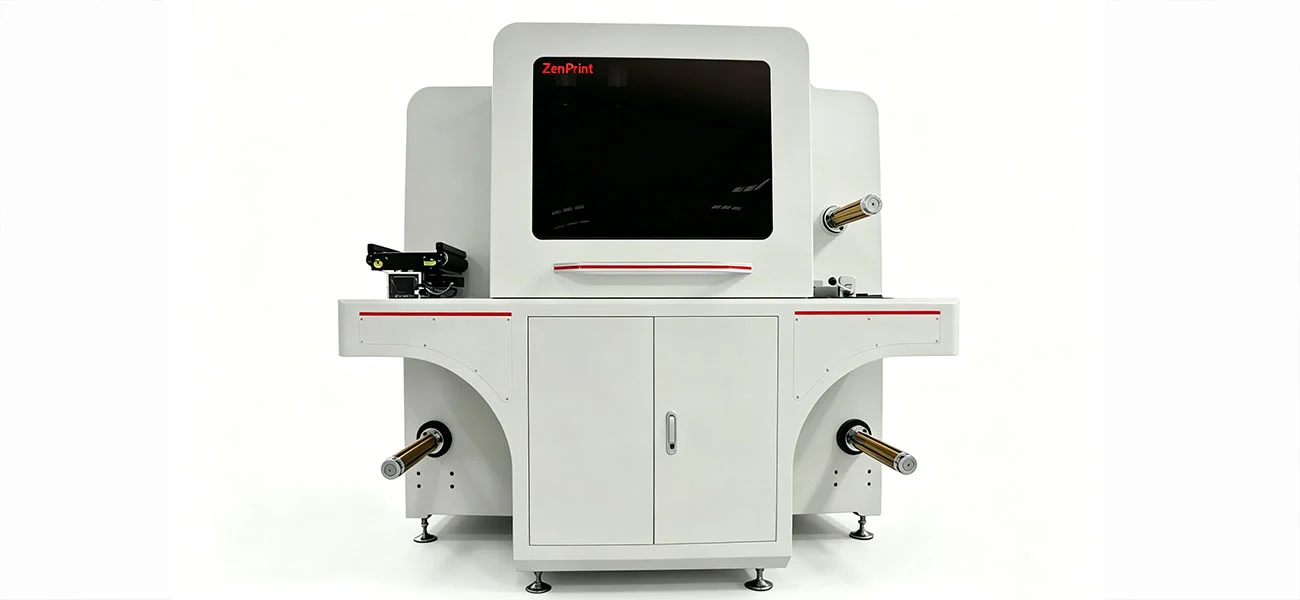

High-Speed UV Inkjet Printer for Label Production | Intelligent Plate-Free Digital Printing Solution
Shanghai Honghua Digital Equipment Co., Ltd. is a professional manufacturer of UV Inkjet Printer for self-adhesive label and trademark. This digital plate-free printing equipment is manufactured to industrial specifications of 1500 kg and measures 2m × 1.5m × 1.9m. The machine accommodates material widths from 75 mm to 350 mm and has a positioning accuracy of 0.005 mm with dual LED + conventional curing technology and 20 kW power. Our technology eliminates plate-making procedures and delivers enterprise-grade reliability for high-volume production applications with a 20-year design lifespan, lifetime technical support and a 12-month warranty.
Advanced Plate-Free UV Inkjet Printer Technology
Our technology removes the need for plate-making and exposure and thus changes the label manufacturing processes. This technology is adapted to varied, small-batch, and urgent custom printing projects since it dramatically reduces manufacturing costs and turnaround times.
The system combines UV-curable inks and piezoelectric drop-on-demand technology. UV-LED lamps instantly photopolymerise substrates, removing post-press drying and boosting production. Cold-curing means heat-sensitive material may be printed without deformation.
Technical Specifications
| Parameter | Specification |
|---|---|
| Overall Dimensions | 2m × 1.5m × 1.9m |
| Machine Weight | 1500 kg |
| Operating Power | 20 kW |
| Power Supply | AC 380V |
| Air Supply | 0.6–0.8 MPa |
| Input File Formats | TIFF, PDF |
| Curing Method | LED + Conventional Dual System |
| Feed Material Width | 75 mm–350 mm |
| Max Roll Diameter | 800 mm (unwinding/rewinding) |
| Material Thickness | 0.02–1 mm |
| Max Printing Width | 322 mm |
| Printing Colors | CMYK Four-Color |
| Positioning Accuracy | 0.005 mm |
Precision Engineering Features

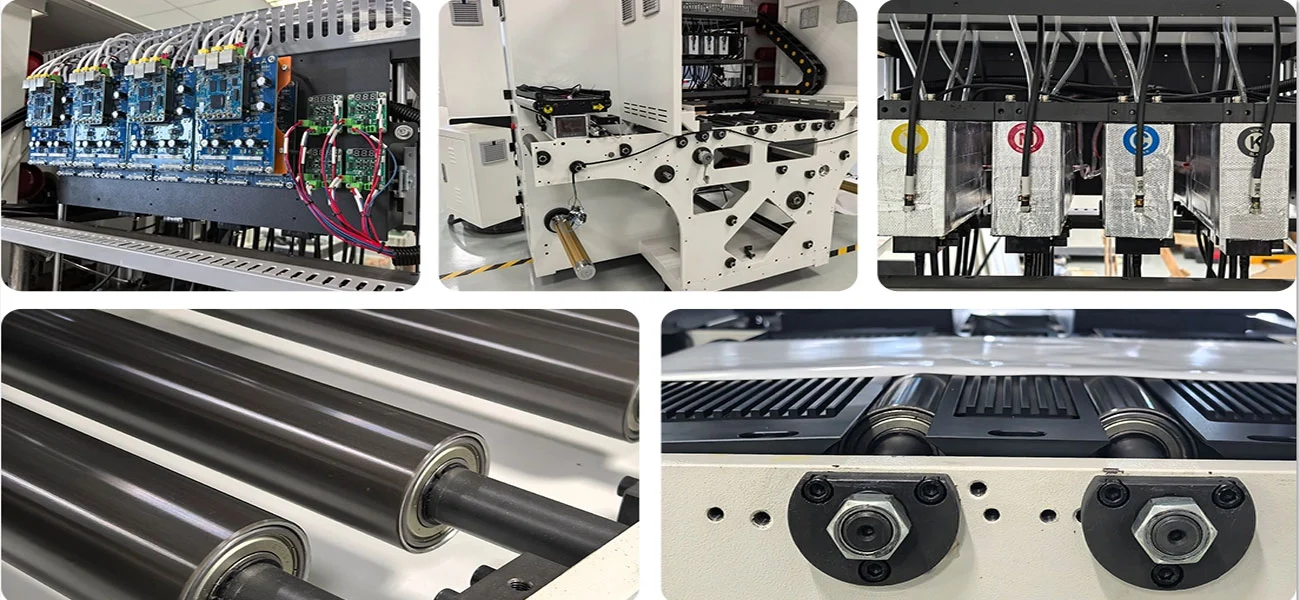

An integrated UV Inkjet Printer allows a repeat placement accuracy of 0.005 mm, thanks to an ultra-high-precision machined base plate that has been subjected to several heat treatments for permanent dimensional stability. Its splicing technique is patented to provide smooth printing in long runs.
Multi-stage negative pressure design and whole circuit ink temperature control system from the main ink cartridges are advantages for your production. This guarantees uniform print quality despite seasonal temperature fluctuations. The slit LED technology with minimal light leaking avoids printer clogging in continuous operation.
Our innovative ink circuit design allows activation of vacation mode within 1 minute by power-off, preserving your equipment during downtime. Automatic foreign object identification and smart printhead protection mechanisms secure your investment.
Versatile Production Capabilities
This method enables front and back secondary printing with any colour overprinting, considerably broadening your product line. Create professional grade self-adhesive labels, trademarks, stickers and colour labels in rolls.
Material compatibility from 0.02mm to 1mm thickness, suitable for a wide variety of substrates including non-porous surfaces. The maximum roll diameter of 800 mm for unwinding and rewinding allows for high-volume production runs without the need for frequent material changes.
Industrial-Grade Manufacturing

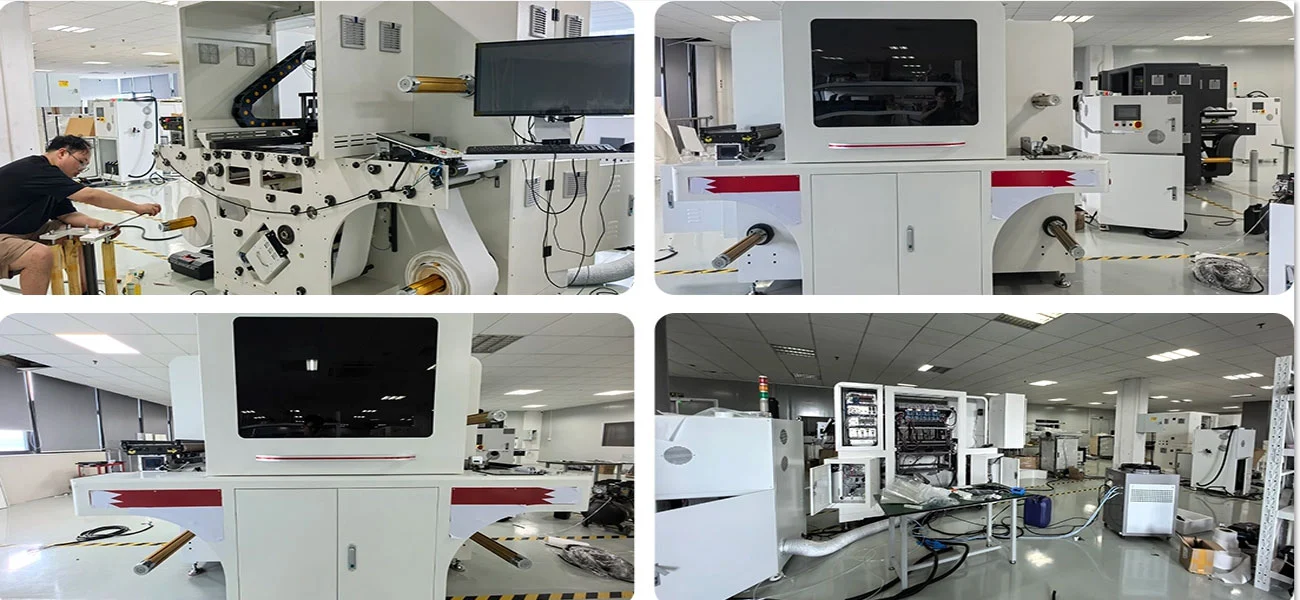

Our UV Inkjet Printer is built on 20 years of manufacturing expertise, using proven engineering from Shanghai Honghua’s facilities in South China, East China and Southeast Asia. The 1500 kg sturdy structure guarantees a vibration free operation which is a must for sustaining the nano level accuracy.
Strict quality control systems and skilled production management provide constant output quality. 20-year design life is the trust we have in material selection and structural engineering.
Global Support Infrastructure
Enjoying a wide network of factories all throughout China for fast order fulfilment and spare parts delivery. Southeast Asia warehouses provide effective import and export assistance for worldwide enterprises.
Standard fumigated solid timber boxes with multi-layer shockproof foam protection for professional export packing. Precision components are packed in individual moisture-proof packaging for safe overseas shipment.
Complete Technical Service Ecosystem
Along with providing the equipment, you’ll receive full technical support, including installation help, remote technical support and on-site servicing as required. Our professionals assist you maximise the performance of your equipment throughout its life cycle.
Flexible customisation of hardware configuration, software functionality, voltage need (110V/220V/380V), etc. PLC control systems are compatible with many regional standards and may be integrated with current manufacturing lines.
FAQ
Q: Why do you have to treat white ink a certain way with UV printing?
A: White UV ink includes quick settling Titanium Dioxide particles. Our circulation system prevents sedimentation and clogging of the printer and maintains opacity during lengthy runs.
Q: Can this printer handle heat-sensitive materials?
A: Yeah. UV-LED curing avoids deformation of thin films and heat-sensitive polymers during thermal drying.
Q: How long do UV-LED light bulbs last?
A: The UV-LED bulbs have a lifespan of 20,000–30,000 hours, which is much longer than the 500–1,000 hours of mercury lamps, thereby minimising maintenance costs.
Q: How do you adhere ink to challenging substrates?
A: We examine polymerisation and adhesion strength on different materials using Cross-Hatch Adhesion Tests (ASTM D3359) and MEK rub tests.
Q: What file formats are supported by the system?
A: It supports TIFF and PDF so it will function with your design process and RIP applications.
Contact Us
Ready to transform your label production with a UV Inkjet Printer? Contact our technical team at [email protected] to discuss your specific requirements and receive detailed application guidance.
