Label Vision Inspection Systems

High-Precision Label Vision Inspection Systems | 350mm Industrial Grade | 20-Year Lifespan Solution

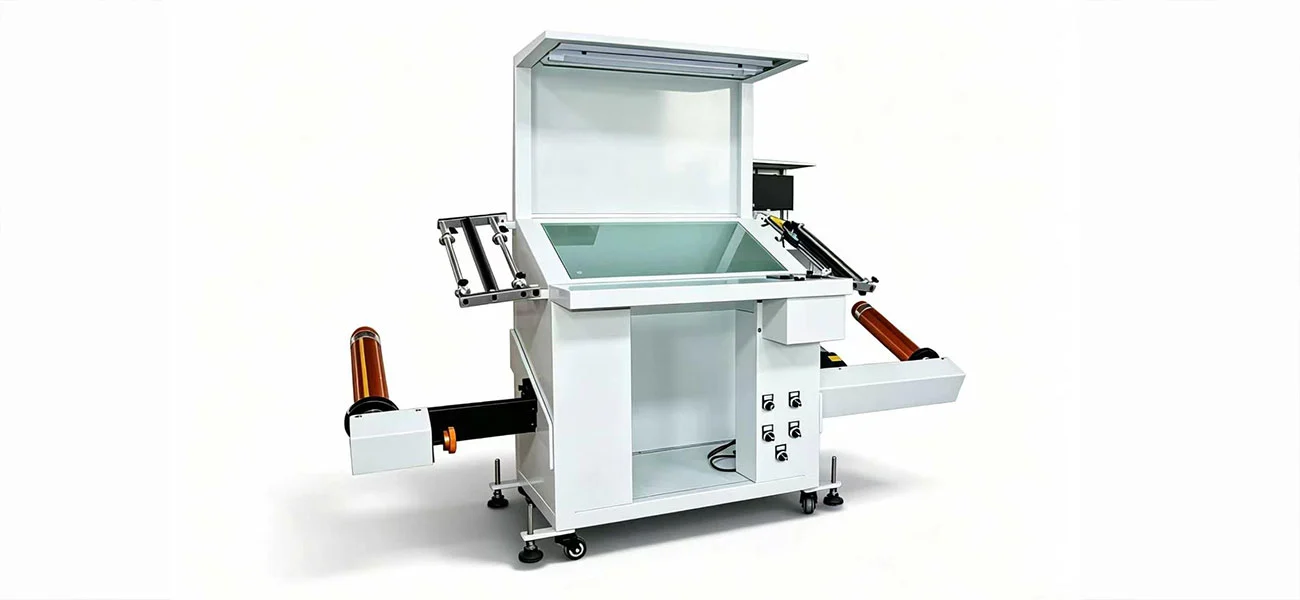

Shanghai Honghua Digital Equipment Co., Ltd. provides enterprise-level Label Vision Inspection Systems for automated quality inspection of a wide range of label materials and production conditions. The Model 350 system has a rugged inspection platform of 350×920mm and can accommodate a maximum width of 350mm for the web. It has two unwinding/rewinding stations of 500mm diameter. The integrated system is working with a total power consumption of 0.5kW, and can accomplish precise flaw detection with a small footprint of 1900×450×1200mm. The system is built for industrial reliability with features including automatic meter counting, piece counting, electronic speed regulation and foot pedal control to provide plug and play operation backed by our 20 year service life guarantee and lifetime technical support from our multi-facility manufacturing network.

Why Manufacturing Leaders Choose Label Vision Inspection Systems Technology?

Today, manufacturing lines need  labels to avoid expensive recalls and protect brand integrity. Manual inspection procedures have a human error rate of 15-20% during long shifts, presenting considerable compliance concerns in regulated businesses.

Vision-based inspection removes subjective judgement, providing uniform repeatable analysis. The system detects faults in appearance, printing, substance, reverse winding and dimensional irregularities not possible to identify visually. Automated verification offers 100% coverage at production rates when human inspection is physically impossible for pharmaceutical serialisation, beverage bottling and chemical labelling procedures.

Advanced Detection Capabilities for Complex Applications

We use dedicated imaging technology in our Label Vision Inspection Systems to handle difficult inspection cases. The platform also supports different label materials such as clear films, metal substrates and textured materials.

The detection settings may be tuned to discern between cosmetic deviations and serious problems. Small printing defects may be programd as acceptable margins. Character mistakes, lack of data or barcode quality problems prompt fast rejection processes. This smart categorisation minimises the false positive rate, while maintaining zero defect levels for functional requirements.

Real-time defect recording provides detailed batch reporting. With each rejection event, high-resolution photos, timestamp data and categorised reasons for failure are captured, providing quality managers with relevant information for process optimisation and regulatory documentation.

Technical Specifications

Rapid Changeover for Multi-Product Environments

The need to quickly adjust to various label criteria requires flexibility in production. This system has the task recipe management to change the parameters using the user friendly touch screen interfaces. Operators choose from pre-configured templates for each label design, with no manual re-calibration required between production runs.

This feature is essential for contract manufacturers and multi-SKU facilities. Changeover operations are completed in seconds instead of hours, increasing equipment utilisation and minimising downtime. This allows for limitless permutations of recipe libraries allowing seasonal items, regional variations and client particular needs with no hardware changes.

Integrated Design for Immediate Deployment

Traditional inspection equipment involves a long installation, calibration, and integration phase. Our all-in-one design gets rid of these hurdles with factory-configured systems. No particular technical experience is required for starting. Start operation after connecting the power supply upon delivery.

Its small size is ideal for manufacturing workplaces where floor space is at a premium. Its length (1900 mm) and breadth (450 mm) enable it to be easily incorporated into current line layouts without considerable changes. If you are running many lines out of one facility, all of the same size makes it easier to arrange your business.

During set-up or quality audits, foot pedal control may be used to activate operator-assisted verification modes. Electronic speed control synchronises production flow by matching inspection output with upstream and downstream equipment.

Industrial-Grade Reliability and Support Infrastructure

Component choice - including the Label Vision Inspection Systems - prioritises durability above upfront price. The 20-year service life is obtained by designed durability using precise mechanical assembly, industrial grade electronics and wear resistant contact surfaces. Over long durations of operation, our customers see very few failures of main components.

Shanghai Honghua’s multi-facility production network in South China, East China and South East Asia offers fast spare parts availability. Southeast Asia warehousing hubs provide faster supply to international markets with less logistical complexity.

The 12-month warranty covers manufacturing faults and material failures . We provide lifetime technical support after the warranty period, which includes remote diagnostics, troubleshooting assistance and tips on how to optimise performance. We are committed to building long-term relationships, not just selling equipment.

Global Logistics and Professional Packaging Solutions

Precision parts need particular care in international equipment shipments. We pack in fumigated solid timber export boxes with multi-layer shock-proof foam insulation. Critical items are packed separately and moisture-proofed to avoid environmental damage during transportation.

We can do trade terms according to customers’ need such as FOB Shanghai/Ningbo, CIF, DAP etc. We provide sea freight, air freight, rail transportation and rapid delivery solutions to allow you flexibility in terms of urgency and financial limits. Customers may use their own freight forwarders with our paperwork help.

Customs clearance in the country usually takes 1-3 working days. We can provide you comprehensive export documents and support with destination-country clearance to simplify your cross-border operations. This all-in strategy reduces your administrative workload throughout the procurement and implementation stages.

FAQ

Q: How does the system work with clear labels on shiny surfaces?

A: Custom lighting rigs and contrast-based algorithms identify label edges and print presence that traditional sensors cannot. The method also works on problematic substrates such as transparent coatings on glass bottles.

Q: Can inspection sensitivity distinguish between cosmetic and critical defects?

A: Yes. Acceptable tolerances for small deviations are set via adjustable parameters, with functional faults such as wrong characters or missing barcodes being flagged. This minimises needless rejections and maintains quality standards.

Q: What integration capabilities exist for existing production systems?

A: The device supports conventional industrial communication protocols for connecting to PLC and MES. Upload data to centralised quality control systems, deflect signals to downstream rejection mechanisms.

Q: How fast can operators change between various label formats?

A: Touchscreen selection provides job recipe control with parameter changes in seconds. Pre-configured templates save time by eliminating the need to re-caliberate manually between product and label designs.

Q: What validation paperwork is required for regulatory compliance?

A: The technology provides secure audit trails for parameter changes and inspection findings. This documentation framework enables IQ/OQ/PQ validation methods as needed by the pharmaceutical and food safety industries.

Contact Us

Discover how our Label Vision Inspection Systems enhance your quality control capabilities. Contact [email protected] for technical specifications, pricing information, and application consultation tailored to your production requirements.
