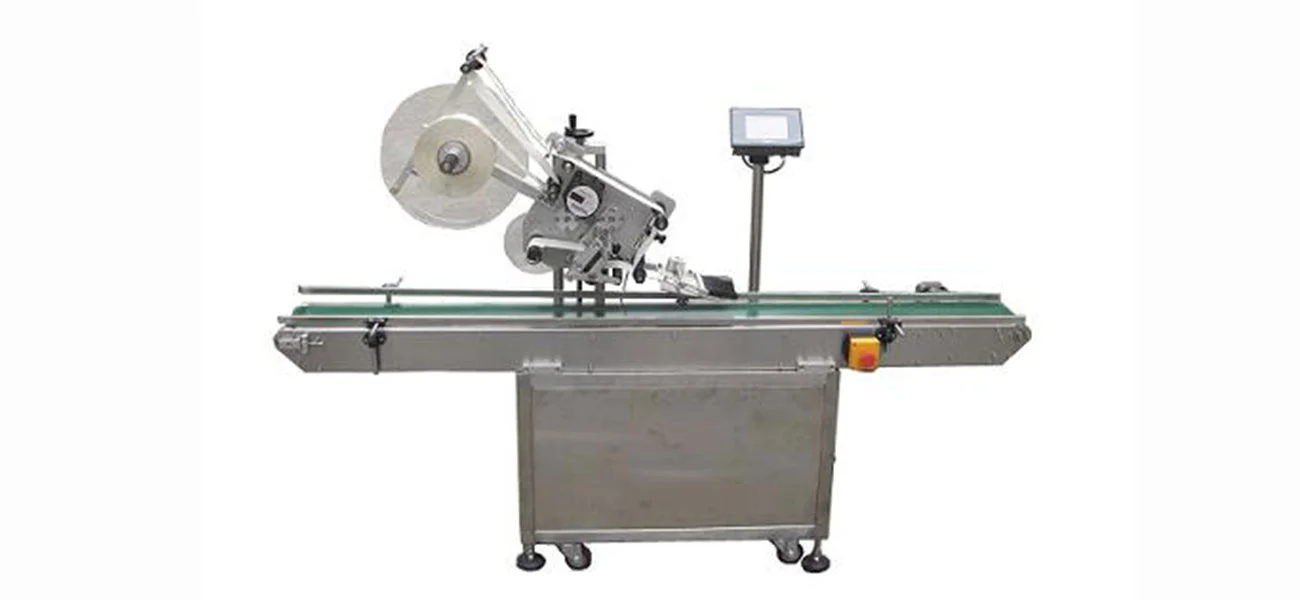

Automatic Flat Surface Labeling Machine
2. PLC combined with LCD touch screen panel, the setting and operation is clear and easy.
3.The equipment is complied with GMP requirements and made of SUS304 stainless steel
and high-class aluminum alloy.
4.The machine has many functions such as guiding, labeling, attaching, counting
5. The labeling position can be adjusted.
6. The machine can be used in production line with conveyor belt.
7. The special machine can be customized according to customer requirement
High-Performance Automatic Flat Surface Labeling Machine | Precision Top Labeling Equipment for Industrial Production Lines
The pharmaceutical, culinary, electrical, and logistics industries may all benefit from the JT-210 Automatic Flat Surface Labeling Machine, made by Shanghai Honghua Digital Equipment Co., Ltd. This industrial-grade equipment applies labels on products 10- to 200-mm wide with a ±1mm labelling accuracy at speeds up to 25 meters/min. The machine is made of GMP standard SUS304 stainless steel, and adopts advanced PLC control with LCD touch screen interface, ensuring smooth operation. With 20 years of manufacturing expertise and 13 technological patents, our method eliminates human labelling flaws and enables zero-defect application on flat surfaces such as cartons, bottle lids, screen panels, and flexible packaging.
Automatic Flat Surface Labeling Machine: Intelligent PLC Control System with Zero-Basis Operation
The JT-210 has an industrial grade PLC with an easy to use HMI Touch Screen. It offers one-shot parameter storing and rapid retrieval for diverse product demands.
Non-technical persons can run the system in minutes. The control panel shows label counts, speed changes and diagnostic warnings in real time.
Smart built-in functions include automated missing label identification, no-product auto-stop protection, and self-inspection. These qualities decrease both waste and damage to equipment during continuous manufacturing.
The constant speed smoothing roller guarantees a bubble free and wrinkle free application every time. This compensates for common human or semi-automatic labelling faults.
Versatile Application Across Multiple Industries
The Automatic Flat Surface Labeling Machine is particularly versatile for various manufacturing settings. Precise handling of square containers, flexible pouches, sheet material and electrical components.
Pharmaceutical Applications: Anti-counterfeiting labels Instructions on prescription boxes * COVID-19 test kits and clinical packaging in cleanrooms for traceability
Food and beverage production: High-speed labelling of lids on rectangular containers, vacuum sealed flat pouches and bread packaging in cold chain or high humidity applications.
Electronics Manufacturing: 100% warehouse logistics system scanner readability with heat resistant barcode and QR labels on PCBs, mobile phone screen panels and CD casings.
It accepts adhesive, transparent and coated labels. This implies a reduced need for specific equipment.
Technical Specifications & Performance Parameters
| Specification | Details |
|---|---|
| Model | JT-210 |
| Power Supply | 110V/220V, 50/60Hz, 600W |
| Labeling Speed | 0-25 meters/minute (adjustable) |
| Labeling Precision | ±1mm |
| Product Width Range | 10-200mm (customizable) |
| Label Size | Height: 20-105mm / Length: 20-250mm (customizable) |
| Label Reel Diameter | Inner: 76mm / Outer: 360mm (maximum) |
| Machine Dimensions | L2000 × W750 × H1500mm |
| Frame Material | SUS304 stainless steel + high-strength aluminum alloy |
| Compliance | GMP standards |
The equipment supports flexible voltage configurations including 110V, 220V, and 380V options to meet regional electrical standards. Custom label dimensions beyond standard specifications are available through our OEM/ODM services.
GMP-Compliant Construction & Durability
The main frame is comprised of 304 stainless steel and a high-grade aluminium alloy for corrosion resistance. This building is constructed to pharmaceutical and food GMP standards.
Easy-clean surfaces prevent contamination during multi-shift operations. Designed for rapid sanitation between product changes, the equipment guarantees cleanliness.
Precision photoelectric sensors accurately find the labels. Flexible laminating technique for product height and texture.
Reserved synchronous connections integrated into production lines. Optional upgrades include dual labelling heads, wider conveyors, date/batch printing coding connection and specialised positioning fixtures.
Customization Options & Flexible Order Support
Shanghai Honghua’s production capacity can handle both standard and non-standard equipment development. We provide total customisation in hardware setup, software functionality and application specific solutions.
MOQ Flexibility: Single units for testing, small batches for trial manufacturing or large numbers for full deployment. We have consistent capacity with our production sites in South China, East China and South East Asia.
Available Custom Features:
- Extended conveyor width for large items
- Dual labeling heads for simultaneous top and bottom application
- Integrated thermal transfer printers for changeable data
- Specialized fixtures for irregular shaped products
Our Automatic Flat Surface Labeling Machine engineering team provides technical consultation and application testing before final configuration. This collaborative approach ensures your product meets exact operational requirements.
Global Logistics & Professional After-Sales Support
We provide comprehensive export services with professional documentation support. The terms of trade are FOB Shanghai/Ningbo, CIF and DAP.
Safe Export Packing: Equipment packed in fumigated solid wooden boxes with multi-layer shockproof foam protection. Independent precision components in moisture proof packaging.
Shipping Methods: Air freight, sea freight, rail transportation, international express delivery. Customers may select their own preferred goods forwarders.
guarantee & Support: All machines are supplied with 12 month guarantee and lifetime technical support. We can help you troubleshoot remotely, provide spare parts, or send someone to your location if needed.
FAQ
Q: How does the machine handle transparent labels?
A: Photoelectric sensors use ultrasonic or high contrast detecting devices for clear-on-clear label applications.
Q: What causes wrinkling of labels and how to prevent it?
A: wrinkles are generally due to a speed mismatch in conveyor label dispensing.Our PLC technique of micro-adjustment synchronisation solves this issue.
Q: Will the equipment be compatible with existing production lines?
A: Yes.The system is equipped with flexible signal interfaces (RS485/Ethernet) for the coordination with upstream filling machines or downstream packing equipment.
Q: What is your recommended timetable for maintenance?
A: Weekly sensor and roller cleaning, and monthly drive belt tension checks keep the performance and accuracy sub-millimeter.
Q: How wide may the label be?
A: Standard models are for 150mm.Your requirements may be utilised to build headers for 300mm wide flat surfaces.
Q: How soon can the equipment be converted to other products?
A: The adjustable labelling positioning and recorded parameter profiles allow product changeovers in under 5 minutes without tools.
Contact Us
Ready to eliminate manual labeling inefficiencies and achieve pharmaceutical-grade precision with the Automatic Flat Surface Labeling Machine?
