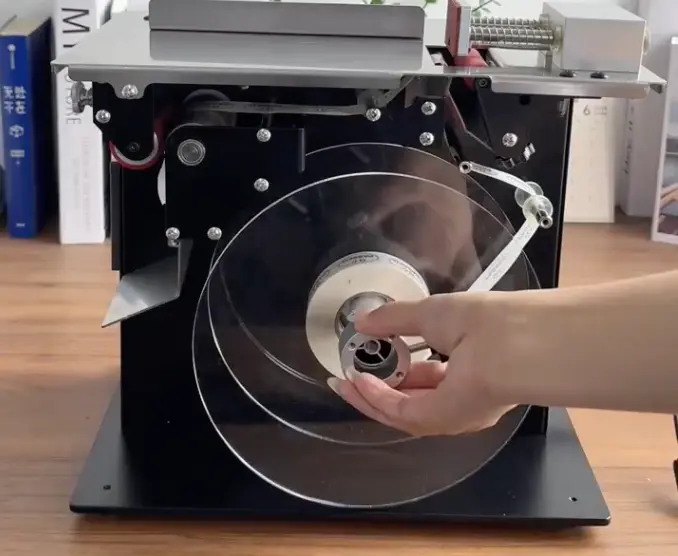

Desktop Label Applicator
2、Suitable for labeling different flat products, with accurate 90° corner labeling for sealing, anti-counterfeiting, and tamper-evident applications.
3、Efficiently applies tamper-proof labels to various packaging boxes while supporting flexible, multi-product production.
4、Offers a 20-year service life with lifetime after-sales service support.
5、Multiple manufacturing bases across China ensure fast production and shipment.
6、Equipment warehouses in Southeast Asia make international import and export more convenient.
Professional Desktop Label Applicator with PLC Control | High-Precision Tamper-Evident Labeling Solution for Packaging Automation
Shanghai Honghua Digital Equipment Co., Ltd. - Professional Desktop Label Applicator with sophisticated PLC control system, adjustable labelling height, variable speed operation for business packing lines. The precise equipment can label at rates of 20 to 50 pieces per minute, and can place labels with an accuracy of ±0.5 mm. There is also a dedicated 90° corner application function for sealing and anti-counterfeiting needs. The product is available in a small footprint of 34cm x 21cm x 28cm with real-time output counting statistics and an amazing 20-year operational life. Rapid global deployment is enabled by Shanghai Honghua’s dual-continent manufacturing infrastructure across South China, East China and Southeast Asia facilities.
Professional Desktop Label Applicator:Intelligent PLC Control System for Precision Automation
Our Desktop Label Applicator is controlled by a powerful programmable logic controller with straightforward parameter modification to meet different production circumstances. The device enables the labelling height and running speed to be adjusted in real time without taking the equipment off line.
The integrated output counting module automatically measures label use throughout manufacturing cycle. Its incorporated statistical function offers clear production statistics, allowing workshop managers to correctly estimate material needs and analyse production capability. The digital counter removes the inaccuracies of manual counting and aids lean production projects.
Specialized 90° Corner Labeling Technology
The applicator is built with corner applicator mechanisms for tamper-evident and security labelling applications. This specific feature allows to set the angles exactly at 90 degrees on the borders of the package, thus providing good sealing points, which will be broken if someone tries to open the package.
The corner label system gives an even pressure distribution when it is applied. This prohibits label lifting or flagging which would weaken security features. The machine is suitable for a variety of packing box materials with the preservation of label adherence on varying surface textures.
Multi-Product Flexibility and Rapid Changeover
The tool-free adjustment capability may be adapted to various flat product dimensions and is beneficial for production lines. Height and breadth are adjusted by hand-wheel controls in about five minutes, shortening the time needed to switch between manufacturing runs.
The variable tension control technology avoids label breaking on a range of stock materials. The equipment is compatible with paper-based and synthetic BOPP labels with a maximum label roll diameter of 300mm with no static accumulation or ripping problems.
Technical Specifications and Build Quality
| Parameter | Specification |
|---|---|
| Dimensions | 34cm × 21cm × 28cm |
| Labeling Speed | 20–50 pieces/minute |
| Positioning Accuracy | ±0.5mm – ±1mm |
| Control System | PLC Electric Control |
| Label Roll Capacity | Up to 300mm diameter |
| Frame Construction | 304 Stainless Steel & Anodized Aluminum |
| Motor Type | High-Torque Stepper/Servo Drive |
| Voltage Options | 110V / 220V / 380V |
| Service Life | 20 years |
| Warranty Period | 12 months with lifetime technical support |
The robust construction utilizes 304 stainless steel and anodized aluminum components. This material selection ensures durability in wash-down environments and resistance to chemical exposure common in pharmaceutical and food processing facilities.
Industrial Applications Across Demanding Sectors
This device is being used by pharmaceutical and nutraceutical producers for regulatory-compliant labelling of vials and supplement bottles. The exact placement guarantees that ingredient lists and batch IDs match tight positioning requirements for traceability audits.
Craft beverage companies and speciality food makers depend on the applicator to function in tough circumstances. The apparatus guarantees that labels adhere to containers with oily residues or condensation, which is important for handmade oil bottles and items kept in cold conditions.
The method is used by cosmetics firms for high aesthetic applications on tapering tubes and glass jars. The pressure distribution under control ensures that air bubbles and fingerprints are avoided on clear no-look labels, maintaining the premium brand presentation requirements.
Quality Assurance and Manufacturing
Shanghai Honghua's quality control system comprises repeatability testing in successive production cycles, so as to ensure the positioning variation is within the specification tolerance. Calibration of sensor sensitivity for accurate detection of a wide range of backing materials, including problematic clear-on-clear label stocks.
Testing of adhesive stability checks the functioning of the pressure roller and ensures homogeneous adhesive wet-out without harm to the face-stock. Motor thermal performance tests during continuous eight-hour running cycles verify torque stability and demonstrate long-term durability.
We have many manufacturing facilities throughout China to offer redundancy and shorter lead times. Southeast Asia equipment warehouses provide flexible FOB, CIF and DAP shipment options for smooth international logistics.
Professional After-Sales and Technical Support
Each Desktop Label Applicator is supplied with a full 12-month guarantee and lifetime technical support. Remote troubleshooting services save downtime, and the availability of replacement parts guarantees a fast maintenance response.
Installation assistance and on-site technical support speed up the integration of equipment into existing manufacturing processes. Technology transfer services enable the internal teams to create operational knowledge for ongoing performance improvement.
FAQ
Q: How well does the equipment work with clear labels?
A: Yes, the system uses ultrasonic gap sensors to measure the difference in density between labels and liner backing, therefore it can handle clear materials that are not reliably processed by optical sensors.
Q: What does the applicator do with tapered containers?
A: Advanced versions include adjustable tilt-angle plates and conical rollers to adapt for different container circumferences during application.
Q: What causes label flagging and how can I avoid it?
A: Results flagged due to not enough pressure on edge. Prevention entails wrap-station pressure adjustments and exact matching of dispensing speeds to container rotation speeds.
Q: Is it feasible to output batch code on application?
A: The product is compatible with hot-stamp coders and thermal transfer overprinters to print the lot number and expiry date when the label is applied.
Q: How long does the shift between product sizes take?
A: Tool-less hand-wheel changes often accomplish size changes in less than five minutes, maximising production flexibility for multi-SKU operations.
Contact Us
Discover how our Desktop Label Applicator enhances your packaging efficiency. Contact our technical team at [email protected] for detailed specifications and customized integration support.
