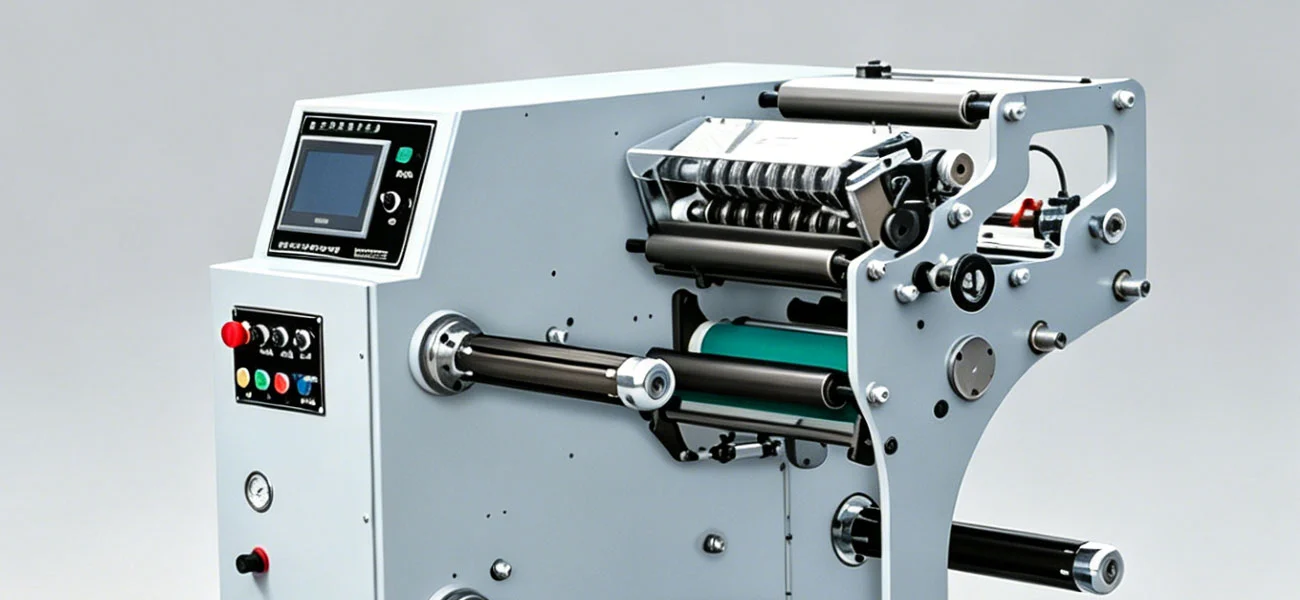

High Speed Label Slitting Machine
2、Features photoelectric deviation correction, automatic length counting, and automatic quantity counting.
3、Compact integrated construction delivers fast slitting, high productivity, and consistent cutting accuracy.
4、Intelligent PLC control with touchscreen operation makes the machine easy to use and highly reliable.
5、Various machine models are available to match different production capacities.
6、Slitting precision: ±0.10 mm.
7、Total machine weight: approximately 800 KG.
8、Designed for a 20-year lifespan with lifetime after-sales service support.
9、Multiple production factories throughout China provide fast delivery.
10、Southeast Asia equipment warehouses support convenient import and export worldwide.
High Speed Label Slitting Machine | Precision Industrial Slitting System with ±0.10mm Accuracy for Label Converting Applications
The High Speed Label Slitting Machine, a precision-engineered post-press conversion device intended for industrial label manufacturing, is produced by Shanghai Honghua Digital Equipment Co., Ltd. Our equipment offers slitting rates up to 200m/min and an extraordinary accuracy of ±0.10mm, thanks to clever PLC control and photoelectric deviation correction. This equipment has automated length counting, automatic quantity counting and touch screen operation. It has 20 years manufacturing experience behind it. Solid construction of approx. 800 KG weight, intended for 20 years operating life and supported by life time technical assistance and 12 months guarantee from our production sites in China and South East Asia.
Advanced Technical Specifications
Our product delivers enterprise-grade performance through precision engineering and industrial-grade components.
| Model | 320II / 350II | 450II |
|---|---|---|
| Slitting Speed | 200m/min | 200m/min |
| Max Roll Width | 320/350mm | 450mm |
| Max Unwinding Diameter | 650mm | 650mm |
| Max Rewinding Diameter | 500mm | 500mm |
| Slitting Accuracy | ±0.10mm | ±0.10mm |
| Total Power | 3kW | 3.7kW |
| Power Voltage | 220V/380V ±10% | 220V/380V ±10% |
| Overall Weight | 780kg | 880kg |
| Overall Dimension | 1100×1300×1100mm | 1100×1400×1100mm |
The compact integrated construction ensures consistent cutting accuracy while maintaining fast slitting speeds for enhanced productivity.
High Speed Label Slitting Machine: Intelligent Control System
Your manufacturing line demands intelligent automation. Our machine has a sophisticated PLC control system which is controlled by a simple-to-operate touch screen.
The photoelectric automated deviation correction system observes the location of the material as it is unwinding all the time. This method avoids edge-alignment mistake and also saves material while running at high speed.
Real-time manufacturing process monitoring with automatic counting of meters and pieces. The machine terminates at your chosen length automatically, minimising human interaction and assuring batch uniformity.
It has many voltage settings (110V, 220V, 380V) to satisfy the installation needs worldwide. The worldwide standard control architecture guarantees the compatibility to your current production infrastructure.
Precision Slitting Performance
Accuracy is quality in label conversion. High Speed Label Slitting Machine can achieve ±0.10mm slitting accuracy for all material kinds.
Precision-ground circular blades with crisp edges and no adhesive bleed. The machine’s solid structure reduces vibrations at working speeds and ensures dimensional stability during long production cycles.
Unwind system for master rolls up to 650mm diameter. The rewinding portion can handle completed rolls up to 500 mm. The machine can accommodate varied manufacturing batch sizes.
Flexible for varied label formats with maximum roll widths of 320 mm, 350 mm and 450 mm. This flexibility enables for the processing of numerous product lines without any equipment changeovers.
Industrial-Grade Construction
TCO is driven by durability. Our machine is built to last, it’s built to last 20 years.
The solid frame structure weighs between 780 and 880 kg depending on model configuration. Its heavy weight makes it more stable when you are going from fast to slow and vice versa.
Key components have many layers of security for export. Precision components are sent in fumigated solid wood containers and protected with shock-proof foam. Independent moisture-proof packing protects delicate electronic components during overseas transport.
Multiple manufacturing plants all around China provide for rapid delivery dates. We have Southeast Asia equipment warehouses for effective import logistics for worldwide clients.
Application Environments
Special equipment is needed to transform labels. This machine performs well in three main manufacturing situations.
Pharmaceutical Packaging Operations: Process ultra-clear labels to zero-tolerance requirements. The precision slitting technology doesn’t produce static and contamination and may be used to clear films.
Food & Beverage Production: High volume BOPP and pressure-sensitive label production supervision. Consistent tension management eliminates jams in continuous operation of high speed bottling plants.
Logistics & E-commerce Facilities: Process thermal labels and shipping stickers in high volume situations. The blade cooling technology avoids build up of adhesive, even with harsh adhesive compositions.
Complete Service Support
Your investment needs complete security. All mechanical and electrical parts are covered by a 12 month guarantee.
Technical assistance for life to guarantee operational dependability . We provide skilled remote help, on-site support and delivery of replacement parts over all the service life of your equipment.
The domestic customs clearance for the High Speed Label Slitting Machine will be completed in 1-3 business days. We provide competent paperwork help for customs procedures in the destination country to facilitate seamless international delivery.
Our technical services include installation advice, operator training and technology transfer activities. This complete assistance means you may achieve maximum production efficiency from day one.
FAQ
Q: How does this machine keep accuracy at fast speed?
A: Even at 200m/min the photo-electric deviation correction, PLC control and precision ground blades provide an accuracy of ±0.10mm. A rugged frame cushions vibrations that might impair cutting accuracy.
Q: Can the machine handle different material types?
A: Yes, the product can handle paper labels, BOPP films, PET materials and pressure-sensitive stocks. Adjustable tension control for materials from 12 micron up to heavy label stocks.
Q: How often do the blades need replacing?
A: Blade life is dependent on the abrasiveness of the material and the amount of output. For “normal” paper labels we propose examination every 100,000 m. The touchscreen panel shows production meters so that maintenance scheduling is simplified.
Q: Does the machine support non-stop production?
A: Automatic meter counting and preset stopping capabilities are useful for efficient batch manufacturing. Not a turret system, but the rapid setup time minimises the time between rolls.
Q: What choices are there for customising?
A: Yes, we can. We provide OEM and ODM services with hardware and software customisations to meet your specific needs.
Q: What is your method of sending the equipment internationally?
A: All units are sent in strong oak boxes with double layer foam protection. Independent packaging for precision components with moisture-proof. We provide FOB, CIF, DAP trading term with experienced logistics coordination.
Contact Us
Ready to enhance your label production efficiency with High Speed Label Slitting Machine? Contact our technical team at [email protected] to discuss your specific application requirements and receive detailed quotations.
