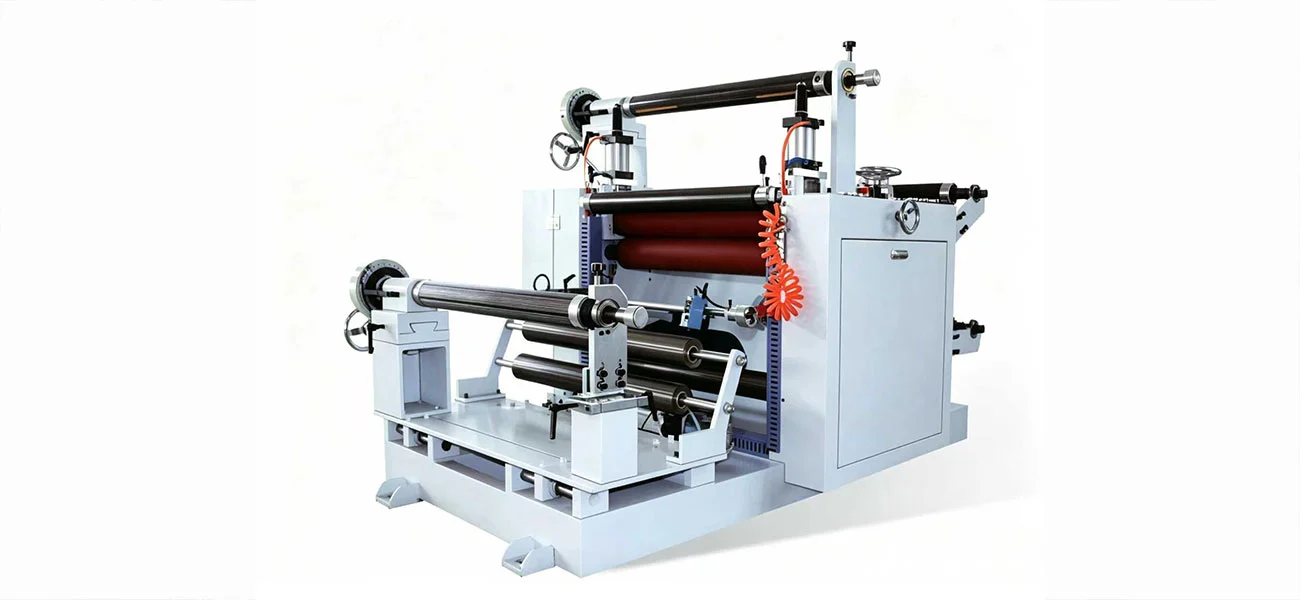

Laminating & Slitting Machine
2. Equipped with high-precision servo feeding system, together with photoelectric deviation correction and constant tension control system.
3. The whole machine adopts PLC touch screen intelligent control, supporting various process modes including single-layer slitting, slitting after double-layer lamination, multi-layer composite rewinding and so on.
4. The machine operates with low noise, delivers tidy rewound rolls and smooth burr-free slitting edges.
5. A variety of models are available for selection.
6. 20-year service life with lifelong after-sales service support.
7. Multiple production factories across China enable fast order delivery.
8. We have equipment warehouses in Southeast Asia to facilitate convenient import and export to various countries.
High-Precision Laminating & Slitting Machine for Industrial Converting Solutions
Shanghai Honghua Digital Equipment Co., Ltd. is a manufacturer of high performance Laminating & Slitting Machine systems, which are used for film laminating, accurate slitting and automated rewinding. The machine includes a servo feed, ±0.10mm slitting accuracy, photoelectric deviation correction and constant tension control, up to 100m/min. We have 20 years of manufacturing experience, 13 patents of technology and production bases in China and Southeast Asia, providing enterprise-level transformation solutions, with 12 months warranty and lifelong technical support. Our product is used for processing self-adhesive labels, protective films and electronic auxiliary materials with bubble-free lamination and burr-free edges on roll widths from 650 mm to 1300 mm.
What Makes Our Laminating & Slitting Machine Different?
Our integrated conversion method means no separate laminating and slitting equipment is required. The PLC touch screen operation provides you with full process control, lowering labour costs and increasing material output.
The machine has a number of modes of operation. You may execute the single-layer slitting, double-layer lamination and then slitting or multi-layer composite rewinding according to your manufacturing needs.
Precision tension control eliminates material stretching or wrinkling. A closed-loop constant tension system combined with a photo-electric deviation correction maintains uniform material alignment throughout the conversion process.
Technical Specifications & Configuration Options
Our Laminating & Slitting Machine is available in two standard configurations to match your production requirements:
| Specification | Model 650 | Model 1300 |
|---|---|---|
| Slitting Speed | 100m/min | 100m/min |
| Max Roll Width | 650mm | 1300mm |
| Max Unwinding Diameter | 600mm | 600mm |
| Max Laminating Roll Diameter | 300mm | 300mm |
| Max Rewinding Diameter | 450mm | 450mm |
| Slitting Accuracy | ±0.10mm | ±0.10mm |
| Total Power | 4.0kW | 5.0kW |
| Power Voltage | 220V/380V ±10% | 220V/380V ±10% |
| Overall Weight | 1000kg | 1800kg |
| Overall Dimension | 1800×1400×1300mm | 2900×2000×1300mm |
Both models accommodate 110V, 220V, and 380V configurations. We customize voltage specifications to meet regional electrical standards in your facility.
Core Operational Advantages
Your production line has integrated multi-process capacity that allows you to laminate, compound, slit and rewind materials in one pass. Consolidating equipment reduces the footprint and eliminates material transportation between units.
Lamination Quality: Bubble-free, wrinkle-free laminates with adjustable pressure roller technology and high-precision deviation correction. Your finished goods are equally stitched over the web.
Slitting Performance Tension control stabilises the slitting feeding of the material. The smooth cutting edges decrease material curling and waste.
Easy To Use: Width, speed and pressure controlled with touch screen controls, no training required. New employees may take hours to become productive at work.
Wide Material Range: Handle self-adhesive labels, protection films, release films, double-sided tapes, foam materials, and electronic auxiliary roll materials without significant changeover.
Industrial Applications & Use Cases
Flexible packaging: The Laminating & Slitting Machine generates multi-layer barrier films for food and pharma. Controlled lamination preserves the integrity of the material against contamination.
Label Manufacturing: Adhesive labels with precision diecutting and consistent width tolerances. Equipment for effective handling of paper & film labelstocks.
The system handles protection films, release liners and adhesive tapes for the manufacture of electrical parts. Clean cutting edges reduce contamination in sensitive assembly scenarios.
Industrial Tape Conversion Cut master rolls of double-sided tape, foam tape and speciality adhesives to packaging and distribution lengths.
Quality Assurance & Manufacturing Standards
There are strict quality controls in our production procedure. Each machine is checked for slitting accuracy and tension control and lamination before shipping.
We have manufacturing facilities in South China, East China and Southeast Asia. It’s a distributed manufacturing network that ensures quality and delivery no matter the size of the order.
All equipment use international PLC control system. These components are interoperable worldwide and they function with production management systems.
Service Life & Long-Term Support
If you take care of it properly, your investment will last for 20 years of operation. We create equipment for permanent industrial operation with exchangeable worn parts and servicing sites accessible from outside.
Our lifetime technical support service offers you lifelong help across the equipment lifespan. Remote diagnostics, replacement parts supply and maintenance instructions are available anytime you need them.
A 12-month warranty is provided for manufacturing faults and component failures. Our support staff is always ready to answer technical questions and help you find solutions that reduce production downtime.
Global Logistics & Delivery
We handle international shipments on FOB, CIF and DAP trading terms. We send your equipment from Shanghai or Ningbo ports in expert export packing to preserve precise components throughout transport.
Our export packing is fumigated solid hardwood box with double layer shockproof foam protection. Important parts such as servo motors and control systems are packed separately in moisture-proof packaging.
Domestic customs clearance usually takes 1-3 business days. We provide full paperwork assistance and cooperate with your goods forwarder to guarantee hassle free overseas delivery.
FAQ
Q: How does the machine avoid material curling after lamination?
A: Each unwind shaft is equipped with its own tension control, including a cooling roller system. That stabilises the materials prior to the slitting . It also adjusts for the thermal expansion variations that induce curling .
Q: What kind of blades do you provide for slitting?
A: Depending on the properties of the material, the machine may be assembled with tungsten carbide or high-speed steel blades. Blade holders allow for both razor-in-air and shear cutting of various thicknesses of material.
Q: How is the slitting accuracy maintained at high speed operation?
A: The photoelectric deviation correction system constantly monitors the location of the material and makes corrections in real time. This active control ensures ±0.10mm precision even if the material to be processed has uneven edges.
Q: Does the machine work on static sensitive materials?
A: Yes. Ionising bars may be installed at important stages in the process, to neutralise static charges. This property is important in processing of films and cassettes in controlled conditions.
Q: What maintenance is required for optimal performance?
A: Routine maintenance comprises examination and replacement of blades according to the production volume, calibration of the tension system and cleaning of rollers. Each installation is accompanied by precise maintenance plans and procedures.
Q: How fast can you provide equipment?
A: We have various manufacturing facilities allowing us to meet orders quickly. Standard configurations normally ship in 4-6 weeks. We also have equipment warehouses in Southeast Asia for easy regional shipment.
