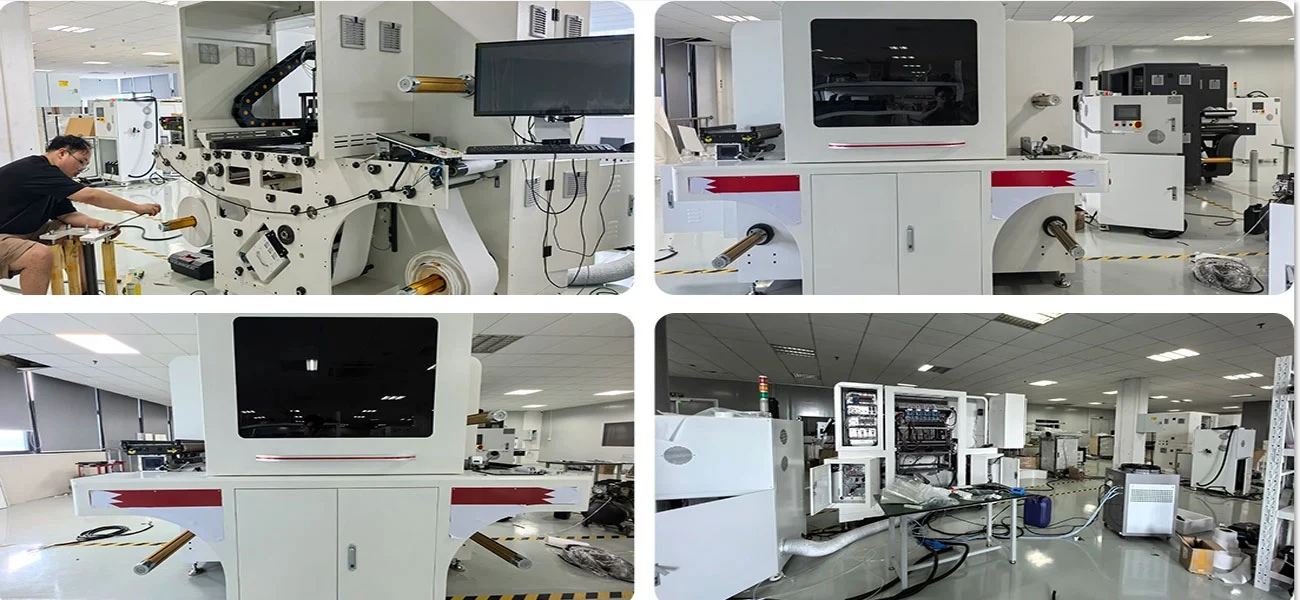

Digital Roll Label Printer

High-Performance Digital Roll Label Printer – Plate-Free Intelligent Solution for Flexible Short-Run Production

​Shanghai Honghua Digital Equipment Co., Ltd. offers its sophisticated Digital Roll Label Printer, a plate-free, high-speed intelligent printing system intended for self-adhesive labels, stickers, trademarks, and color roll label manufacturing.  This industrial-grade system offers a strong machine size of 2m × 1.5m × 1.9m, weighs 1500 KG, and runs on 20 kW power with AC 380V supply.  The combined LED + traditional dual curing technology guarantees constant output across varied surfaces.  With a maximum printing width of 322 mm, CMYK four-color capabilities, and repeat positioning precision of 0.005 mm, this device removes conventional plate-making procedures while allowing flexible production for many SKUs, urgent orders, and variable data printing needs.  Designed for a 20-year service life with lifelong technical support, our equipment blends ink circuit design with ultra-high-precision machined components.

Advanced Plate-Free Printing Technology

Traditional flexographic and offset printing technologies involve expensive plate fabrication, extensive setup periods, and cause substantial material waste during registration.  Our device overcomes these important pain points by leveraging innovative piezoelectric inkjet technology that transfers digital files straight to continuous roll-fed media.

This plate-free solution drastically decreases setup costs for short-to-medium production runs.  You may switch between tasks instantaneously without incurring plate charges or waiting for exposure procedures.

The technology provides front-and-back secondary printing with arbitrary color overprinting capabilities.  Whether you're generating craft beer labels with large SKU numbers or pharmaceutical packaging needing serialized 2D barcodes, our technology offers the agility contemporary businesses require.

Exceptional Print Quality and Precision

Print quality determines label effectiveness.  Our equipment produces native resolutions appropriate for photographic-quality graphics while retaining color consistency across manufacturing batches.

Sophisticated tension control mechanisms and precise web guides provide 0.005 mm repeat placement accuracy from the integrated printing equipment. This guarantees that registration is precise to tight tolerances over the full roll length, especially when printing complicated multi-layer patterns.

Our full-circuit ink temperature management technology begins at the main ink cartridges and goes all the way through to ensure  printing performance in any season. The innovative ink circuit architecture provides vacation mode activation in just 1 minute by power-off and protects your investment during non-production times.

Delta E readings below 2.0 across multiple batches combine to provide colour constancy that matches professional standards. With a broad colour gamut offering roughly 90% Pantone coverage, spot colours are unnecessary, making inventory easier and creativity more expansive.

Digital Roll Label Printer: Production Versatility and Material Flexibility

Production versatility is determined by material flexibility. This Digital Roll Label Printer supports feed material width 75 mm to 350 mm, material thickness 0.02 mm to 1 mm.

It can handle a variety of substrates including BOPP, PE, PET, silver film and textured paper. Our dual curing technology (LED + conventional) guarantees optimum ink adherence and endurance whether you’re printing on ordinary off-the-shelf materials or speciality films.

The maximum unwinding and rewinding roll diameter is 800 mm, allowing for long production runs without frequent material changes. TIFF, PDF & other industry-standard file formats are accepted for easy integration into your workflow.

70-85% opacity from high-pigment white channels allow for single-pass printing – a prerequisite for applications on transparent or metallic films where substrate show-through has to be eliminated.

Technical Specifications Overview

Intelligent Protection Systems

The dependability of equipment directly influences the efficiency of manufacturing. Our exclusive slit LED technology has zero light leaking design to avoid printhead clogging during prolonged operation.

Automatic foreign object identification combined with sophisticated printhead protection ensures that these vital components are protected from harm. With adequate filtering and automated cleaning methods, industrial piezo printheads may last 5-7 years.

The base plate is ultra high precision machined and repeatedly heat treated for permanent deformation . With our patented splicing process, your label designs will print seamlessly without any obvious joining lines, ensuring visual consistency every time.

The printing method has a multi-stage negative pressure design for consistent material management. This removes the substrate flutter allowing the critical media placement for true colour registration and die-cutting registration.

Industrial Application Scenarios

Short-run capabilities allow craft beverage companies to develop seasonal and limited-edition goods. Organic food companies use variable data printing to monitor batches and regional marketing differences.

Pharmaceutical and nutraceutical producers use the technique to print high-density micro-text and serialised codes on medical films. It assures regulatory compliance but also enables anti-counterfeiting monitoring throughout distribution channels.

Industrial and chemical label applications demand durable enough to survive in adverse situations. Labels generated by our method are chemically resistant, oil resistant, UV resistant and typically satisfy the BS5609 Section 3 durability criteria for marine transportation.

Quality Control and Inspection

Professional quality assurance. Your Digital Roll Label Printer fulfils international requirements. The colour consistency monitoring is based on spectrophotometer measurements to keep the Delta E values below 2.0 along the manufacturing batches.

The ASTM D3359 Cross-Hatch Tape Test measures the ink adhesion to verify good bonding to synthetic surfaces. Barcode verifiability testing verifies that the barcode scans at ANSI/ISO Grade A or B to support dependable logistical operations.

Rub Tests (Sutherland) are used for testing rub resistance to transfer friction. Continuous optical sensor monitoring minimises registration drift between CMYK channels and die-cutting markings to ensure completed labels fit dimensional requirements.

Integration and Workflow Efficiency

Equipment compatibility is a must in modern production scenarios. Our technology may be integrated in-line or near-line with existing finishing equipment such as semi-rotary die-cutters and UV varnish stations.

Digital timing markers provide accurate synchronisation with downstream operations. Free print job changeovers minimise the 15-20% material waste of conventional printing as well as the cost of producing plates.

For less than 3,000 meters of runs, the economic benefits are significant. Although ink cost per millilitre is greater than flexographic alternatives, overall project cost is reduced owing to eliminating setup waste and plate charges.

Manufacturing and Support Infrastructure

Shanghai Honghua Digital Equipment has many production bases in South China, East China and Southeast Asia . This spread of manufacturing capability enables rapid order processing and timely service assistance.

Southeast Asia Warehousing Centers provide fast import and export services around the globe. With a lifetime of technical assistance for peace of mind, we provide a 12-month warranty giving you coverage for the whole 20-year planned service life of your equipment.

Professional export packing in fumigated solid hardwood box with multi-layer shockproof foam protection. All precision parts, such as inkjet print heads and servo motors, are individually packaged for moisture-proof protection, ensuring safe international transit.

FAQ

Q: What is the effect of ink costs on ROI compared to flexographic printing?

A: Though it costs more per millilitre of ink, it reduces material waste by 15-20% and removes 100% of plate expenses. For runs under 3,000 meters, the overall job profitability is better than conventional approaches.

Q: Does the technology print on regular surfaces without extra coatings?

A: UV inkjet models print directly on most off-the-shelf materials. Depending on the substrate type, aqueous-based systems may need digital primers or inkjet responsive coatings.

Q: What is the life expectancy of the printhead?

A: Industrial piezo printheads have an average lifespan of 5-7 years with adequate filtration and automatic cleaning maintenance based on duty cycle and operating circumstances.

Q: How does the system achieve white ink opacity on clear films?

A: High pigment white channels provide 70-85% opacity in one pass printing and the coverage required for transparent or metallic film applications.

Q: Will this equipment fit into our current finishing line?

A: Yes, the system can match the digital timing marks for near-line or in-line compatibility with semi-rotary die-cutters and UV varnish stations.

Q: What maintenance intervals does the equipment require?

A: During operation, automated cleaning cycles operate. Routine maintenance comprises filter changes and calibration verification based on your production volume and environmental factors.
