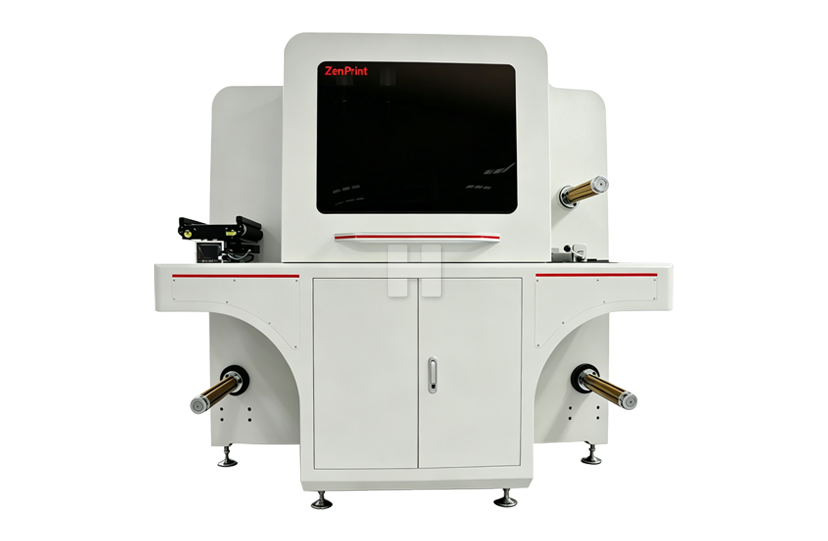

UV Printer
2、Developed for self-adhesive labels, stickers, trademarks, color printed rolls and similar applications.
3、Eliminates plate opening and exposure, transforming traditional printing methods by lowering costs, improving flexibility and meeting the growing demand for customized, short-run and fast-turnaround printing.
4、Machine dimensions: 2m × 1.5m × 1.9m
5、Machine weight: 1500 KG
6、Curing method: LED + traditional dual curing system
7、Built with a 20-year service life and comprehensive lifetime after-sales support.
8、Multiple production bases across China ensure fast manufacturing and delivery.
9、Southeast Asian warehouses enable efficient international logistics and export services.

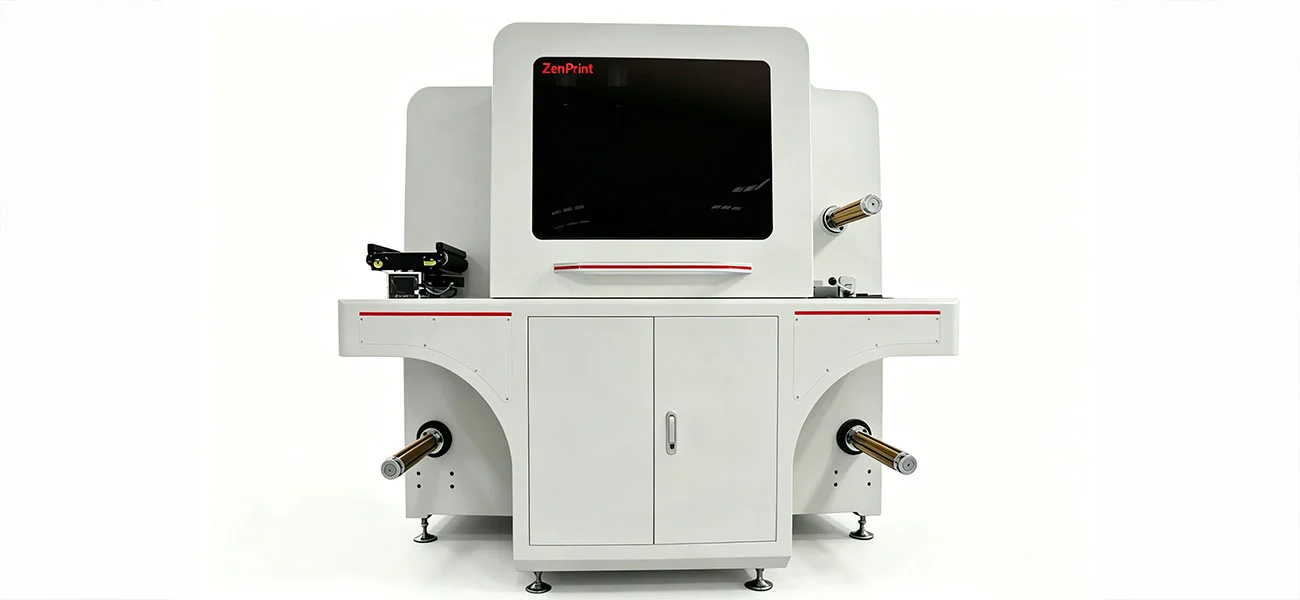

UV Printer | Industrial Digital Printing Equipment | High-Speed Plate-Free Production Solution
Shanghai Honghua Digital Equipment Co., Ltd. announces its high-speed intelligent UV Printer, sans plate. The industrial-grade digital printing machine is built for a 20-year service life and measures 2m × 1.5m × 1.9m, weighing 1500 KG. Dual LED + Conventional curing technique for performance on self-adhesive labels, stickers, trademarks and colour printed rolls. This technology eliminates the expense of plate opening and exposures and meets the growing need for customised and short-run manufacturing with a repeat positioning precision of 0.005mm and lifetime after-sales servicing.
Advanced Curing Technology for Performance
The dual curing process polymerises immediately using LED and UV. Photochemical techniques address production challenges like as drying times and VOC emissions.
LED-UV curing produces less heat at appropriate wavelengths (365nm/395nm) and has a lifespan of over 20,000 hours. This energy efficient technology allows you to print heat sensitive materials without warping or distortion.
The revolutionary LED slit technology minimises printer clogging during long-term operation, with minimum loss of light. Multi-stage negative pressure systems and full-circuit ink temperature control from main cartridges provide year-round output.
Precision Engineering for Industrial Applications
The UV Printer equipment is made with ultrahigh precision machined base plate and numerous heat treatments to guarantee lasting non-deformation. Integrated printing unit repeat positioning accuracy is 0.005mm, which is necessary for multi-layer colour registration.
Maximum width of 322 mm may be printed flawlessly utilising splicing process. Various droplet sizes and 2880 DPI are provided by industrial-grade piezoelectric printheads.
Automatic foreign object recognition and smart printhead protection keep your investment safe during unattended operation. The high precision vacuum suction platform can hold 0.02–1 mm thick materials for diverse substrates.
Flexible Production Capabilities
The CMYK four-color technology allows front and rear secondary printing with arbitrary colour overprinting. Feed material widths are 75 to 350 mm; unwinding/rewinding rollers are 800 mm.
The machine is powered by 20 kW AC 380V. It uses 0.6–0.8 MPa industrial air. Input in TIFF, PDF and industry-standard formats.
The revolutionary ink circuit design turns on vacation mode within 1 minute of power down, protecting your machine during production stops. Its intelligent design minimises maintenance and extends the life of the component.
Technical Specifications Overview
| Parameter | Specification |
|---|---|
| Overall Dimensions | 2m × 1.5m × 1.9m |
| Machine Weight | 1500 kg |
| Operating Power | 20 kW |
| Power Supply | AC 380V |
| Air Supply | 0.6–0.8 MPa |
| Input Formats | TIFF, PDF |
| Curing Method | LED + Conventional |
| Feed Width | 75 mm – 350 mm |
| Max Roll Diameter | 800 mm |
| Material Thickness | 0.02 – 1 mm |
| Max Printing Width | 322 mm |
| Printing Colors | CMYK |
| Positioning Accuracy | 0.005 mm |
UV Printer Manufacturing and Support
Shanghai Honghua UV Printer embodies 20 years of manufacturing expertise with 13 technical patents and 20+ certifications. Many South China, East China and Southeast Asia industrial locations provide rapid production and delivery.
The warranty is 12 months, with lifetime technical assistance. Expert service experts are ready to provide remote, installation and on-site assistance throughout the life of your equipment.
SE Asian warehousing provides worldwide logistics via sea, air, rail and speedy dispatch. Packed in fumigated wooden case and multi-layer shockproof foam for safe worldwide shipment.
Diverse Industrial Applications
In industrial applications, the process labels control panels, membrane switches and circuit boards for chemical resistance and thermal stability.
Architectural décor and signage projects benefit from quality texture printing on glass, acrylic partitions and ceramic tiles. Output resistant to UV and humidity for outdoor or harsh indoor settings.
It is used for direct-to-object printing on cylindrical containers, luxury cosmetics packaging and promotional items. 3D embossed tactile sensations provide brand value in competitive retail.
Quality Control Standards
Four key elements underpin our quality assurance. The ISO 2409 cross-cut tape test is used to determine the bond strength of the ink to withstand mechanical stress.
MEK rub tests demonstrate entire ink film polymerisation during cure. To remove banding and ensure multi-layer registration, motion precision evaluation examines X/Y axis mechanical tolerance.
Use spectrophotometers to monitor monitor colour consistency to maintain Delta E < 2.0 between production batches. The brand colours are constant, no matter the substrate type.
FAQ
Q: Why do I need white ink circulation?
A: White ink has hefty titanium dioxide particles that need to be constantly circulated to avoid settling and printhead clogging.
Q: Do you print on any substrate?
A: While very versatile, certain surfaces such as glass or metal need specific UV primer pre-coating to achieve maximum adhesion integrity.
Q: How does LED-UV curing compare to mercury vapor lamps?
A: LED-UV offers energy efficiency, reduced heat for temperature-sensitive goods, and longer lifetime of more than 20,000 hours.
Q: What kind of maintenance does the system require?
A: The printhead faceplates are cleaned daily at the capping station and nozzles are checked daily to avoid leftover ink from being cured by ambient light.
Q: What is the outdoor durability?
A: High quality output usually offers 2-3 years of lightfastness without lamination, depending on pigment quality and environmental exposure circumstances.
Contact Us
Ready to transform your production capabilities with UV Printer? Contact our technical team at [email protected] to discuss your specific application requirements and receive tailored equipment configurations.
