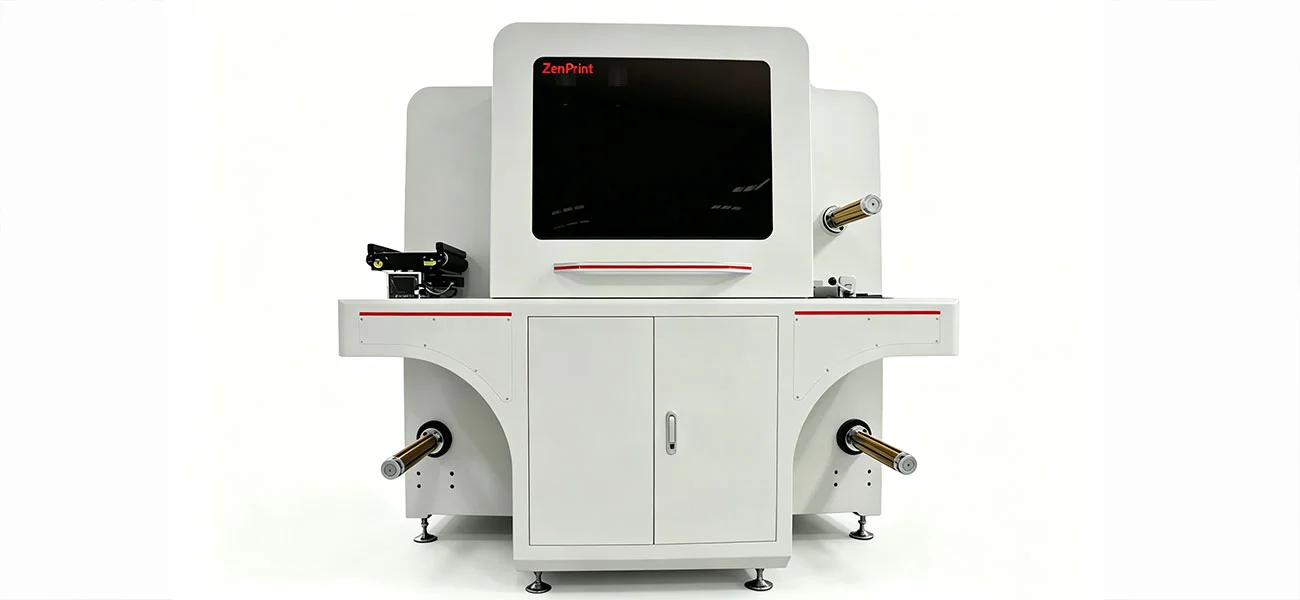

High-speed Digital Printing Machine

High-Speed Digital Printing Machine | Professional Plate-Free Label & Roll Printing Solution with LED+Traditional Dual Curing System

Shanghai Honghua Digital Equipment Co., Ltd. is proud to introduce our innovative High-speed Digital Printing Machine, the intelligent plate-free printing solution, designed for label producers looking for flexible production. This industrial-grade system is built to last with a solid 1500 KG build and a small size of 2m × 1.5m × 1.9m. The equipment is powered by an AC 380V power source at 20 kW and has a revolutionary LED+traditional dual curing method for ink adherence on various surfaces. With print width capacity up to 322 mm and CMYK four-color capabilities, this machine removes conventional plate making while retaining repeat positioning precision of 0.005 mm, making it fit for self-adhesive labels, brand tags and colour roll printing applications.

What Makes Our High-speed Digital Printing Machine Technology Revolutionary?

Traditional printing technologies need time-consuming plate preparation and exposure. Our device changes this paradigm by allowing direct digital to substrate printing for runs under 3,000 linear meters.

You get the cost benefits immediately. The technology takes TIFF and PDF files directly, with no plate charges. Set waste decreases to near zero levels during task changeovers. Your team may swap projects in minutes, not hours.

Dual curing design delivers LED accuracy with proven traditional curing dependability. This hybrid technology can process materials from 0.02mm to 1mm thickness and is capable of processing difficult substrates that single curing systems are not able to handle reliably.

Core Technical Specifications

Precision Engineering That Delivers Consistent Results

Even if you make a lot of things, the print quality stays the same. The extreme precision machined base plate is heat treated many times, assuring non distortion for decades of operation.

Seamless Splicing Technology No Visible Seams Patented No registration mistakes can be printed on continuous patterns across material joints. The integrated print unit offers 0.005 mm positioning precision, tighter than the industry norm for front-to-back and color-to-color registration.

The High-speed Digital Printing Machine incorporates a multi-stage negative pressure design to reduce substrate flutter while feeding at high speed; this is combined with a full-circuit ink temperature control beginning from the main cartridges, guaranteeing output independent of the environmental circumstances. Delta E < 2.0 colour constancy via seasonal temperature changes will keep your prints looking great.

Intelligent Protection Systems Minimize Downtime

Active monitoring of the print route for automatic foreign item identification. If the system detects possible risks, intelligent printhead protection kicks in instantly to avoid expensive damage.

A revolutionary ink circuit design incorporates a vacation mode function. All you have to do is shut off the machine and the safety procedures will engage in 60 seconds. Keep your printheads in  condition for long shutdowns – no human intervention needed.

Exclusive slit LED technology, prevents light leaking. This avoids premature curing of the ink which causes the printhead to clog during operation. You should expect fewer maintenance interruptions and reduced consumable expenses during the 20-year service life of the machine.

Front-and-Back Secondary Printing Capability

Complex label applications generally demand multi layer printing with exact colour registration. Our method offers arbitrary colour overprinting and front-and-back secondary printing.

This is especially useful for applications such as security labelling, medicinal packaging and luxury brands.” You may add changeable data, serial numbers or QR codes on the reverse surfaces without removing material from the manufacturing line.

The innovative ink circuit and temperature control technology will provide consistent adherence on both runs of printing. Your completed goods pass the ISO 2409 cross-hatch tape test and can survive rigorous finishing procedures like UV treatment and laminating.

Operational Flexibility for Short-Run Production

Modern markets want personalised content and localised packaging. Our High-speed Digital Printing Machine meets this change by allowing affordable manufacturing of customised, small-lot and multi-version orders.

From single unit samples to big scale manufacturing runs, we can take orders. The system is suitable for input material widths from 75mm to 350mm and unwinding/rewinding capabilities for rolls with a maximum diameter of 800mm.

Variable data printing (VDP) is doing well, and that is due to high-performance digital front-end processing. The machine is able to keep up with production pace, overcoming the data bottleneck problems that rival systems struggle with even with complicated files with large amounts of variable parts.

Global Manufacturing and Support Infrastructure

Shanghai Honghua has production sites across China, and is able to provide efficient manufacturing capacity for urgent requirements. Our facilities in Southeast Asia provide our international clients easy worldwide shipping and shorter lead times.

All machines are delivered in standard fumigated solid hardwood cabinets with multi-layer shock-proof foam cushioning. Moisture-proof packaging is used for precision parts like as printheads and servo motors. Domestic customs clearance usually takes 1-3 working days to complete.

12-month warranty with lifetime technical support. Our skilled service staff offers remote support, on-site help and replacement parts delivery over the whole life of your equipment. We support this dedication with continual training and technical consultancy services.

FAQ

Q: How does the operational cost compare to conventional offset printing for our average run lengths?

A: Digital printing has a reduced total cost of ownership for runs less than 3,000-5,000 linear meters. Ink prices per litre are higher than offset inks, but you save on plates, cut setup waste substantially and need fewer workers. The break-even threshold varies on your work mix, however most label converters find digital more cheap below 2,000 meters.

Q: How often should the printhead be maintained?

A: In our technology, industrial piezoelectric print heads usually last 2-5 years in continuous operation with adequate maintenance. Integrated cleaning stations automate normal everyday maintenance. The vacation mode function protects heads when shutdowns occur. Adhering to our maintenance plan provides optimal longevity and consistent print quality.

Q: Can your equipment be used on uncoated paper stocks?

A: Yes. The technique is designed to work very well with coated media but it is possible to work with non-coated substrates by modifying ink density and curing settings. For difficult materials we propose our optional inline priming unit which prepares the surface immediately so that pigment inks sit correctly rather than over-absorb.

Q: How do you keep colour consistent throughout lengthy cycles of production?

A: The entire circuit temperature control system that maintains ink viscosity within narrow limitations. Multi-stage negative pressure keeps the substrate tension stable, avoiding banding or deformation. For these crucial applications you may add spectrophotometer monitoring to make sure you are meeting G7 or Fogra requirements throughout production.

Q: What environmental certifications do your inks have?

A: The ink providers we suggest offer water-based formulas that have been approved to UL ECOLOGO and GREENGUARD Gold standards. Such certifications make guarantee that the indoor air quality standards for production facilities are followed and that they may be used in food-indirect packaging applications.

Contact Us

Ready to transform your label production with High-speed Digital Printing Machine? Contact our technical team at [email protected] for detailed specifications, customization options, and pricing tailored to your production requirements.
