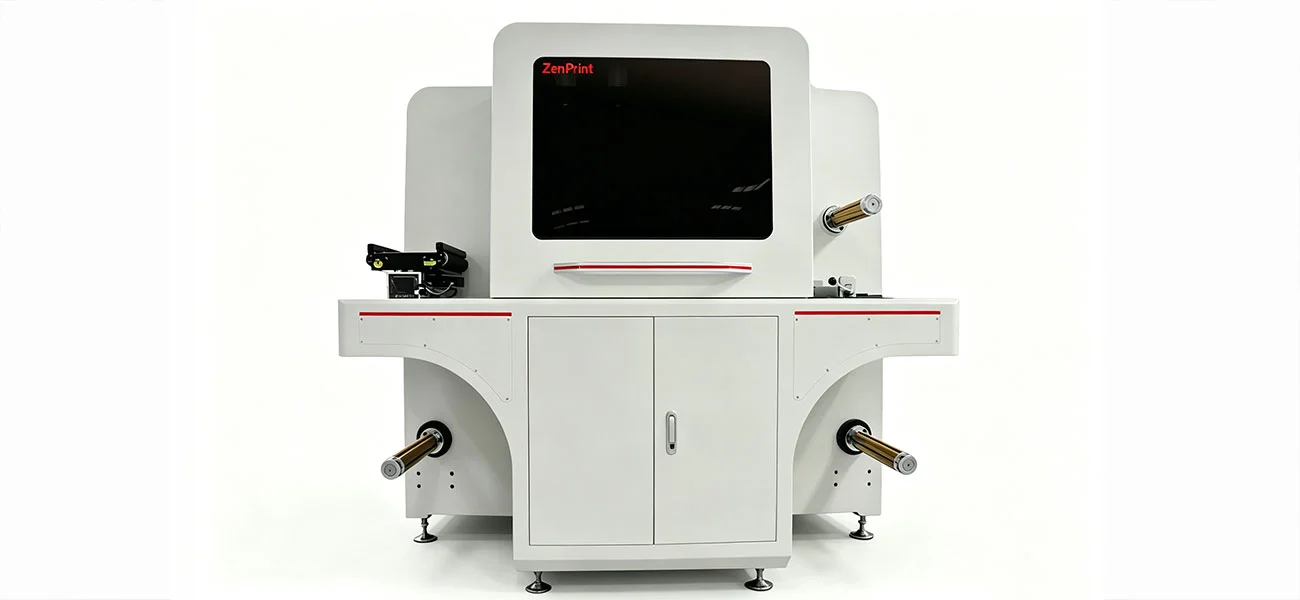

Roll to Roll Digital Label Printing Machine
2、Optimized for self-adhesive labels, trademarks, stickers, color roll labels and similar printed materials.
3、Completely eliminates conventional plate-making and exposure processes, reducing production expenses while supporting fast, flexible and customized printing for multiple product variants.
4、Machine dimensions: 2m × 1.5m × 1.9m
5、Machine weight: 1500 KG
6、Curing method: LED + traditional dual curing system
7、Built to operate for up to 20 years with lifetime after-sales support.
8、Multiple factories located throughout China ensure quick production schedules.
9、Regional warehouses in Southeast Asia simplify global import and export operations.
High-Performance Roll to Roll Digital Label Printing Machine for Variable Data & Short-Run Label Production
Shanghai Honghua Digital Equipment Co.,Ltd is a professional Roll to Roll Digital Label Printing Machine, can create high speed plate free labels. The LED+dual cure system is rated for 20 years of use. Its small footprint (2m x 1.5m x 1.9m) and weight of 1500kg provide repeat positioning accuracy of 0.005mm with a maximum printing width of 322mm. This industrial solution replaces the plate-making procedures for self-adhesive labels, trademarks and colour roll materials with a thickness of 0.02 to 1 mm, allowing quick job changes and variable data printing at full production speed.
What Is a Roll to Roll Digital Label Printing Machine?
An advanced industrial system for the continuous processing of label substrates from unwind to rewind via digital imaging. This machine prints without plates, UV-inkjet or aqueous inkjet, not flexography or offset.
It addresses key production challenges. Short-to-medium runs are economical, no plate investment. Material waste falls dramatically in setup. Shorter lead times due to non-manufacture of plate.
It’s great for printing variable data. Each label may incorporate serial numbers, bar codes and images without slowing production. Flexibility meets the increasing need for more frequent SKU changes and custom packaging.
Core Technical Specifications
| Parameter | Value |
|---|---|
| Overall Dimensions | 2m × 1.5m × 1.9m |
| Machine Weight | 1500 kg |
| Operating Power | 20 kW |
| Power Supply | AC 380V |
| Air Supply | 0.6–0.8 MPa |
| Input File Formats | TIFF, PDF, etc. |
| Curing Method | LED + conventional curing |
| Feed Material Width | 75 mm – 350 mm |
| Unwinding/Rewinding Diameter | Max. 800 mm |
| Material Thickness | 0.02 – 1 mm |
| Max. Printing Width | 322 mm |
| Printing Colors | CMYK four-color |
Key Performance Advantages

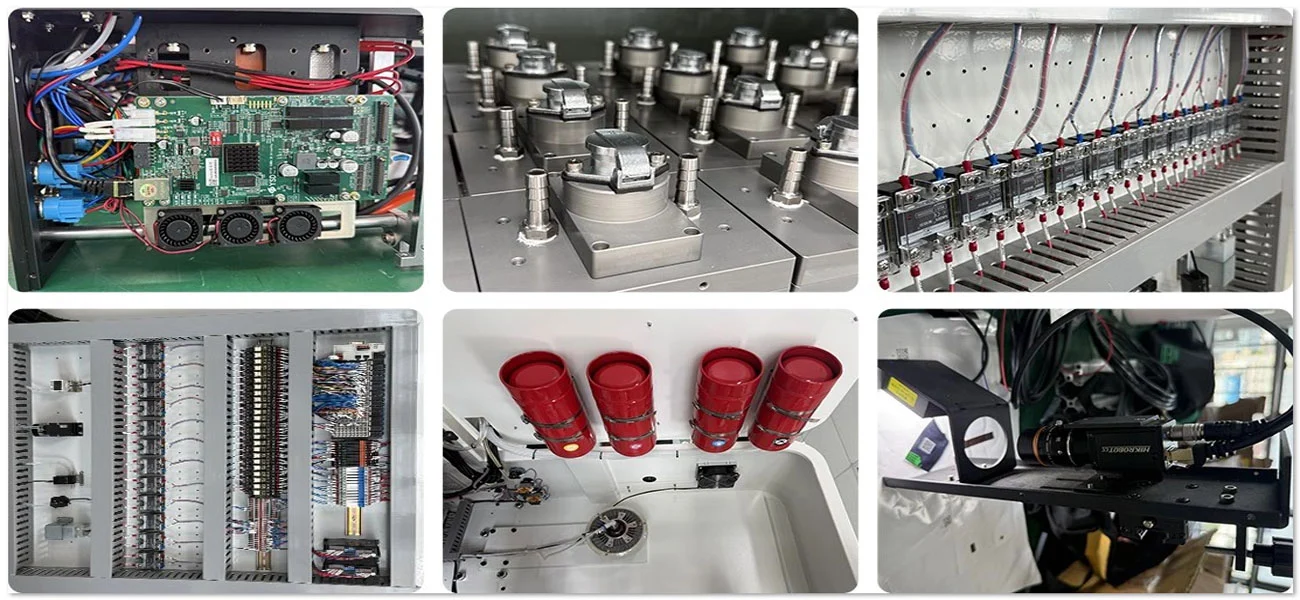

Precision Engineering
The integrated print unit has a repeat placement precision of 0.005mm. A number of heat treatments are performed on an ultrahigh quality machined base plate to avoid irreversible deformation. The exclusive splicing process guarantees flawless printing over the full roll.
Smart Ink Management
Holiday mode, enabled by a proprietary ink circuit architecture, may be turned on and off simply by powering off within a minute. The main cartridges trigger the complete circuit ink temperature control system for output with constant viscosity all year round.
Advanced Curing Technology
Exclusive slit LED technology ensures minimal light loss, eliminating printhead clogging during prolonged operation. This two-stage curing technology provides ink adherence on various surfaces by means of LED and conventional techniques.
Automatic Protection Systems.
Automatic foreign object identification protects printheads throughout manufacturing. Multi-stage negative pressure design to avoid ink accumulation and web stability.
Flexible Overprint Capability
Roll to Roll Digital Label Printing Machine enables front and rear secondary printing, arbitrary colour overprint, expands creative options for complicated label designs.
Diverse Application Scenarios
Pharmaceutical Packaging
You may manufacture small-batch, high-regulation labels with micro-text readability, serialised QR codes for track-and-trace compliance. It satisfies rigorous pharmaceutical requirements, yet also leaves room for manufacturing flexibility.
Food & Craft Beverage Labels
Moisture-resistant labels with aesthetics are a boon to craft brewers and gourmet food makers. It controls refrigerator condensation and transport abrasion so your brand presence is vivid all the way through the supply chain.
Industrial and Chemical Labelings
This machine generates durable chemical resistant labels to BS5609 specifications for immersion in saltwater, for use with GHS compatible applications. Safety warnings are still readable in harsh outdoor or industrial conditions when standard labels fail.
Consumer Products & Retail
Fast moving consumer items with frequent design changes get competitive advantage. You may run seasonal discounts, trial market designs or cater to regional tastes without wasting inventory.
Roll to Roll Digital Label Printing Machine Quality Control Standards
Color Consistency
Inline spectrophotometers track delta E values for colour accuracy over whole rolls. This ensures brand continuity from the first label to the last.
Testing of Ink Adhesion
Cross-hatch tape tests (ASTM D3359) demonstrate correct adhesion to synthetic substrates. This avoids label failure during application or under end use circumstances.
Registration Accuracy
Any deviation in multi-color alignment or die-cut synchronisation is detected by high speed vision systems. Automated changes are made during manufacturing runs to ensure ±0.05 mm registration.
UV Cure Confirmation
Confirmation of 100% monomer conversion is provided by chemical resistance and thumb-rub tests. This eliminates ink migration or tackiness — important for food-safe packaging compliance.
Manufacturing and Support Infrastructure
Shanghai Honghua Digital Equipment Co., Ltd. has production bases in South China, East China and Southeast Asia. It allows for rapid production schedules and dependable delivery.
With 20 years of production expertise and 13 technological patents, we give full technical support. We provide installation instructions, remote support and on-site servicing for the whole life-cycle of your equipment.
Global logistics made easy with regional warehouses. We support FOB, CIF, DAP trading term, flexible shipment by sea, air, train or express. Export packaging of precision components. Professional packing. Fumigated hardwood containers with multi-layer shockproof protection.
All Roll to Roll Digital Label Printing Machine equipment is supported by a 12-month warranty and lifetime technical support. Generally, it takes 1-3 working days for domestic customs clearance.
FAQ
Q1. What is the maintenance procedure for this machine?
A: Requires daily automatic printhead cleaning and weekly checks of the ink filter. Store in a temperature controlled atmosphere of 20-25°C with 40-60% humidity to keep ink viscosity and performance constant.
Q2: Can it print on any substrate?
A: Many filmic substrates, although adaptable, need a digital primer or corona treatment to get the requisite dyne level for optimum ink receptivity. Paper-based materials often do not need any preparation.
Q3: How does the cost per label compare to flexography?
A: Digital printing is more cost-effective for runs under 2,000 meters owing to the absence of plate expenses and less setup waste. Flexo is only viable at big quantities if plate amortisation compensates material waste
Q4: Is it possible to output variable data using the system?
A: Yes, the RIP software processes serial numbers, barcodes and pictures for all labels at maximum production speed. This makes personalisation and versioning an absolute cinch.
Q5: What is the anticipated life of printhead?
A: Depending on ink type and maintenance practices, industrial grade printheads may last 2-5 years before needing to be replaced if you want to retain 100% nozzle integrity and print quality.
