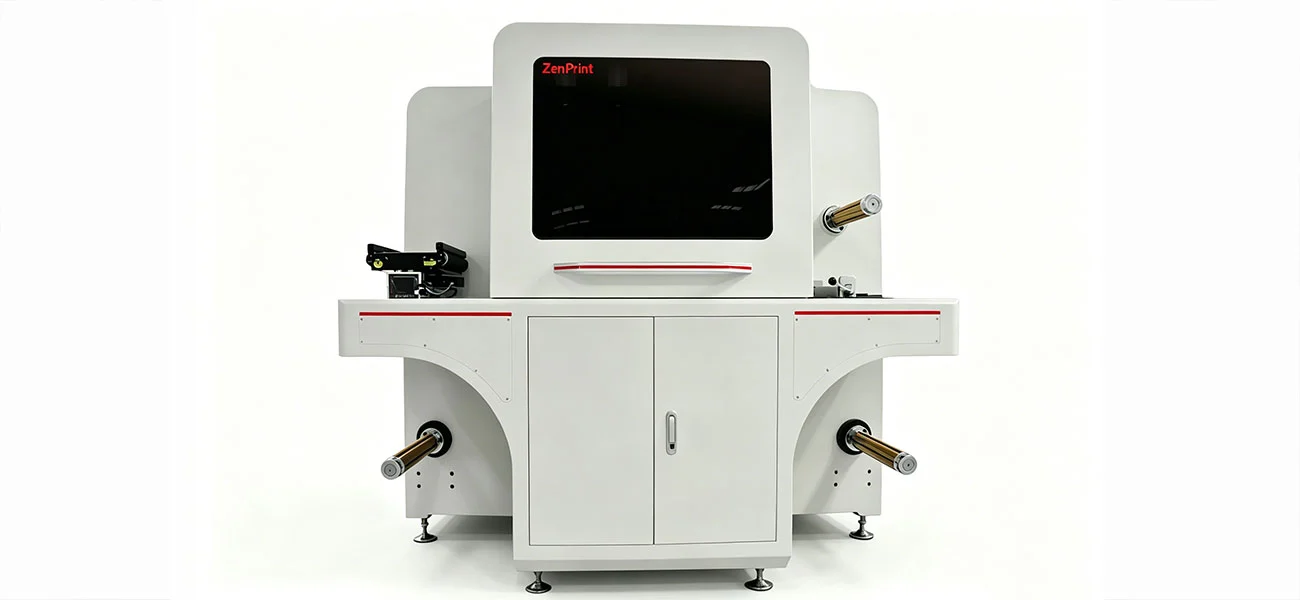

Inkjet Digital Printing Machine
2、Designed for printing self-adhesive labels, stickers, trademarks, color labels and roll products.
3、No plate fabrication or exposure is required, replacing traditional printing methods and reducing cost, improving flexibility and accelerating delivery for customized short-run production.
4、Machine dimensions: 2m × 1.5m × 1.9m
5、Machine weight: 1500 KG
6、Curing method: LED + conventional dual curing system
7、Offers a 20-year design life with lifelong after-sales assistance.
8、Distributed production factories across China provide fast delivery capability.
9、Southeast Asian warehouse network supports efficient cross-border logistics.
High-Performance Inkjet Digital Printing Machine for Industrial Label Production | Plate-Free UV Curing System
Shanghai Honghua Digital Equipment Co., Ltd. creates a plateless, high-speed Inkjet Digital Printing Machine for self-adhesive labels and colour trademarks. This industrial-grade gear is stored in a solid 2m by 1.5m by 1.9m frame and can produce precise CMYK printing at widths of up to 322 mm. It weighs in at 1500 kg. The machine has a 20 kW dual LED + conventional curing mechanism and provides smooth output for custom short-run applications with a repeat positioning accuracy of 0.005 mm. The 20-year design life and distributed production sites in China and Southeast Asia reduce startup costs and delays in plate manufacture.
What Is an Inkjet Digital Printing Machine?
What we do is non-impact industrial output technology, meaning we employ piezoelectric printheads to spray microscopic droplets of ink on surfaces. It does not need physical plates as in offset or flexographic techniques. This approach prints digital data directly without chemical plate-making.
Traditional approaches include high set up costs for small quantities and changeable data printing difficulties. It addresses such problems by allowing on-demand manufacturing. Manufacturers save waste and accelerate turnover.
Core Technical Specifications
| Parameter | Value |
|---|---|
| Overall Dimensions | 2m × 1.5m × 1.9m |
| Machine Weight | 1500 kg |
| Operating Power | 20 kW |
| Power Supply | AC 380V |
| Air Supply Pressure | 0.6–0.8 MPa |
| Curing Method | LED + Conventional Dual System |
| Feed Material Width | 75 mm–350 mm |
| Max. Roll Diameter | 800 mm (Unwinding/Rewinding) |
| Material Thickness Range | 0.02–1 mm |
| Max. Printing Width | 322 mm |
| Printing Colors | CMYK Four-Color |
| Input File Formats | TIFF, PDF |
Advanced Engineering Features
Precision Mechanical Architecture
The base plate is ultra-high-precision machined and then heat treated many times to ensure permanent non-deformation. With our revolutionary splicing technique, there are no visible splices on the print area, even when running continuously.
Repeat placement precision is 0.005mm which is much beyond the industry norms for label manufacture. This integrated printing equipment is capable of front-and-back secondary printing with any colour overprinting.
Intelligent Printhead Protection
Running at high speed, automatic foreign object identification protects printheads from physical harm. The special slit LED technology ensures no light leakage and prevents clogging of nozzles due to premature curing of ink.
The Inkjet Digital Printing Machine with patented ink circuit design initiates vacation mode in less than 1 minute with easy power-off processes. This function keeps the ink pure during production stops, eliminating the need for manual purging.
Temperature Control - Complete Circuit
A multi-stage negative pressure design ensures a constant viscosity of ink throughout the system. Temperature control begins from primary ink cartridges and goes on at every distribution channel.
This regulation, active all year round, guarantees a fit output independent of seasonal variations in ambient temperature. No drop-volume fluctuation problems, no misdirected jets, etc.
Industrial Application Scenarios
Flexible Packaging Production
High speed printing on non-porous films such as BOPP, PE and PET need food safe low migration inks. The equipment maintains grip while packaging at varied temperatures.
Manufacturing of Self Adhesive Labels
Print roll materials with colour labels, stickers and logos without changing plates. Paper, film and synthetics on 0.02-1mm substrates.
Technical Textiles Decoration
Complex designs of natural and synthetic fibres need advanced control of ink penetration. The process is breathable and washfast in the humid textile mills.
Quality Assurance Standards
Verifying Output Fidelity
AOI is always monitoring the health of the nozzle to avoid banding. Spectrophotometers use Delta E (ΔE) values to minimise colour difference within industry norms.
Durability and Adhesion Tests
Ink Bonding on Hard-to-Bond Substrates Cross-hatch tape (ASTM D3359) and Sutherland Rub testing. UV light intensity measurements ensure complete polymerisation at defined mJ/cm² levels.
Certificates of Compliance
We produce to RoHS, REACH and GREENGUARD Gold compliant standards. VOC emissions are far lower than solvent-based analogue systems.
Economic Advantages Over Traditional Methods
Plate-less operation reduces fabrication and exposure costs. Switching jobs takes minutes, not hours.
Inkjet Digital Printing Machines are more economical on a cost-per-print basis than offset systems for runs under 3,000 meters. save setup sheets and colour matching trials to cut down on substrate waste.
Variable data printing ( VDP ) enables customised labels without tooling . You speed up the introduction of products and promotions.
Installation and Environmental Requirements
The reliability of the pneumatic system is provided by the standard industrial air supply at 0.6–0.8 MPa. AC 380V addresses the needs of global industrial infrastructure.
Its 2m by 1.5m dimension allows the factory floor to be used efficiently. 1500 kg reinforced flooring load-bearing capacity certification necessary prior to installation.
Service and Support Commitment
Shanghai Honghua Digital Equipment guarantees mechanical and electrical parts for 12 months. “Remote diagnostics and on-site life support.
From our manufacturing centers in South China, East China and Southeast Asia, spare parts are sent rapidly. For precise parts, professional export packaging using fumigated wood containers and multi-layer shockproof protection.
FAQ
Q: How does the system avoid nozzle blockage in lengthy production runs?
A: Automated cleaning stations and continuous ink recirculation suspend particles and prevent the consumption of air. Slit LED technique prevents early curing in the print head.
Q: How many years can I anticipate the printhead to last?
A: Industrial piezoelectric heads last 2 to 5 years with proper maintenance and frequent filtering. Actual lifespan is dependent on the ink chemistry and operation circumstances.
Q: Can the machine print on non-coated substrates?
A: Yeah. Untreated materials need surface energy modification to wet and adhere ink properly . This is done by inline primer application or corona treatment .
Q: What kind of files does the system support?
A. TIFF and PDF are the most common formats and are supported by most design applications and RIP procedures in label manufacturing settings.
Q: How rapidly can operators swap around between label designs?
A: You can change jobs in minutes using a digital file-based operation. No plate mountings, no press modifications, that hinder production change.
Contact Us
Ready to transform your label production with Inkjet Digital Printing Machine? Contact our technical team at [email protected] to discuss your specific printing requirements and receive a tailored solution proposal.
