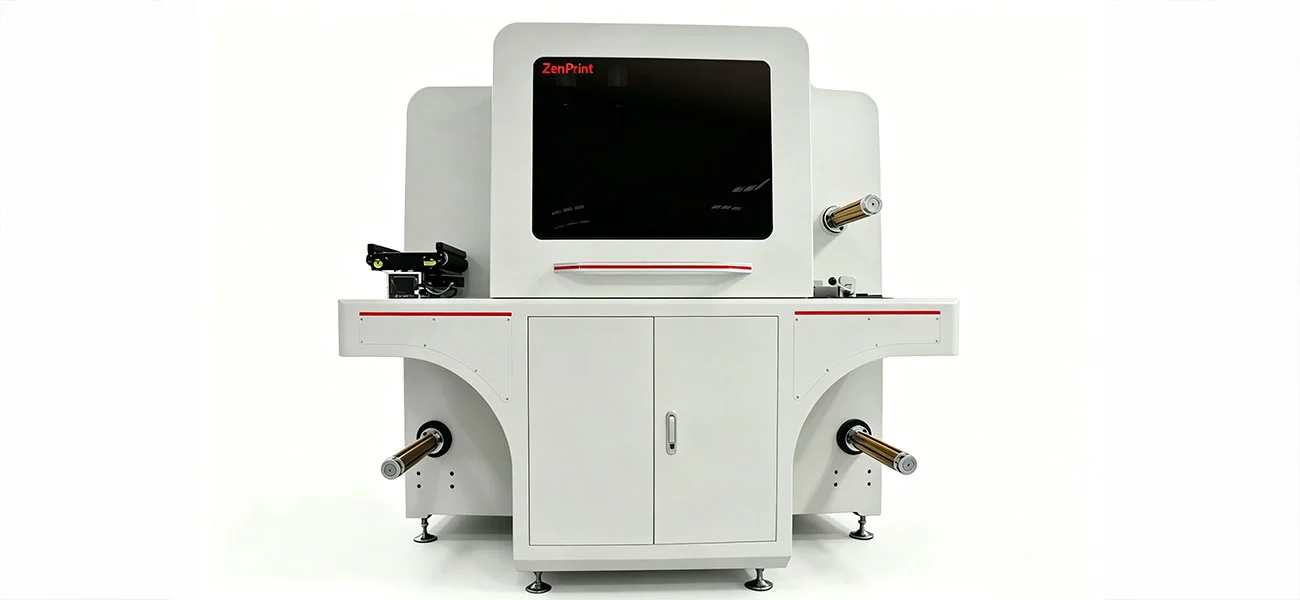

Inkjet Label Press
2、Applicable to self-adhesive labels, brand labels, stickers, color printed rolls and similar printing jobs.
3、No printing plates or exposure are required, helping users lower production costs, reduce lead times and efficiently handle customized, multi-version and small-volume printing orders.
4、Machine dimensions: 2m × 1.5m × 1.9m
5、Machine weight: 1500 KG
6、Curing method: LED + conventional dual curing system
7、Provides a 20-year operational life with lifelong after-sales support.

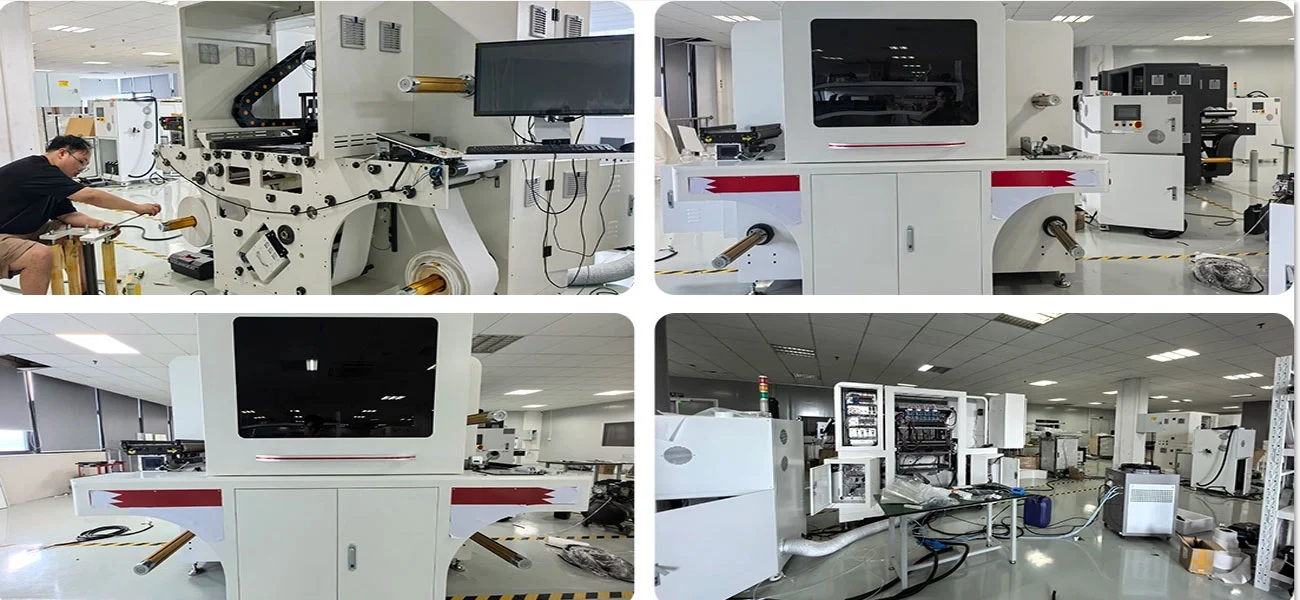

8、Several production facilities across China guarantee fast order processing.
9、Warehousing resources in Southeast Asia ensure convenient international distribution.
High-Speed Inkjet Label Press for Flexible Digital Label Production | Plate-Free UV Curing Solution
Shanghai Honghua Digital Equipment Co., Ltd. offers an Inkjet Label Press for converters looking to produce high-precision labels without plates. This industrial system spans 2m × 1.5m × 1.9m and weighs 1500kg with a dual LED + traditional curing mechanism to provide brilliant and lasting output. An integrated print unit with innovative ink circuit design and 0.005mm repeat placement precision saves makeready waste and cuts setup times from hours to minutes. It operates on AC 380V, with power consumption of 20 kW. Compatible substrate width is 75 mm to 350 mm, roll diameter - up to 800 mm, and material thickness 0.02-1 mm for self-adhesive labels, brand tags and color-printed rolls.
Advanced UV Inkjet Technology for Precision Label Conversion
Our digital printing system uses piezoelectric drop-on-demand technology that deposits micro-fine CMYK ink drops directly on a variety of surfaces without the need of physical plates. The ultra-high-precision machined base plate is subjected to various heat treatments to assure permanent non-deformation, and the revolutionary splicing method enables smooth printing throughout the whole 322 mm width.
An innovative slit LED curing technology minimises light leaking, safeguarding the printheads throughout continuous operation. With automatic foreign object recognition and clever printhead protection methods, your investment is safeguarded. The full-circuit ink temperature control from the main ink cartridges supports year-round production cycles by providing constant viscosity and eliminating satellite drips or banding.
Versatile Substrate Compatibility & Multi-Material Performance
This Inkjet Label Press is suitable for use on film, paper and synthetic surfaces 0.02 mm to 1mm thick. The multi-staged negative pressure construction delivers accurate registration on transparent films, metallized materials and low-surface-energy polypropylene stocks.
Corona treatment or inline priming alternatives improve adherence on difficult surfaces. The printer takes TIFF and PDF input formats and provides changeable data printing for SKU proliferation, batch tracking and personalised packaging applications. The option of random colour overprinting on the front and back in the secondary printing widens the creative possibilities for luxury labels and multi-layer structures.
Cost-Efficient Short-to-Medium Run Production
Skipping plate-making and chemical processing minimises total cost of ownership for runs up to 5,000 meters. Within 1 minute after power down, the proprietary vacation mode is activated to save ink during downtime.
Converters have the advantage of being able to produce just-in-time, to be quick to answer to brand-owners’ needs for various versions and customised orders. It cuts substrate waste by 90% from conventional flexography, immediately enhancing profit margins and enabling faster delivery schedules for time-sensitive campaigns.
Technical Specifications Overview
| Parameter | Value |
|---|---|
| Overall Dimensions | 2m × 1.5m × 1.9m |
| Machine Weight | 1500 kg |
| Operating Power | 20 kW |
| Power Supply | AC 380V |
| Air Supply | 0.6–0.8 MPa |
| Input Formats | TIFF, PDF |
| Curing Method | LED + conventional curing |
| Feed Material Width | 75–350 mm |
| Max. Roll Diameter | 800 mm |
| Material Thickness | 0.02–1 mm |
| Max. Printing Width | 322 mm |
| Printing Colors | CMYK (four-color) |
| Positioning Accuracy | 0.005 mm |
Robust Quality Assurance & Compliance Standards
Nozzle health monitoring systems can detect and adjust for dead pixels in real-time, and automated vision inspection can provide 100 percent web scanning to discover registration problems or flaws in real-time. The dual curing technique guarantees full polymerisation and meets the rub resistance and adhesion specifications of FINAT FTM 21.
Low-migration UV ink formulations meet FDA food-contact rules and Swiss Ordinance requirements for pharmaceutical and food packaging applications. Colour management with Delta E keeps variation under 2.0, providing batch-to-batch consistency that meets ISO 12647-2 colour accuracy requirements for brand-critical labels.
Global Support & Logistics Infrastructure
Your Inkjet Label Press from Shanghai Honghua is covered by 12 months warranty and lifetime technical support. Multiple production plants across China provide quick turnaround on orders and Southeast Asian warehouse resources facilitate worldwide delivery.
Professional export packing is made of fumigated solid wood containers with multi-layer foam protection for precise components. We operate with FOB, CIF and DAP trade terms and we can have the customs paperwork done within 1-3 business days. Sea freight, air transport and express alternatives guarantee flexible logistics adapted to your project timing.
Inkjet Label Press Packaging & Delivery Standards
Equipment is sent in fumigated wood boxes with moisture-proof wrapping for servo motors and printhead assemblies separately. During international shipping all precise components are secured with multi-layer shock resistant foam. We will supply full customs clearance papers and destination country import support to help speed up your installation timetable.
FAQ
Q： How do you avoid nozzle clogging during long production runs?
A: Ink recirculation and temperature control enclosures, automated cleaning cycles keep viscosity at its optimum. Our innovative ink circuit design minimises pigment sedimentation and our vacation mode function protects printheads during short disruptions.
Q： Will this press run normal flexo substrates?
A: Yes, the technology prints well on untreated materials. Optional inline corona treatment or priming units may be installed for high-speed applications on low-energy films to boost ink adherence to pass FINAT FTM 1 tape testing.
Q: What is the printhead life?
A: With adequate daily maintenance and automatic cleaning, industrial piezo printheads will last for 3-5 years of trouble-free operation. Real lifespan relies on ink flow volume, quality of filtering and ambient conditions.
Q: How does ink cost compare to traditional flexography?
A: Ink cost per litre is higher than flexo inks but total cost of ownership is much lowered by eliminating plate expenditures, reducing chemical processing and up to 90% waste reduction during setup and changeovers.
Q: Are UV inks safe for food packaging applications?
A: Low-migration UV inks may fulfil the Nestlé Guidance Note and Swiss Ordinance criteria when properly cured. We suggest migration testing validation for some food-contact applications to guarantee regulatory compliance.
Q: Is the ink flexible enough to break on tiny diameter vials?
A: Modern UV compositions include elongational qualities that will keep flexibility after curing. this reduces breaking if labels correspond to tight-mandrel medicinal vials or curved cosmetic containers.
Contact Us
Ready to transform your label production with Inkjet Label Press? Reach our technical team at [email protected] to discuss voltage configurations, workflow integration, and application-specific solutions tailored to your substrate requirements.
