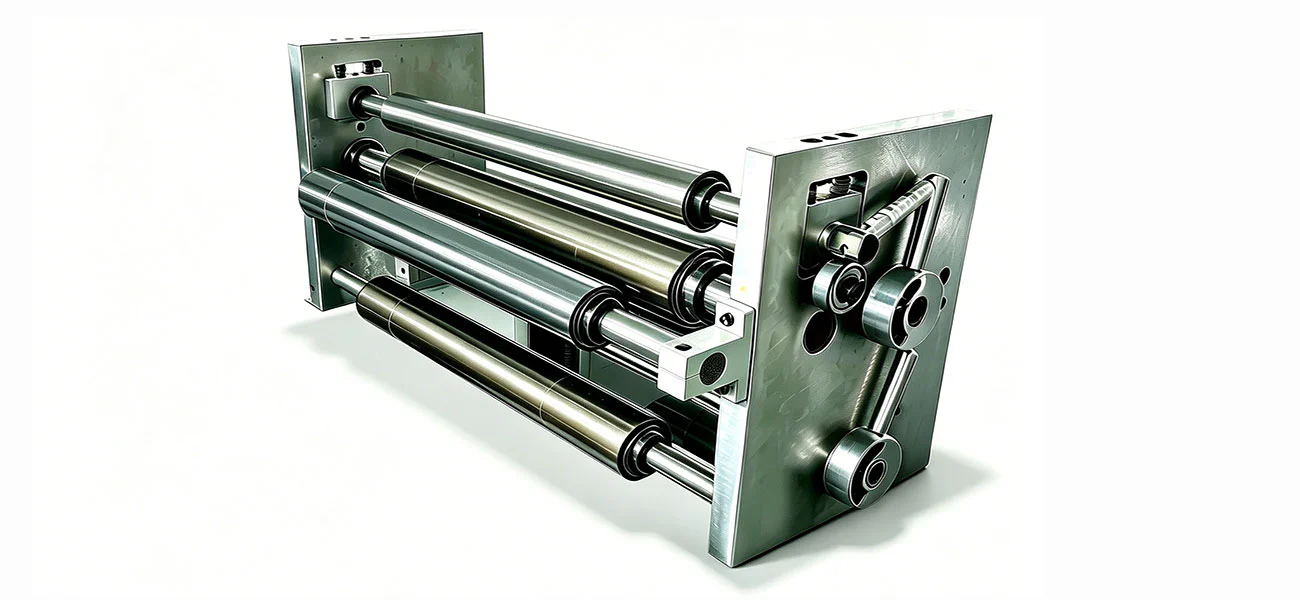

Label Mover
2、It uses precise label shifting and secondary laminating technology to solve substrate breakage, unstable labeling, and extra-large label peeling issues.
3、Compatible with printing, slitting, and die-cutting machines, or can operate as a standalone unit.
4、Available in 520 × 200 mm and 460 × 200 mm sizes with a compact 50 kg design for easy installation and operation.
5、Designed for a 20-year service life with lifetime after-sales service support.
6、Multiple production factories across China ensure fast delivery.
Southeast Asia warehouses support efficient global import and export.
High-Speed Label Mover System | Patented Label Shifting Solution for Self-Adhesive Production Lines
Shanghai Honghua Digital Equipment Co., Ltd.’s own Label Mover technology solves a major bottleneck in self-adhesive label manufacturing. The demanding equipment solves problems with base paper breaks, label jams and failed peel of big format labels utilising label shifting and secondary laminating technology. The gadget weighs just 50kg and measures 520×200mm or 460×200mm and is easy to incorporate into existing print, slit and die-cutting lines. Patent No. 202011096147.7 and built for a 20-year use period, this technology represents a milestone for label makers seeking reliable and high-throughput labelling automation.
Why Label Manufacturers Choose Our Label Mover Technology?
Traditional self-adhesive label manufacturing has problems that interrupt production and reduce productivity. We overcome three primary problems using patented engineering.
Weakened base paper due to deep die-cut marks during automated labelling. Prevention of base paper breakage. The method eliminates labels from die-cut lines, minimising stress and maintaining substrate integrity throughout the production process.
Pressure-sensitive adhesive bleeding into die-cut gaps causes label jams and sticks. And our secondary lamination technique spreads excess adhesive evenly throughout the liner surface - even at high speeds - so labels flow smoothly.
Peel Strength Optimisation Large size labels with aggressive adhesives cannot be run on standard labelling equipment. Precision control secondary lamination reduces peel force by 60% and allows automated insertion of larger labels.
Technical Specifications & Equipment Parameters
| Parameter | Specification |
|---|---|
| Equipment Dimensions | 520×200mm / 460×200mm |
| Equipment Weight | 50kg |
| Installation Method | Mounted on label inspectors and slitting machines |
| Patent Number | 202011096147.7 |
| Service Life | 20 years |
| Operational Mode | Standalone or integrated with production lines |
| Voltage Options | 110V / 220V / 380V (customizable) |
| Control System | International standard PLC |
| Warranty Coverage | 12 months |
| After-Sales Support | Lifetime technical assistance |
Core Advantages of Our Patented Label Mover System
The Label Mover is the only patented method of label shifting for self-adhesive industrial settings. Independent R&D ensures innovation and long-term technical support that generic equipment vendors cannot provide.
Servo controlled shift mechanisms allow accurate label positioning within ±0.1mm, guaranteeing correct offset from the die-cut marks, independent of label size or production speed.
Adaptive Lamination Control: Real-time pressure monitoring modified lamination force by adhesive type, substrate thickness and environment. This intelligent system optimises peel performance for all label settings.
Compact Integration The 50kg compact weight design may be included in inspection and slitting equipment without structural adjustments. Installation takes as little as two hours, saving production downtime.
Universal Compatibility: Works with UV inkjet, flexographic, rotary die-cutters and digital printing processes. The device manufactures labels of 100mm-500mm at 120m/min.
Application Scenarios for Industrial Label Production
Pharmaceutical labelling in high volumes: Bottles, blister packs and cartons need accurate labelling. Our invention avoids defects in high speed manufacturing lines where cracking of base paper would contaminate sterile environments.
Food and Beverage Container Labelling: For refrigerated products, labels that are resistant to condensation need strong adhesives that are generally beyond peeling constraints. The technology optimises peel strength for automatic labelling of curved PET and glass containers.
Electronics Manufacturing Labels: Electronics warranty seals, identification stickers and tracking labels must be applied accurately without damaging the substrate. The product is laminated with precision to prevent adhesive migration from harming crucial circuits.
This aids the management of high-tack shipping labels on reused transport containers — a problem that leads to labels accumulating, blocking barcode readers in automated sorting facilities.
Quality Assurance & Manufacturing
We have factories in South China, East China and Southeast Asia to provide speedy delivery and localised service. Each Label Mover is subject to full quality control:
- Laser Measuring Systems – Precision Alignment Audits guarantees the positioning accuracy of ±0.05mm.
- Duty Cycle Mechanical reliability tested by experimental stress testing. Continuous Operation for 1,000 hours to
- Testing over 50 label materials for substrate compatibility: PET, BOPP, thermal sheets.
- Adhesive Performance Analysis: FTIR - No Residue Transfer When Shifting Labels.
We are innovators and we follow the worldwide standards of manufacturing having 13 technological patents and over 20 international certifications.
Installation & Integration Support

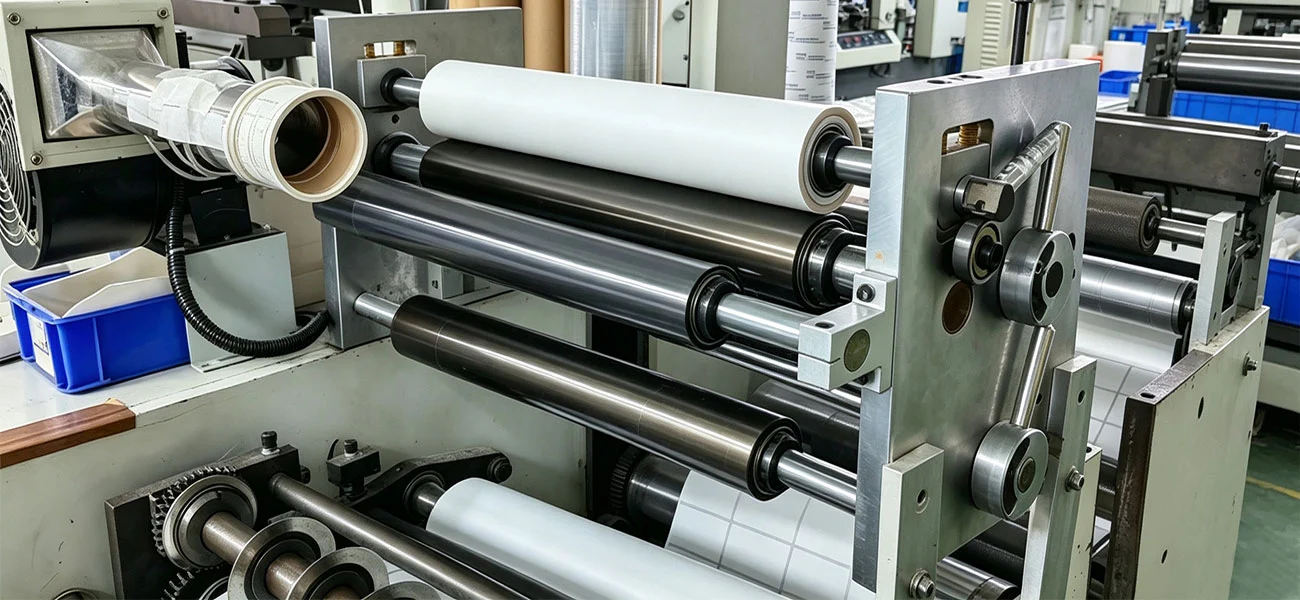

The product may be installed between the die-cutting and inspection stations without having to reconfigure the manufacturing line. Our technicians provide:
- Remote consultation for pre-installation planning
- CAD drawings detailed for production of mounting bracket.
- Commissioning support on-site (optional)
- Training Operators in Routine Maintenance and Troubleshooting
- Personal criteria for label specifications
Standard installation kits contain mounting hardware, PLC integration cables with instructions in a variety of languages.
Global Logistics & Trade Capabilities
We send internationally via many flexible channels:
Products are supplied in fumigated hardwood boxes with foam in many layers for print heads and servo motors. Precision components are protected in moisture-proof packing for sea freight.
Trade Terms FOB Shanghai/Ningbo, CIF, DAP For various taste. Customers may choose goods forwarders.
Customs Efficiency: Domestic export paperwork cleared in 1-3 days. We give full commercial invoices, packing lists and origin certificates to help with destination country clearance.
Southeast Asian warehouses shorten stock configuration lead times to 5-7 working days in ASEAN markets.
FAQ
Q: Is the product compatible with UV cured adhesives in digital label printing?
A: Yes, the system’s adjustable lamination pressure and roller surfaces are compatible with UV-curable, solvent-based and water-based adhesives typically used in digital printing processes.
Q: What is the typical setup time when switching between different label sizes?
A: Tool free width adjustments in less than 5 minutes using servo controlled guides Up to 50 distinct label requirements are stored in pre-programmed recipes with optimum settings.
Q: Is special maintenance required for the equipment?
A: Maintenance is quite standard. We clean the rollers weekly and verify the alignment sensors periodically. With your purchase we provide detailed maintenance plans and video lessons.
Q: How does the product affect overall production speed?
A: No bottlenecks and the system runs at line speeds of up to 120 m/min. In most applications, the prevention of clogs and breakage actually enhances effective throughput by 15-25% .
Q: Can this product be used for small batch bespoke label production?
A: Definitely. The system is inexpensive for runs as little as 500 linear meters, thanks to quick-change equipment and minimum setup needs, and supports both high-volume and bespoke label processes.
Contact Uss
Ready to eliminate labeling defects and boost production efficiency? Our engineering team is available to discuss your specific requirements and provide tailored Label Mover configurations.
