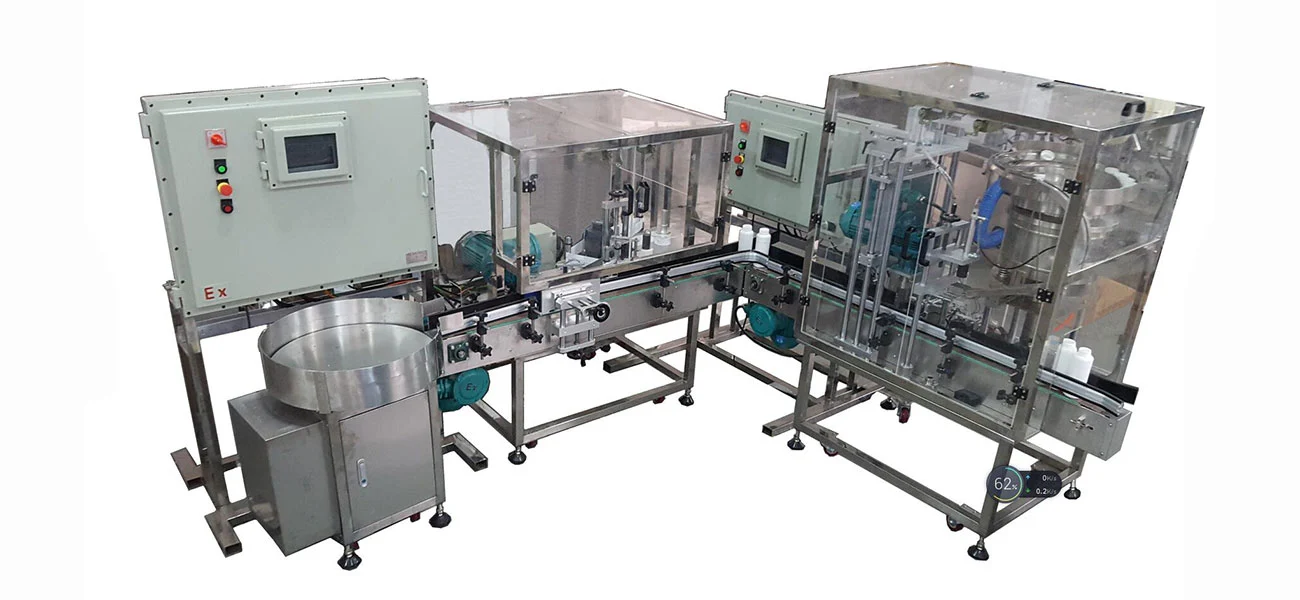

Automatic Round Bottle Labeling Machine
2. The whole machine is constructed of stainless steel and aluminum alloy, rust-proof and compliant with GMP standards.
3. Integrated functions including bottle centering, bottle separating, labeling, label smoothing and counting.
4. The labeling position can be adjusted conveniently.
5. Compatible with conveyor belts for inline production line operation.
6. Custom special models are available upon customers’ requirements.
7. 20-year service life with lifelong after-sales service support.
8. Multiple production factories across China enable fast order delivery.
9. Equipment warehouses are set up in Southeast Asia to facilitate easy import and export to various countries.
High-Speed Automatic Round Bottle Labeling Machine for Pharmaceutical and Beverage Production Lines
Shanghai Honghua Digital Equipment Co., Ltd. is a producer of the JT-510 Automatic Round Bottle Labeling Machine, an enterprise-level packaging system for very accurate labelling of cylindrical containers. This industrial system is GMP standard compliant with labelling speed 0-150 pcs/min and positioning accuracy ±1mm. It is made of stainless steel and has PLC+HMI control architecture. Our equipment centers, separates, labels, smoothes and counts bottles in one step. With 20 years manufacturing expertise and 13 technical patents. The equipment is provided with a customisable power supply of 110V/220V, 15 to 100mm bottle diameter for pharmaceutical vials, beverage bottles and chemical containers.
Why Your Production Line Needs Our Automatic Round Bottle Labeling Machine?
Manual labelling is a bottleneck in today’s manufacturing. Label placement mistakes damage brand perception and labour expensive procedures enhance costs. Production supervisors are always challenged by regulatory traceability and round-the-clock uptime.
The product takes care of these concerns using mechanical precision and electrical sensing. Automation of the labelling procedure lowers faults and assures uniform branding on thousands of items each day. This strategy makes package quality control risk a competitive advantage.
Core Technical Features That Drive Performance
Advanced Control System Architecture
The JT-510 is equipped with an Industry Grade PLC and a simple to use HMI Touch Screen. All parameters are available to your operators via a simple graphical interface with different product formulations. It allows SKU changes without any technical expertise, and it reduces training time.
Pharmaceutical Grade Building Standards
All contact surfaces are constructed from SUS304 stainless steel and anodised aluminium alloy. Food, pharmaceutical and cosmetic uses are catered to by anti-corrosive material selection. The anti-corrosive structure stands up to washdowns and years of usage.
Multi-Stage Integration Labelling Process
The Automatic Round Bottle Labeling Machine features built-in bottle centring that centers bottles prior to labelling. Spacing is controlled via automated separation for constant feed rates. Integrated smoothing rollers eliminate air bubbles, while precision labelling heads apply adhesive labels. Real-time counting keeps track of production without human checks.
Technical Specifications Overview
| Parameter | Specification |
|---|---|
| Model | JT-510 |
| Power Supply | 110V/220V, 50/60Hz, 900W |
| Labeling Speed | 0-150 pcs/min |
| Labeling Precision | ±1mm |
| Bottle Diameter Range | 15-100mm (customizable) |
| Label Size | H: 10-105mm, L: 10-250mm (customizable) |
| Label Reel Diameter | Inner: 76mm, Outer: 360mm (max) |
| Machine Dimensions | L2000 × W1050 × H1500mm |
| Service Life | 20 years |
Industry Applications Across Regulated Sectors
Pharmaceutical Manufacturing
Vaccine vials and pharmaceutical bottles have to be marked with 100% accuracy for the protection of the patient. We meet exacting regulatory standards, +/1mm precision and batch code validation. High frequency optical sensors are capable of seeing through transparent labels on glass for 0% serialisation mistakes.
Food & Beverage Manufacturing
The PET and Glass Container Lines with high humidity need fast labelling. Moisture resistant structure for stickiness Rapid toggling between product kinds Your drink queue SKUs vary in minutes, not hours.
Chemical and agricultural chemical packaging
Industrial Chemical Container Labels HDPE Heavy Duty. The sturdy frame eliminates any chemical residue and keeps the label intact on tough surfaces. Automatic identification of safe packagings for risky commodities.
Operational Flexibility for Modern Production Environments
Dual Operating Mode Versatility
Use the equipment as a stand-alone workstation for batch processing, or connect to continuous conveyor systems. This adaptability permits pilot production and large scale manufacture without equipment changes. You may adapt your facility to match shifting production needs using current infrastructure.
Tool-free installation
The operator panel contains mechanical controls for the label height and the horizontal position. Change bottle sizes in less than 5 minutes. No extra equipment necessary. The rapid change lowers the downtime when format changes are needed in production plans.
Custom Engineering Support
We offer OEM/ODM services, including customised solutions for non-standard bottle shapes. Engineering teams provide label sizes, bespoke feeding system or material handling. Your packaging needs become standard manufacturing capabilities.
Quality Assurance Through Rigorous Testing Protocols
All Automatic Round Bottle Labeling Machines go through multi-tier validation before dispatch. Static accuracy tests examine variance in placement on static containers. High speed dynamic trials test the verticality for 8 hour continuous runs at maximum rated speeds .
Sensor sensitivity calibration is checked on transparent and opaque label materials by photoelectric sensing. Adhesion integrity tests show that the pressure mechanism eliminates air pockets under varied humidity conditions. Your equipment comes with factory-validated IQ/OQ/PQ papers for the regulated industries.
Materials are subjected to durability testing including 72 hour fatigue tests of the conveyor components and static control verification. This global approach ensures that the machine is CE and ISO9001 compliant and ensures a continuous performance over its 20 years life.
Global Support Infrastructure and Service Commitment
Shanghai Honghua has industrial sites in South China, East China and Southeast Asia. This dispersed manufacturing network allows for speedy order fulfilment regardless of location. Southeast Asia equipment warehouses make it easier for regional clients to import.
The purchase comes with a full 12-month guarantee on all mechanical and electrical parts. Lifetime Technical Support for remote diagnostics and on-site help as required. Professional Packaged Fumigated solid wood box with multi-layer foam protection, for secure international transit.
We provide various logistics alternatives marine, air and rail freight with FOB, CIF and DAP trade terms. Customs Documentation Assistance We can usually clear domestic declarations within 1-3 working days, speeding up clearance.
FAQ
Q: What shapes of bottles can this machine handle?
A: The JT-510 is specialised in cylindrical containers from 15-100mm diameter Custom designs available for conical bottles or bigger industrial drums with engineering consultation
Q: How does label detection work on clear materials?
A: Transparent labels are detected by very sensitive photoelectric sensors using edge detection algorithms. For difficult material combinations other ultrasonic sensor packages are available.
Q: Will the machine be able to interface with current quality control systems?
A: Yup. The PLC system uses conventional industrial protocols for the vision system integration and automatic rejection procedures. With Ethernet connection you may push real-time production data to your MES software.
Q: How often does the equipment get maintenance?
A: Regular cleaning of label path components (daily) and lubrication of drive mechanisms (monthly) provide optimum operation. Full maintenance training is included with installation services.
Q: How fast can operators be trained on the system?
A: Intuitive HMI interface, basic functioning after 2 hours of instruction. Additional day of education for advanced troubleshooting and programming recipes.
Contact Us
Transform your labeling operation with the Automatic Round Bottle Labeling Machine, industrial-grade automation backed by two decades of manufacturing.
