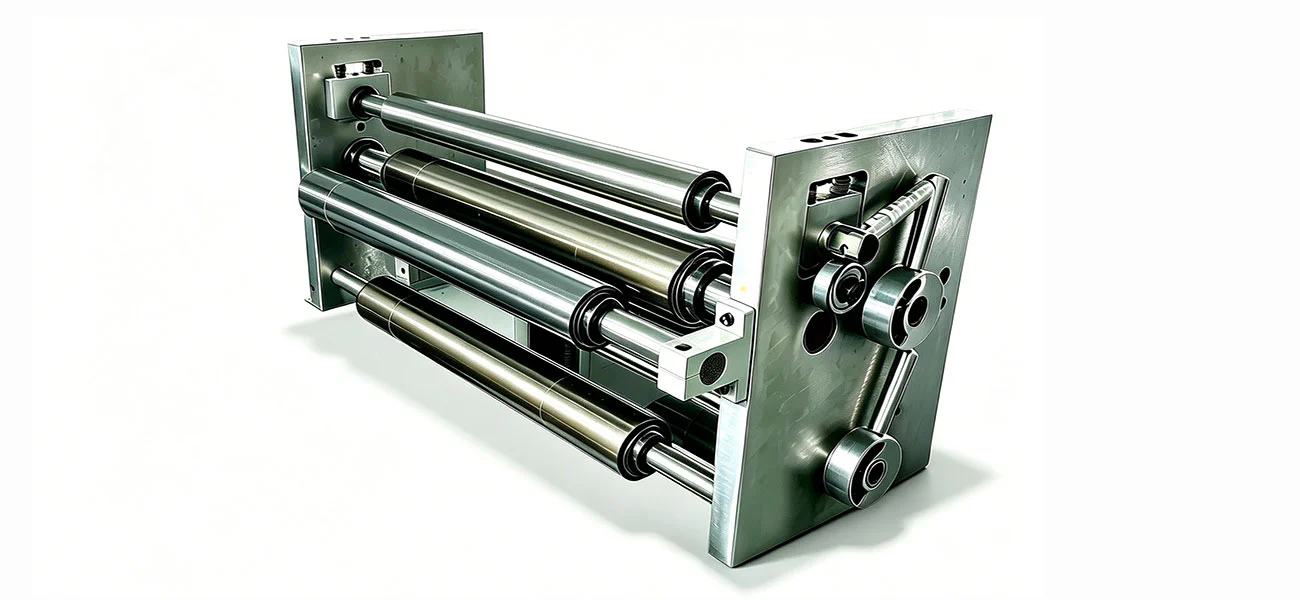

High Speed Label Shifter

High Speed Label Shifter: Advanced Label Transfer Solution for Precision Die-Cutting Applications

Shanghai Honghua Digital Equipment Co., Ltd. is proud to announce the patented High Speed Label Shifter, a revolutionary new solution for processing self-adhesive labels. This small 520×200mm device weighs just 50 KG and offers a 20-year service life to solve major industrial problems such as base paper breakage, label jamming and automated labelling failures. The product realises ±0.1mm positioning repeatability through accurate label shifting and secondary laminating technology under Patent No. 202011096147.7, and can be perfectly matched with printing machines, slitting machines and die-cutting equipment to realise plug-and-play.

Core Technology: Patented Label Shifting Innovation

This product is a breakthrough in the engineering of self-adhesive label making. Conventional die-cut methods generate compromised areas of base paper which are prone to break during high speed labelling operations. Our innovative displacement mechanism moves labels far away from original die-cut markings and distributes tension evenly throughout undamaged substrate regions.

The secondary lamination process uses calibrated pressure to reclaim extra adhesive from die-cut gaps. This eliminates label adhering and considerably reduces peel strength for big labels that often surpass normal labelling machine capabilities. The outcome is a continuous stream of manufacturing at rates of over 500 units a minute.

This solution solves pain points causing production line stoppages in pharmaceutical, beverage and logistics industries with more than 20 years of manufacturing experience behind it.

Technical Specifications & Design

Constructed from aerospace-grade aluminum with anti-static surface treatments, the equipment maintains thermal stability during continuous 24/7 operation. Its compact footprint requires no complicated installation—simply mount onto existing label inspectors or slitting machines and begin production immediately.

Multiple voltage configurations (110V/220V/380V) ensure global compatibility with international standard PLC control systems.

How the High Speed Label Shifter Works?

Traditional labelling has three deadly problems: deep die-cuts rip base paper, adhesive seepage causes sticking, and oversize labels surpass machine peel force limitations. Our High Speed Label Shifter removes these bottlenecks with clever displacement.

Step 1: Change Die-Cut Mark

The mechanism slides labels sideways, totally out of line with original cuts. This diverts stress away from the weakest substrate areas and prevents fracture even at the highest conveyor speeds.

Step 2: Remove the Adhesive

The lamination rollers set to a precision push the adhesive back on the surfaces of the liners. This procedure removes die-cut gaps and returns smooth label feed without jams.

Step 3: Peel Strength Modification

Secondary lamination at optimum pressure decreases total peel force by up to 60% Extra-large labels with high inherent stickiness now detach easily, allowing complete automated labelling of forms that previously required human intervention.

Key Advantages for Label Manufacturers

Eliminate Production Downtime

Operations do not stop at the base of the paper break. Your crew prevents expensive restarts and wasted resources during peak production hours.

Effortlessly Manage Oversized Labels

Large-format labels, which were traditionally manually peeled, are now handled automatically. You can deal with premium orders without upgrading your equipment.

Maintain Printing Quality

Eliminate label jamming and skewing to keep your completed items registered. Barcode scanners scan accurately; customers are more satisfied.

Works with Everything

This unit connects effortlessly whether you use rotary die-cutters, flatbed systems or digital label presses. Standalone operation or inline mounting—both setups are the same in performance.

Industrial Applications Across Sectors

Pharmaceutical Labeling

600 ppm of vial label placement is necessary for regulatory compliance. Our shifter is in zero-drift sync with the filling line encoders so that every GS1 barcode and safety warning aligns perfectly even when speeds change.

Beverage Lines

At 50,000 BPH, moist surfaces and centrifugal forces hinder PET bottling processes. Promotional neck-hangers and secondary labels on cold containers without any failures due to moisture is used in the product.

E- Commerce Logistics

The print-and-apply systems need dynamic label repositioning to accommodate packages of different size. Real-time encoder feedback tweaks shift trajectories on the fly, centring shipment labels for downstream barcode verification – important for sortation accuracy.

Quality Control & Certifications

All units are strictly validated before leaving our production plants in South China, East China or Southeast Asia. Mean Time Between Failure (MTBF) is more than 25,000 hours Dynamic Load Stress Tests at max acceleration of up to 2G confirm MTBF.

Our 48-hour continuous run-in period uses high-speed video analysis to identify micro-vibrations that might impact long-term accuracy. Synchronisation audits monitor timing relative to master encoder signals, ensuring there is no drift between production runs.

Importing made easier by equipment warehouses in South East Asia for foreign clientele. Precision components are packed in multi-layer shockproof foam in standard fumigated hardwood box packing for shipment. Domestic customs clearance is completed in 1-3 working days.

Installation & Maintenance Guidance

Simple Setup Process

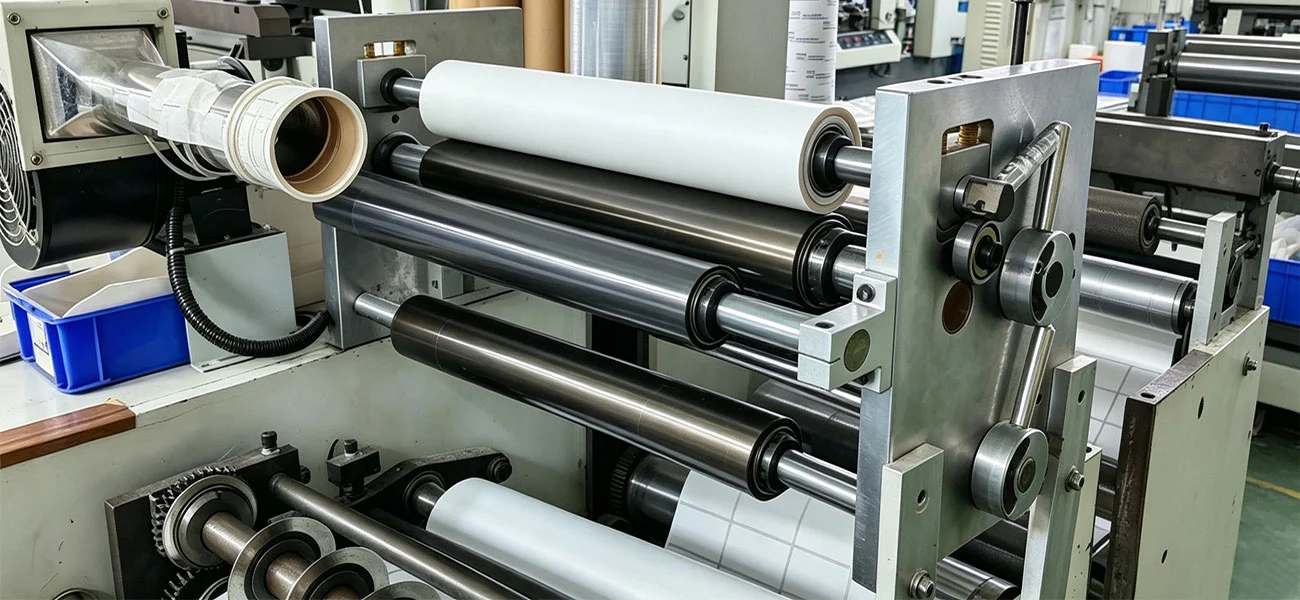

The High Speed Label Shifter can be simply attached to your current label inspector or slitting machine using conventional bolts. Use EtherCAT or PROFINET to connect it to your PLC system. Set vacuum pressure settings appropriate for your substrate, and PE, PET or paper films may be processed successfully.

Regular Maintenance Interval

Calibrate drive belt tension every 1,000 hours of operation. Plasma-non-stick coating for clean peel tips to avoid sticky accumulation. The encoder cable connections are checked quarterly to preserve positioning accuracy .

Every component is protected by 12-month warranty and lifelong technical assistance from our expert service staff. Most problems are solved within hours thanks to remote diagnostics and replacement parts are sent worldwide in 48 hours.

FAQ

Q: How does the shifter work well even when the conveyor speed changes suddenly?

A: The motion controller will immediately modify the shift trajectory using real time encoder feedback and predictive algorithms. The response latency is < 5 milliseconds so it doesn't budge even in emergency pauses or ramp-ups.

Q: Can it be used on various label materials without adjustment?

A: Yes. Tension control and vacuum pressure settings for different filmic and paper substrates. There are no mechanical adjustments required, only two control panel settings to switch between PE, PET or paper materials.

Q: What causes label jams in high-speed operations?

A: The main problem is adhesive build-up on the peel tips or rollers. Our anti-static surface treatments and plasma non-stick coatings decrease cleaning frequency by 70% compared to ordinary stainless steel components.

Q: Will this work with changeable data printing systems?

A: Yes, absolutely. The shifter is compatible with heat transfer and laser printing. It moves the printed label immediately after imaging, keeping registration for serialised barcodes and QR codes.

Q: How long will it take to get my order?

A: We have many manufacturing locations in China, therefore we can ship your order really rapidly. Standard configurations are sent FOB Shanghai or Ningbo within 7-10 working days. Custom voltage/mounting choices add 3-5 days to lead time.

Contact Us

Ready to eliminate labeling bottlenecks and increase your production efficiency with High Speed Label Shifter?

Email us today at [email protected].
