Real-Time Print & Apply System

Real-Time Print & Apply System with Integrated Thermal Printer for Automated Production Line Labeling

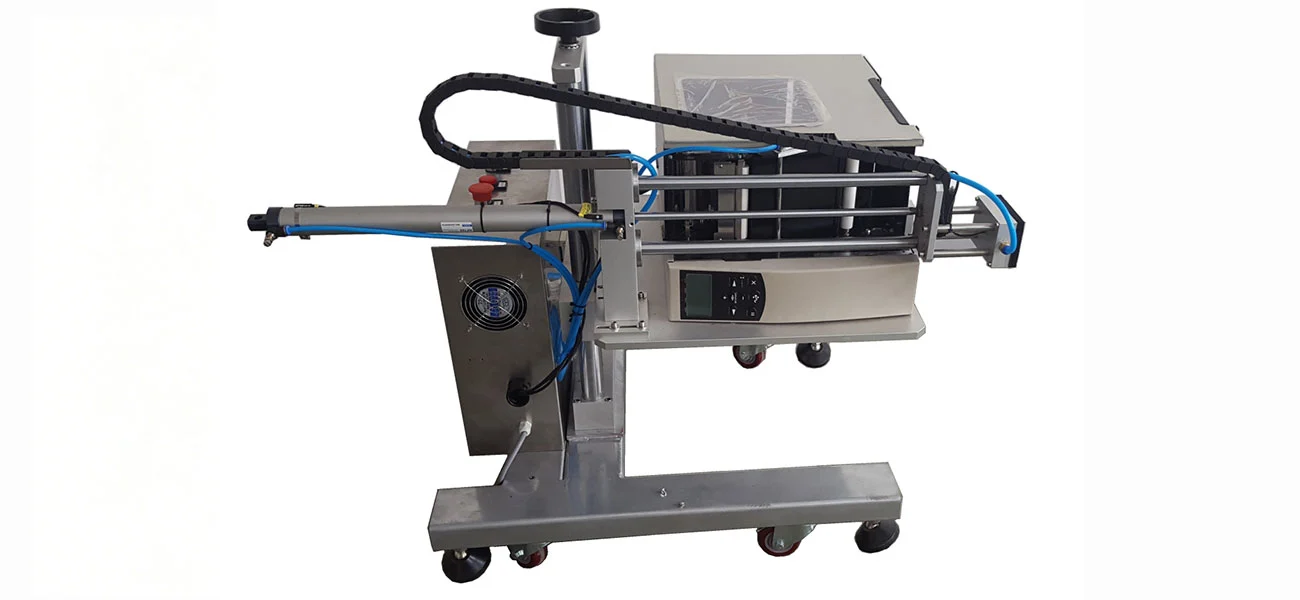

Shanghai Honghua Digital Equipment Co., Ltd. is proud to present the JT-310AC Real-Time Print & Apply System, an enterprise level automatic labelling solution for high speed production. The system combines industrial grade thermal transfer printing and precision applicator technology for ±1mm labelling accuracy and real-time data processing. The technology secures preprinted label inventory expenditures and provides full production traceability by dynamically printing batch numbers, QR codes and expiry dates directly on package surfaces at 300 DPI print quality with ribbon widths up to 114mm.

What is a Real-Time Print & Apply System?

A high speed thermal print and precision applicator module product is a sophisticated industrial automation solution. This technique makes labels with changeable data like as serial numbers, production dates, logistics codes, etc., and applies them to items in a single continuous motion, as opposed to pre-printed labelling procedures.

The system tackles important production problems. Printing prior to application eliminates data mismatch. Automation removes inefficiencies in hand labelling manufacturing. Built-in verification processes avoid non-compliance failures with unreadable barcodes.

Modern systems support worldwide supply chain barcode standards GS1-128, DataMatrix and SSCC. The industrial protocols integrate seamlessly with MES and WMS systems.

Core Technical Properties and Specifications

The JT-310AC product delivers industrial-grade performance through carefully engineered technical parameters:

The system achieves 'One-to-One' labeling precision, ensuring the last printed label is the next applied without sequence errors. Modular applicator heads support multiple application methods including tamp, blow, and corner-wrap configurations.

Industrial-grade construction features stainless steel and aluminum alloy frames meeting GMP standards. The design withstands high-vibration environments while maintaining consistent performance during continuous operation.

Advanced Integration and Control Technology

PLC and HMI touch control our Real-Time Print & Apply System for central parameter management. Operators may save several product profiles and call them up with one click, greatly saving changeover time between production runs.

The labelling head may be adjusted on three axes. Vertical raise lets you vary your product heights. Horizontal placement is for varied package widths. The 90-degree rotation feature allows side and corner labelling applications on cartons, plastic containers, and flexible packaging.

Photoelectric sensors continually monitor the manufacturing line. When items are missing or label stock is low the system automatically warns and stops operation to avoid mistakes. The design is a fail-safe to ensure manufacturing quality and minimise waste.

Standard industrial IO ports for easy synchronisation with upstream and downstream equipment. Your conveyor systems, weighing scales and sorting equipment interface directly with the labelling unit using established protocols like as EtherNet/IP and Modbus TCP.

Precision Application with Soft-Touch Technology

The vacuum label picking system has a soft touch buffer design to preserve the delicate surface of the package. When the applicator is moved approaching items, it automatically retracts to minimise scratching or distortion due to the sensors sensing touch.

For applications such as soft bags, coated cartons and temperature sensitive goods this sophisticated pressure management is an important factor. Labels apply easily, without bubbles or wrinkles, for a professional look and barcode reading.

The pneumatic actuation system modulates stroke length dynamically according to real-time product detection. Product height changes on the same manufacturing line are automatically accommodated without user intervention or line stoppages.

Real-Time Variable Data Printing Capabilities

The integrated industrial print engine removes the need for pre-printed label inventory. As items travel down your line you may print batch numbers, expiry dates, serial numbers and QR codes on demand.

The changeable data feature saves label storage costs and obviates obsolescence when product information changes. Regulatory compliance is easier since current data is always printed and not on pre-printed paper that may be out of date.

All units are serialised, improving production traceability. The affixed labels may incorporate data to track quality faults back to particular production dates, shifts and raw material batches.

The technology offers hot transfer and direct thermal printing. Smart start-stop control reduces waste between labels, maximising the use of ribbon.

Diverse Industrial Applications

Your product is used in demanding production environments across several industries.

Ecommerce and Logistics The high-speed shipping label software can handle a wide variety of box sizes. Pneumatic strokes auto-sense and find delicate products without damage

Pharmaceutical Manufacturing: 2D DataMatrix code packages fulfil regulatory serialisation requirements. Integrated checking prior to packaging guarantees 100% readablity.

Food Production & Cold Chain: The system performs effectively in high temperature sterilising and sub-zero cold storage sites. Special adhesives stick to frozen product surfaces prone to condensation.

production and Assembly: Sequential barcode labels monitor components during the production process. Just-in-time inventory and quality control are aided by WIP identification.

Customization and Configuration Options

Shanghai Honghua offers complete customisation to satisfy your individual manufacturing needs. Extended labelling stroke possibilities for large goods or odd application angles are available.

Two print heads may be configured in parallel to apply multiple labels simultaneously, or for high-volume production lines requiring greater throughput. Integrated vision inspection systems enable automated quality verification and rejection of defective labels.

Voltage settings are tailored to regional norms with possibilities of 110V, 220V and 380V. We have flexible MOQ policies for single unit testing, small batch trials and full production orders.

Customised applicator designs for non-standard package forms. Our Real-Time Print & Apply System technical team designs application-specific solutions for cylindrical containers, unusual shapes and difficult surface materials.

Quality Control and Verification

Built-in barcode verification guarantees labels are scannable before items leave your facility. Data integrity confirmed to be in line with industry norms by read-after-print examinations. When the verification does not match, the system immediately marks the item for rejection or reprints a new label.

Positional repeatability testing in production guarantees label accuracy stays within tolerance for thousands of application cycles. Mean Time Between Failure standards confirm long-term dependability and ROI.

Peel force optimisation ensures proper vacuum pressure calibration. Labels do not slide during application and do not harm items due to excessive adhesive force. This equilibrium preserves the dependability of the applications and the integrity of the packaging.

Professional Support and Warranty

Shanghai Honghua provides guarantee of full 12 months and lifetime technical support for all products. Our service staff can support you remotely, help you with on-site installation and give advice for further maintenance.

With 20 years of production expertise and 13 technical patents we give proven solutions in labelling automation. Our manufacturing sites in South China, East China and Southeast Asia guarantee consistent availability of equipment and spare parts.

Professional export packing safeguards precise parts for overseas transportation. Print engines and servo motors are packed in fumigated hardwood containers with multi-layer foam. Customs paperwork help ensures seamless clearance usually completed in 1-3 working days.

FAQ

Q: How does the system manage products of varied heights on the same line?

A: Laser sensors measure the distance to the top of the product in real time. Long-stroke pneumatic actuators easily compensate for height change with millisecond tamp position adjustments.

Q: Will the product interface with our current WMS?

A: Yes. Modern systems provide ZPL and DPL emulation with standard API and ODBC drivers for smooth data interchange with SAP, Oracle and other corporate software platforms.

Q: What happens if a barcode is printed wrong?

A: Integrated scanners do a post-print verification. If labels are defective, non-compliant items are not advanced because automated rejection signals or reprint orders are sent prior to application.

Q: What’s the life span of the printhead?

A: Industrial printheads have an average life of 1 to 2 million linear inches depending on the environment, ribbon quality and maintenance standards. Frequent cleaning will greatly increase the service life.

Q: Is multi-surface labeling possible on the same package?

A: Of course. The multi-axis swing-arm applicators or synchronised dual-system systems, controlled by a central PLC, allow for simultaneous side and top labelling on a single product.

Contact Us

Transform your production line efficiency with a Real-Time Print & Apply System. Contact our technical team at [email protected] to discuss your specific application requirements and receive detailed specifications.
