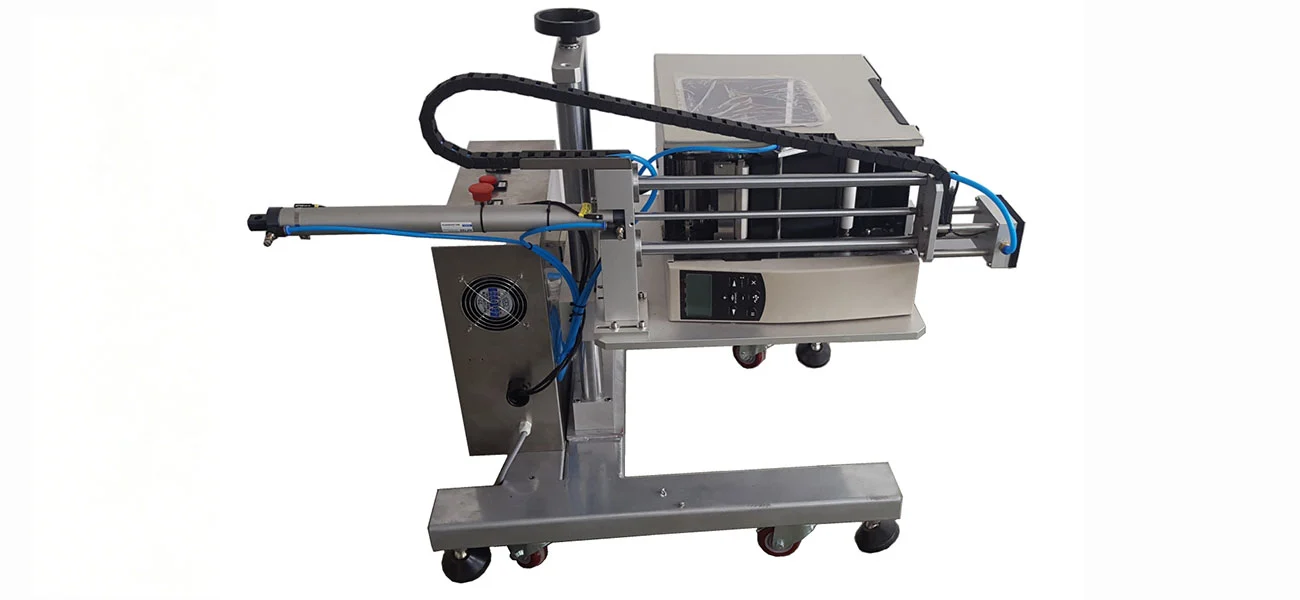

Online Printing Labeling Machine
2、Equipped with a labeling structure, it provides stable label attachment and reliable labeling performance.
3、The labeling head can be adjusted according to product shape and labeling position, offering flexible application solutions.
4、Designed for harsh working environments with adaptability to heat, moisture, and corrosion conditions.
High-Performance Online Printing Labeling Machine | JT-310AC Industrial Print & Apply System for Smart Manufacturing
Shanghai Honghua Digital Equipment Co., Ltd. is pleased to launch the JT-310AC Online Printing Labeling Machine, an enterprise-level print-and-apply automation solution. This industrial-grade technology combines real-time thermal transfer printing and accurate labelling, delivering ±1mm precision at 203.2mm/s. The machine has 300 DPI resolution and supports 104 mm labels, which reduces the cost of pre-printed label inventory and enables full production traceability. Our PLC+HMI system, 90° rotatable adjustable labelling heads and vacuum label application for bubble-free performance on cartons, flexible packaging and cylindrical containers are supported by 13 technical patents and 20 years of manufacturing expertise.
Why Choose Our Advanced Online Printing Labeling Machine?
Modern production demands identification systems capable of modifying product information without taking the system offline. Our dynamic on-demand label printing eliminates waste and enables just-in-time manufacturing.
The integrated industrial print engine manages batch codes, serialised QR codes, logistics tracking numbers and live production timestamps. Pharmaceutical serialisation compliance, food safety traceability and e-commerce order fulfilment all need the identification of each product.
GMP certified stainless steel and aluminium alloy equipment operates reliably in the temperature fluctuations, humidity and corrosive conditions of food processing and chemical packaging activities.
Complete Technical Specifications
| Parameter | Specification |
|---|---|
| Power Supply | 220V 50-60Hz |
| Air Pressure Requirement | 3-5 KG/cm² |
| Print Resolution | 300 DPI |
| Printing Speed | 0-203.2 mm/s |
| Ribbon Length | 300m |
| Ribbon Width | 30-114mm |
| Max Label Roll Diameter | 200mm |
| Max Label Width | 104mm |
| Printing Technology | Thermal Transfer / Direct Thermal |
| Machine Dimensions (L×W×H) | 880×750×1380mm (adjustable) |
Intelligent Control Architecture
PLC based control system with HMI touch screen interface allows the operator to store and recall numerous product configurations. SKU change means no manual modifications with one-touch parameter shifting.
Easy to integrate with conveyor systems, checkweighers, metal detectors and automated sorting equipment using standard industrial IO synchronous ports. Communication with MES, ERP and WMS systems provides real-time monitoring of production.
Photoelectric sensors detect items and missing labels and stop the queue to assure quality. Closed-loop feedback ensures that unlabelled products do not get sent into distribution channels.
Flexible Application Engineering
Three axes of adjustment are available in the Labelling Head Assembly. Low-profile boxes, stacked pallets may be lifted vertically. The widths of the products are suitable for horizontal fitting without any mechanical modification.
The 90° rotation enables for side panel and corner wrap labelling. The Online Printing Labeling Machine is capable of producing rectangular cartons, cylindrical drums, irregular pouches and rigid plastic containers in a single production environment.
Custom configurations include extended stroke lengths for taller containers, dual print heads for front and back labelling, and integrated vision inspection systems to scan bar codes before product delivery.
Precision Application Technology
The vacuum based label transfer provides homogeneous placement of the label on the substrates. The soft-touch buffer mechanism pulls back when it hits product surfaces, safeguarding delicate packaging films, coated paperboard and flexible pouches.
This mild application method reduces air pockets and wrinkles that hamper barcode scanning and look. In case of surface defects or size differences, the item is still within the system accuracy of ±1mm.
Adjustable tamp pressure levels allow adhesive bonding of package contents without crushing or deforming Smooth corrugated board to rough woven polypropylene.
Production Environment Adaptability
Equipment intended for severe industrial settings can cope with heat from neighbouring manufacturing equipment, moisture from washdown and chemicals from cleaning solutions. Sealed electrical enclosures keep controls clean.
The robust mechanical construction is able to withstand high speed conveyor vibration and retain alignment calibration across extensive manufacturing cycles. All contact surfaces are composed of corrosion-resistant materials for food and pharmaceutical processing.
This Online Printing Labeling Machine may be utilised in cold storage facilities with frozen food processing lines below 0°C where typical electronics would fail with optional temperature controlled print head modules.
Cost-Efficiency and ROI Benefits
Elimination of pre-printed labels reduces warehousing expenses and obsolescence waste when product information changes. On-demand variable data printing is a kind of lean manufacturing that prints just what is required.
Increased accuracy means lower cost on product recall and rework. Automation accelerates the application 300-500% faster than hand labelling, decreasing labour and improving uniformity for multi-shift throughput
Energy-efficient standby power modes minimise operating expenditures in comparison to obsolete systems. Thermal transfer printing consumes less energy per label than inkjet and is more durable for outdoor and wet exposed applications.
FAQ
Q: How is it with varied height items on same manufacturing line?
A: The pneumatic tamp has automatic stroke adjustment. Ultrasonic distance sensors automatically identify the location of the surface of each product and determine the extension needed in real time, without operator intervention, between 50mm and 350mm heights.
Q: Can this equipment communicate with our ERP system?
A: It supports industrial communication protocols like Ethernet/IP, Modbus TCP and serial RS-232. Your IT staff may set up direct SQL database queries or use middleware to get production data for label printing without having to enter data by the operator.
Q: How often should the thermal print head be serviced?
A: Cleaning with isopropyl alcohol every 8 hours increases the life of the print head to 30-50 km of labels. We can provide full maintenance programs including replacement and installation of head assemblies.
Q: How does the system verify the quality of the barcode before applying it?
A: Optional integrated barcode verifiers may instantly grade ISO/IEC 15416 right after printing. The system rejects faulty items if a barcode does not meet quality limits for GS1 supply chain standards.
Q: Will the device accept linerless labels?
A: Standard configs employ liner labels. Custom constructions include specialised cutters and non-stick rollers for linerless media applications, saving 40% of material waste in high-volume applications where environmental sustainability is a priority.
Contact Us
For the Online Printing Labeling Machine, request technical specifications, application consultation, or arrange equipment demonstrations. Contact our solutions team at [email protected] to discuss your labeling automation requirements.
