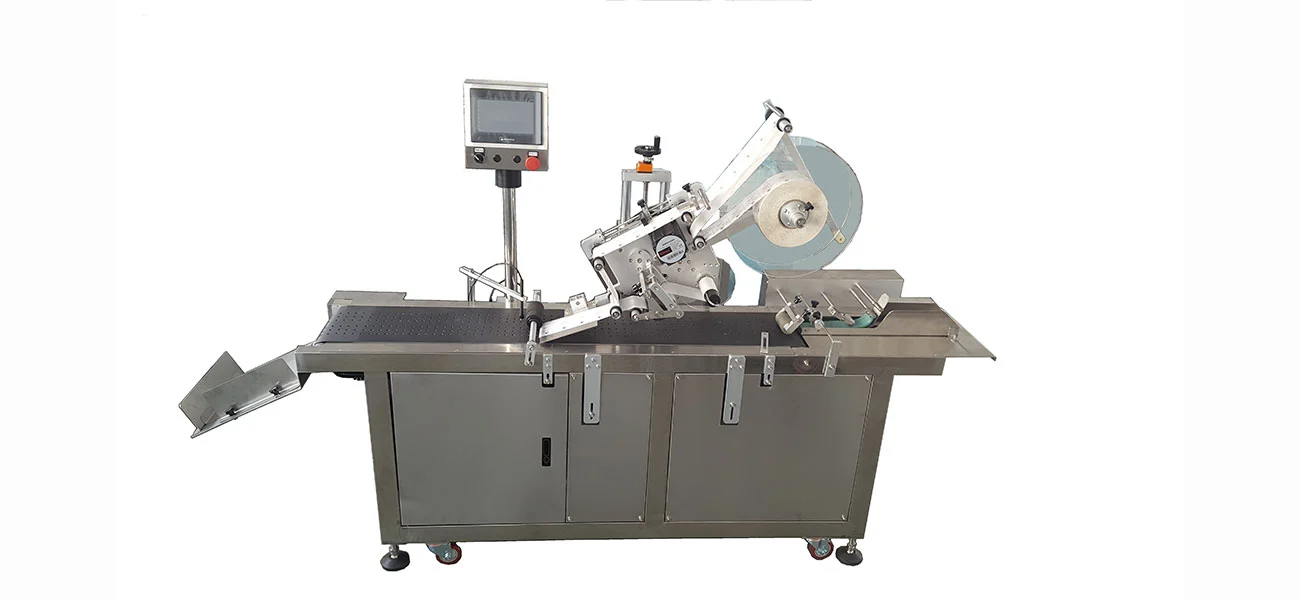

Automatic Bag Feeding And Labeling Machine
2.PLC combined with LCD touch screen panel, the setting and operation is clear and easy.
3.The equipment is complied with GMP requirements and made of SUS304 stainless steel
and high-class aluminum alloy.
4.The machine has many functions such as guiding, labeling, attaching, counting
5. The labeling position can be adjusted.
6. The machine can be used in production line with conveyor belt.
7. The special machine can be customized according to customer requirement
Automatic Bag Feeding And Labeling Machine: High-Precision Solution for Flexible Package Automation
Shanghai Honghua Digital Equipment Co., Ltd. may increase packaging line efficiency using the Model JT-210D Automatic Bag Feeding And Labeling Machine. Industrial-grade system provides 0-25M/min labelling speed with ±1mm accuracy, cuts down human labour expenditures and ensures quality. Our equipment is made of 304 stainless steel construction and PLC+HMI touch control combined with 20 years of manufacturing expertise and 13 technologies. The vacuum suction paging construction can separate aluminium foil pouches and zip-lock packages without duplicate feeding. This system is designed to food, pharmaceutical and agrochemical production requirements for 24/7 operation with 110V/220V compatibility, 600W power consumption and GMP compliance.
How This Automatic Bag Feeding And Labeling MachineSolves Production Bottlenecks?
Manual labelling has three key problems: inconsistent placement, limited throughput and heavy dependence on labour. The smart automation equipment takes care of these problems.
Single bags are created from static-prone textiles using a friction feeding mechanism and reverse-rotation rollers. Your manufacturing line is fine no semi automatic jams.
Adjustable label placements make quick format changes possible. Designed without tools, the bag size may be changed in under 10 minutes to improve equipment efficiency across a number of SKUs.
Technical Specifications
| Parameter | Specification |
|---|---|
| Model | JT-210D |
| Power Supply | 110V/220V, 50/60Hz, 600W |
| Labeling Speed | 0-25M/min (adjustable) |
| Labeling Precision | ±1mm |
| Product Width | 40-300mm (customizable) |
| Label Size | H: 20-105mm, L: 20-250mm (customizable) |
| Label Reel Diameter | Inner: 76mm, Outer: 360mm (max) |
| Machine Dimensions | L2350 × W750 × H1500mm |
| Frame Material | SUS304 stainless steel + aviation aluminum alloy |
Core Functional Advantages
Your production has features that normal labelling equipment does not have.
PLC controllers save sets of product parameters. One-touch recall of saved parameters minimises lengthy adjustments while changing production runs.
Operators are automatically alerted to material shortages, lost bags and label run-outs before any line halt occurs. Proactive monitoring reduces downtime and enables constant operation.
The multi-stage press-on method pushes the label uniformly with soft-rubber rollers and brushes. This removes air bubbles and wrinkles that hinder the scanning of barcodes.
Application Scenarios Across Industries
Automatic Bag Feeding And Labeling Machine is used by Food and beverage businesses to label stand-up pouches. Coffee, snack and dry food companies are using zipper-top containers with no jamming problems.
Pharma manufacturers satisfy regulatory requirements with high-resolution serialisation on IV bags, diagnostic kit pouches. ±1mm precision satisfies the most stringent traceability requirements in medical supply chains.
Robust sensors are reliable in dusty situations, therefore they are useful in agrochemical and seed packing activities. The apparatus attaches large-format warning labels to thick multi-wall bags for heavy-duty manufacturing runs.
Customization Options for Your Specific Requirements
Shanghai Honghua offers flexible OEM/ODM services to meet manufacturing demands. By analysing your process, our technical team will build non-standard equipment setups.
Customisations include print-apply connection with thermal transfer or inkjet printers for concurrent coding. Double labelling heads allow you to complete front and rear in one run tripling throughput.
Bags larger than the typical size fit into wider hoppers. Visual Inspection Rejection Systems Automatically Eject Defective Units To Ensure Zero-Defect Output To The Packaging Stage
Power supply choices match the regional voltages. Reserved ports enable easy connection of upstream filling lines and downstream conveyor systems for full automation.
Why Material Construction Matters
304 stainless steel frame offers corrosion resistance needed for food grade and medicinal settings. Unlike painted steel options there is no chance of rust contamination from this material.
The weight is reduced overall; aviation aluminium alloy components provide structural rigidity. This combination means it's simple to move, easy to clean thoroughly, with no dead corners.
All contact surfaces are GMP compliant. Your quality audits pass without modification and the equipment integrates immediately into restricted production zones.
Quality Assurance Process
Every Automatic Bag Feeding And Labeling Machine is thoroughly tested before shipping. Repeatability Accuracy Test: The repeatability test is undertaken for 1,000 cycles to ensure the ±1mm variance standard for various bag materials.
Static dissipation verification confirms that the feeding unit can handle electrostatic build-up that causes material sticking. Sensitivity calibration of the detecting system on clear and metallic surfaces and on opaque surfaces.
A 48 hour continuous stress test is used to mimic lengthy production runs. We certify quality only for equipment that under permanent load retain their performance standards.
The production system at Shanghai Honghua is ISO 9001 certified for consistent quality Your investment is protected with our 12 month guarantee and lifetime technical support for dependable functioning.
FAQ
Q: Do you work with pouches that have zippers?
A: So if I am understanding correctly, the manifolds are suction cup based and changeable friction rollers are used to make up for unequal thickness at the zipper places, eliminating feeding failures?
Q: How does the method avoid multiple feeding of thin bags?
A: The high precision separating claws and the reverse-rotation rollers guarantee that only the top-most bag goes to the labelling conveyor and therefore avoids expensive waste of material.
Q: Can I integrate a date coder or thermal transfer printer?
A: The PLC comes with an auxiliary port for easy synchronisation of TTO or inkjet printers for simultaneous labelling and variable data printing.
Q: How long does it take to switch over various bag sizes?
A: Our tool-free adjustment design means that experienced operators may do full format changeovers in less than 10 minutes, reducing downtime.
Q: How do you prevent air bubbles under the labels?
A: The multi-stage press-on system with soft rubber rollers and brushes delivers even pressure over the full surface of the label for flawless adherence.
Contact Us
Ready to upgrade your packaging line efficiency with Automatic Bag Feeding And Labeling Machine? Contact our technical team at [email protected] for customized solutions and detailed quotations.
