Automatic Round Bottle Positioning Labeling Machine
2、Equipped with PLC and HMI, it delivers intuitive and straightforward operation.
3、The entire machine is constructed from stainless steel and aluminum alloy, rust-proof and compliant with GMP standards.
4、This machine integrates multiple functions including bottle alignment, bottle separation, labeling, label smoothing and counting.
5、The labeling position can be adjusted conveniently.
6、It can be connected to conveyor belts for assembly line production.
7、Various special customized models are available to meet customers’ specific requirements.
Automatic Round Bottle Positioning Labeling Machine | High-Precision Industrial Labeling Solution for Cylindrical Containers

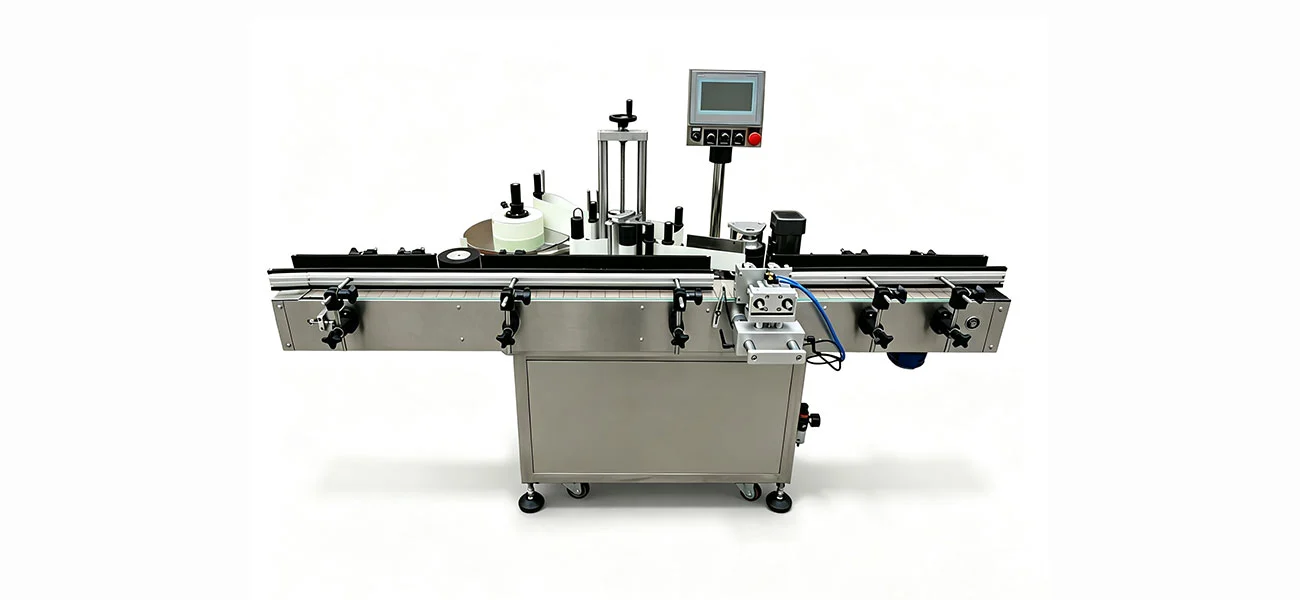

Shanghai Honghua Digital Equipment Co., Ltd. provides the JT-515 Automatic Round Bottle Positioning Labeling Machine, designed for accurate full or partial wrap-around labelling of round bottles and other cylindrical containers. This industrial-grade system delivers ±1mm labelling accuracy with built-in bottle alignment, separating, labelling, smoothing and counting capabilities at speeds of up to 40 bottles per minute. Bottle size: 15-100mm. 3. Power: 110V/220V, 900W. Use: SUS304 stainless steel and aluminium alloy, to meet the GMP standards. This unit, with 13 technological patents, has been manufactured for 20 years and offers enterprise-level reliability for beverage, pharmaceutical and cosmetic production lines.
What Is an Automatic Round Bottle Positioning Labeling Machine?
A device employs sophisticated industrial automation to put pressure sensitive labels on spherical containers with exact positioning. The equipment identifies the bottle features such as glass seams, handles and pre-printed marks using new positioning technology to apply labels to the correct radial location, rather than as a standard wrap around labeller.
The system solves certain important manufacturing problems. Label height discrepancy eliminated via synchronised servo control. And precision brush-down devices that eliminate air bubbles on the uneven surfaces. Automated detection removes the costs and errors of human alignment.
Components for bottle separation, positioning and labelling all operate together on your production process. The frequency conversion mechanism is fully synchronous to all the working phases.
Core Technical Specifications
| Parameter | Specification |
|---|---|
| Model | JT-515 |
| Power Supply | 110V/220V, 50/60Hz, 900W |
| Labeling Speed | 0-40 pcs/min (adjustable) |
| Labeling Precision | ±1mm |
| Bottle Diameter | 15-100mm (customizable) |
| Label Size | H: 10-105mm, L: 10-250mm (customizable) |
| Label Reel Diameter | Inner: 76mm, Outer: 360mm (max) |
| Machine Dimensions | L2000 × W1050 × H1500mm |
| Air Pressure | 5kg/cm² |
| Frame Material | Stainless steel & aluminum alloy |
| Control System | PLC + HMI touchscreen |
Five-in-One Integrated Functionality
Consolidated processes make your labelling workflow easy. The machine combines bottle placement, separation, precision application, label smoothing and automated counting into a compact system.
The flexibility comes from multi-dimensional adjusting systems. Precision knobs control the front-back positioning. Height adjustments for different bottle sizes. Fine-tuning from left to right guarantees precise alignment.
Fast change features decrease downtime. Change from one round bottle size to another without complicated reconfiguration. The easy adjustment method saves precious change-over minutes during production runs.
Plug-and-play connectivity using standard conveyor interfaces. It easily connects to your current manufacturing line via dedicated ports for easy connectivity to upstream and downstream equipment.
High-Precision Fixed-Point Positioning Technology
Every labelling procedure is defined by precision. The placement technique makes sure the labels are applied consistently without variation or warping on thousands of bottles. Consistent quality control standards.
Advanced optical sensors detect container properties and achieve millisecond reaction rates. The technology detects reference points on each bottle and places the label at fixed pre-determined locations.
The Automatic Round Bottle Positioning Labeling Machine has a synchronous drive that synchronises the bottle travel with the speed of the label dispensing. This harmony eliminates the frequent faults such as label skew, bubbles or unequal wrap coverage that afflict manual or semi-automatic systems.
For clear labelling, advanced detecting technology breaks beyond standard sensor constraints. The technology does not only depend on light reflection, but also on density variations and delivers 100% detection accuracy on clear-on-clear jobs.
Customization for Diverse Production Requirements
Custom solutions for bottle shapes that are not conventional. Special-shaped circular containers, taper bottles or cylindrical forms may be customised for placing fixtures.
Double-sided fixed labelling systems provide front and rear label application in one pass. This feature is important for devices that have to show information over several panels and yet achieve alignment accuracy.
Extended frame choices allow for longer conveyor runs to suit high volume manufacturing operations. The longer belt systems incorporate other buffer zones between the filling stations up stream and the packing stations down stream.
It is globally compatible with voltage customisation. Select 110V for North American installations or 220V for European and Asian establishments or 380V for large industrial three-phase power situations.
Application Across Multiple Industries
Production of premium beverages and wine: glass bottles need to look beautiful. Labels must fit embossed logos, cover mould seams. These factors are named by the positioning system to enhance the presentation of the brand.
Pharmaceutical & Healthcare Manufacturing: UDI labels need to be applied accurately to vials and reagent bottles to meet regulatory requirements. Even in humidity controlled conditions with weak label adhesive the Automatic Round Bottle Positioning Labeling Machine is precise.
Cosmetics & Daily Chemicals 360-degree cover protects essential oil bottles, luxury hair care containers and tapered cosmetic pots. The method corrects for misalignment caused by conveyor vibrations and somewhat slick surfaces.
GMP-Compliant Construction and Control
Constructed of stainless steel and aluminium alloy to prevent contamination. Designed to be rust resistant, conforms to Good Manufacturing Practices of pharmaceutical and food industries.
The industry is confident in the PLC control system. Have a lot of product recipes to swap quickly. Use HMI touch screen to identify issues and speed up troubleshooting.
Certified electromagnetic compatibility for safe operation in the vicinity of sensitive equipment. As manufacturing speeds up, operators are safeguarded by mechanical safety precautions.
Quality Assurance and Testing Protocols
Factory Acceptance Testing is a pre-shipment performance test. Positional consistency tests measure radial and vertical variance over 1000 cycles maintaining ±1mm specification throughout long-term operation.
Bubble and wrinkle tests are performed at high speed on the secondary press on mechanism. Zero air entrapment certificate lends an air of sophistication to high-end objects.
To confirm the sensitivity of the sensor, the reaction latency of the signal is tested. The detecting system is required to stop the labelling at the border of peeling plate without overrun to guarantee the placement accuracy.
Label pulling tension checks prevent damage due to rapid acceleration start. Verified servo motor torque settings, yielding rates are nearing 99.5% without liner perforation.
FAQ
Q: How the machine works with various bottle sizes in the required range?
A: Mechanical parts are not changed with the rapid diameter change from 15mm to 100mm, thanks to the adjustable hand-wheel mechanism. Side guide rails and positioning rollers are adjustable for different bottle sizes. Complete changeover is often less than 5 minutes.
Q: What causes vertical label offset and how is it corrected?
A: Usually vertical offset is caused by bottles not being perpendicular to the conveyor. Adjust the three point placement rollers and side guides until the bottom of the bottle is flat. Then the height adjustment mechanism precisely adjusts the vertical positioning of labels.
Q: Can the machine label bottles that are running at uneven speeds?
A: The labelling speed is coordinated with the real bottle velocity via the servo motor and frequency conversion mechanism. Bottle presence and speed sensors automatically modify label dispensing to compensate for differences on the conveyor belt in the 0-40 bottles per minute range.
Q: How to avoid air bubbles behind labels on somewhat curved surfaces?
A: The synchronised brush down technique delivers regulated pressure as the label wraps around the bottle. The exact label speed matching to the conveyor speed in milliseconds prevents air entrapment between the label and container surface.
Q: What is the maintenance plan for constant positioning accuracy?
A: The optical sensors and peeling plates are cleaned weekly to avoid misleading readings. The drive belt tension is checked once a month, and the synchronous gears are lubricated to preserve mechanical perfection. This plan avoids position drift that might violate the ±1mm precision requirements.
Q: Is the machine compatible with transparent or clear labels?
A: Yeah, there are specialised sensors that pick up density changes, not just light reflection. The method enables reliable transparent label identification when conventional optical sensors fall short, which is important for clear on clear pharmaceutical and cosmetic applications.
Contact Us
Transform your round bottle labeling operations with the Automatic Round Bottle Positioning Labeling Machine, precision automation backed by 20 years of manufacturing expertise.
