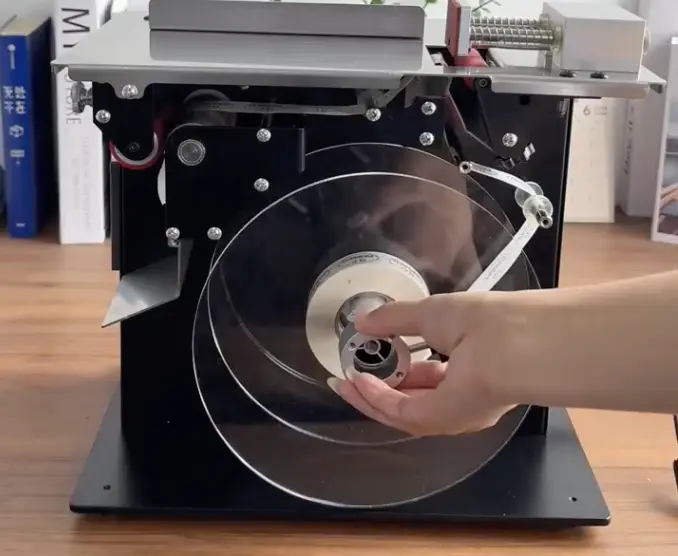

Self Adhesive Labeling Machine
2、Suitable for labeling various flat products, featuring precise 90° corner labeling for sealing, anti-counterfeiting, and tamper-evident protection.
3、Ideal for applying tamper-proof seals to various packaging boxes, meeting flexible small-batch and multi-batch production needs.
4、Designed for a 20-year service life with lifetime after-sales support.
5、Multiple production factories across China ensure fast order delivery.
6、Equipment warehouses in Southeast Asia support convenient global import and export.
High-Precision Self Adhesive Labeling Machine | Industrial Automation Solution for Enhanced Production Efficiency
Shanghai Honghua Digital Equipment Co., Ltd. provides industrial Self Adhesive Labeling Machine systems with sophisticated PLC control technology and precise servo motor drives. Designed for continuous operation 24/7 with a service life of 20 years, our industrial labelling systems provide a positioning precision of ±0.5mm at rates of up to 300 units/min. Our systems are supported by 13 technical patents and 20 years of manufacturing experience at production facilities in South China, East China and Southeast Asia. Our systems include automatic production counting, adjustable labelling height and flexible speed control to optimise your packaging line efficiency and reduce operating costs.
What Makes Our Self Adhesive Labeling Machine Essential?
Modern industrial needs are much more than hand labelling. A product overcomes significant manufacturing problems that restrict growth and quality norms.
Inconsistent placement from manual label application degrades brand impression and requires expensive redo. Bottlenecks arise on high-speed manufacturing lines when the labelling speed cannot meet the output of the filling machine. Poor adhesion may lead to bubbling and wrinkling effects, which can affect the integrity of the package and its regulatory compliance.
Our automated labelling solutions solve these pain points using PLC control and stepper motor technology that is in sync. Pressure-sensitive labelling is different from cold-glue or hot-melt systems since it utilises pre-glued labels with adhesive layers built into the label itself for a clean application without messy residue.
This results in smooth integration with your supply chain, improved traceability, and uniform aesthetic standards that exceed today’s customer expectations.
Technical Specifications & Core Parameters
| Parameter | Specification |
|---|---|
| Dimensions | 34cm × 21cm × 28cm |
| Labeling Accuracy | ±0.5mm to ±1mm |
| Production Speed | 20-300 units/minute |
| Control System | PLC with touchscreen interface |
| Material Construction | SUS304 stainless steel & anodized aluminum |
| Voltage Options | 110V / 220V / 380V |
| Service Life | 20 years |
| Warranty | 12 months with lifetime technical support |
| Label Type Compatibility | Transparent, metallic, paper, synthetic |
| Detection System | Ultrasonic & photoelectric sensors |
Advanced Intelligent Control & Production Monitoring
Production data promotes educated decision-making. Our solution has an inbuilt output counting module which counts label usage live.
The PLC electric control system enables to alter labelling height and running speed freely without any mechanical change-over. The clever touch screen interface makes switching between various product sizes fast.
Clear production numbers improve the management of workshop capacity. Track daily throughput using actual consumption data, discover efficiency gaps, and optimise personnel schedules. This openness cuts down on waste and enhances cost forecasting for procurement teams.
Multi-axis adjustment devices provide fast changeover between product batches. Whether you’re doing small-batch customisations or high-volume production runs, the system delivers reliable accuracy with little to no downtime.
Specialized 90° Corner Labeling for Maximum Security
Product protection and anti-counterfeiting are today’s commercial imperatives. Our specialised 90° corner labelling arrangement provides tamper-evident sealing that would instantly show unauthorised entry.
This precise corner application provides three important functions: sealing, anti-counterfeiting and tamper-evident security. Ideal for medical packing, electronics boxes and luxury consumer items needing authentication.
The technique designates edges with exactly 90 degree wrapping for a continuous seal that breaks when an effort is made to open it. Your clients gain trust in the integrity of your goods and you lessen the possibility of counterfeiting.
The pressure rollers are adjustable so they will give you the same adherence even on challenging substrates or on wet surfaces. The strengthened application process maintains label placement accuracy on flat, square or slightly uneven container surfaces.
Industry-Specific Applications Across Challenging Environments
Pharmaceutical plants need cleanroom-compatible equipment with 100% label verification. Our Self Adhesive Labeling Machine may be coupled with vision inspection system for serialisation tracking on vials and ampoules.
Problems with moisture impair adhesion in beverage and cold chain operations. Where the filling rooms are humid, bottles wet with condensation are handled with strengthened pressure mechanisms and water-resistant controls.
Heavy duty systems for big gallon containers with uneven surfaces are required by the chemical and lubricant industries. Stabilisers clasp the belt from the top, preventing container movement during application, which results in distortion-free labels, even with the presence of chemical residues.
The modular design enables wrap-around belt mechanisms for round bottles and secondary press-down systems for flat or square packing. This adaptability means you don’t need a whole host of specialist devices on your manufacturing floor.
Construction Quality & Compliance Standards
Durability is the sum of the overall cost of ownership. Our labelling machines use SUS304 and SUS316 stainless steel and anodised aluminium alloy parts.
This material option is corrosion resistant in tough production conditions and compliant with GMP and ISO 9001 requirements. Your equipment retains accuracy over years of constant use without deterioration.
Advanced tension control systems eliminate label breakages while dispensing at high speeds. The high-torque servo motor drives allow the label feeding to be synchronised with the conveyor movement, avoiding the speed mismatch that causes wrinkling.
Door sensors and emergency brakes which instantly kill the operation when access panels are opened guarantee that safety interlocks are OSHAS standard. All design elements are created to meet CE and FDA regulatory compliance.
Flexible Customization & Global Support
Your manufacturing needs are special. We offer full OEM and ODM customisation to suit your individual application requirements.
The hardware arrangement conforms to the shapes and sizes of your containers. Software function customisation integrates with current MES systems and upstream coding engines for real-time batch printing.
We have production bases in South China, East China and South East Asia which enable us to fulfilll your orders quickly with flexibility in MOQ From single unit sample testing to mass manufacturing orders, we work to your schedule.
The Self Adhesive Labeling Machine benefits from the professional logistics coordination offered by our Southeast Asia equipment warehouses, enabling convenient import and export across the globe. You can choose FOB (Shanghai/Ningbo), CIF or DAP trading terms, with alternatives of sea freight, air freight, train transportation or international express.
FAQ
Q: How does the system identify translucent labels that are invisible to ordinary sensors?
A: We have ultrasonic sensors that can detect the variations in thickness between the label and liner. This allows for accurate dispensing if the photoelectric sensors cannot see through the clear material.
Q: What causes label wrinkling and how can it be avoided?
A: Wrinkling is caused by a speed mismatch between the conveyor and the dispenser. The linear speeds are exactly matched due to our synchronised encoders and this usual fault is avoided.
Q: Can one machine cope with diverse bottle shapes without any changeover?
A: Yes, modular design and guiding rails are changeable. For circular bottles the belts go around the bottles and for flat or square bottles there are supplementary press-down devices to provide uniform application.
Q: How much time is required for maintenance?
A: Peel plates and sensors are cleaned daily to avoid accumulation of adhesives. ±0.5 mm precision without substantial downtime – drive belts and rollers are inspected monthly.
Q: When the labels run out during production runs, the system automatically prints a new set of labels.
A: The automated 'Label End' sensor will send an alert and controlled stop to the upstream conveyors (if 2 or more are used) to prevent unlabelled goods from travelling down your line.
Q: How do you check quality before shipment?
A: Each device is Factory Acceptance Tested for static precise measurement, 48-72 hour dynamic load testing, label sensing accuracy, adhesive pressure and safety interlock tests with your exact containers.
