Custom Labeling Machine
2、Suitable for square, flat, oval, and vertical round containers, widely applied in daily chemical, food, beverage, pharmaceutical, and chemical industries.
3、Supports both standalone operation and integration into automatic production lines.
4、Equipped with PLC and HMI touch screen, it provides one-click parameter setting, easy operation, and quick product changeover.
5、Constructed with stainless steel and aluminum alloy, the machine is corrosion-resistant, easy to clean, and GMP compliant.
6、Synchronized double-side labeling ensures high precision with smooth application and no bubbles or wrinkles.
Custom Labeling Machine for Industrial Production Lines | High-Precision Double-Side Solution with PLC Control

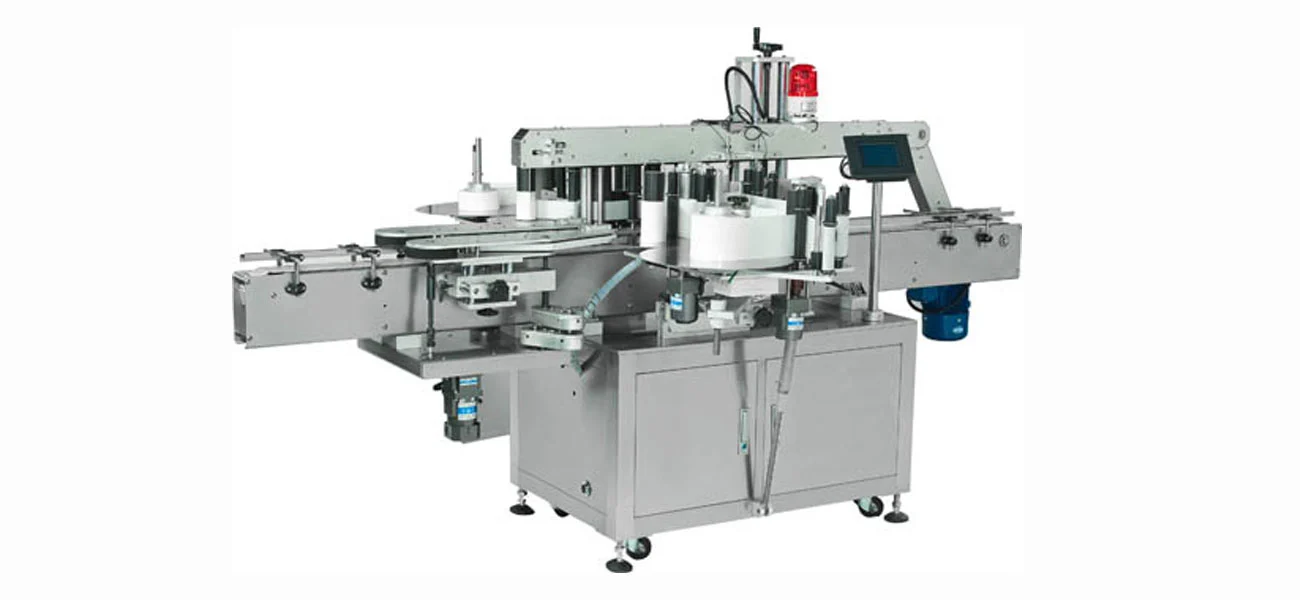

Shanghai Honghua Digital Equipment Co., Ltd. launches the JT-620 Custom Labeling Machine, a fully automated double side labelling machine for large volume industrial packaging. This product enables dual-label application in sync at 150 products/minute with ±1mm precision. The system is GMP compliant and flexible for stand-alone or in-line manufacturing processes, with PLC control, HMI touch-screen interface and stainless steel construction. With 20 years of manufacturing experience, 13 technology patents, this machine can handle labelling challenges in pharmaceutical, food, beverage and chemical industries and may be customised modularly.
Custom Labeling Machine: Comprehensive Dual-Side Labeling Technology
The JT-620 enables easy bottle separation, double-side label application, automatic smoothing and real-time counting. Your manufacturing line works automatically conserving personnel and reducing error.
The system can accommodate square, flat, oval and vertical circular containers in product widths from 15mm to 100mm. Labels are 10mm to 250mm length and 10mm to 105mm high with a custom size available for special uses.
Closed-loop tension control system controls label webs in high-speed operations. Electromagnetic brakes and accurate dancer arms prevent the liner from breaking and allow for label dispensing over lengthy runs of manufacture.
Advanced PLC Control System
The integrated HMI touchscreen interface provides operators with simple control. One-click parameter setting allows for product changeover in under 15 minutes, no tools or technical skills needed.
The control system allows to convert between single and double-sided labelling mode to easily adapt to product requirements. The distance for labelling, speed of running and pressure may be varied for various containers and label materials.
The link to Industry 4.0 ensures simple integration into ERP and MES systems. Enables OEE monitoring, scheduling of predictive maintenance and production analytics via real time data transfer.
Technical Specifications
| Parameter | Specification |
|---|---|
| Model | JT-620 |
| Power Supply | 110V/220V, 50/60Hz, 2300W |
| Labeling Speed | 0-150 products/min |
| Labeling Precision | ±1mm |
| Product Width | 15-100mm (customizable) |
| Label Size (H×L) | 10-105mm × 10-250mm (customizable) |
| Label Reel Diameter | Inner: 76mm / Outer: 360mm (max) |
| Machine Dimensions | 2800mm(L) × 1650mm(W) × 1700mm(H) |
| Air Pressure | 5kg/cm² |
Industrial-Grade Construction
The Custom Labeling Machine’s stainless steel and aluminium alloy structure is resistant to corrosion in tough industrial settings. All contact surfaces are GMP compliant and simple to clean.
IP65 electrical enclosures protect sensitive components from dust and moisture. The modular design means your maintenance crew can get to key parts quickly, minimising downtime and extending the life of the equipment to 20 years with attentive care.
The high torque servo motor drives guarantee the label placement accuracy under different loads. The system operates reliably stand-alone or in high speed conveyor systems with filling equipment upstream and packaging equipment downstream.
Customization and Integration Capabilities
Shanghai Honghua provides OEM and ODM services to fulfilll your production demands. Non-standard variants handle odd-shaped products, huge containers and multi-panel labelling.
Voltage adjustment makes the product internationally available with 110V, 220V and 380V. Your equipment is intended to operate in accordance with local electrical and safety standards.
The flexible MOQ laws mean you may order one sample before starting the entire production. When customising, our engineering team collaborates with your technical people to assure the compatibility of process.
Quality Assurance and Testing
All Custom Labeling Machines must pass FAT before delivery. The label positioning repeatability is validated for 10,000 cycles to assure ± 1mm precision for long time use.
Sensor sensitivity measurement reveals clear, metallic and specialised label identification. Conveyor synchronisation tests are used to simulate changing load conditions to maintain steady performance during production spikes.
Site Acceptance Testing (SAT) validates motor thermal stability and software integrity. The analysis of dynamic deviation demonstrates that the peak velocity vibration has no effect on the application accuracy.
Global Logistics and Support
Precision components are packed in a solid wood fumigated container with multi-layer shockproof foam and moisture-proof wrapping. The dedicated inkjet printhead and servo motor protection guarantees safe delivery by any shipping mode.
We provide professional papers for FOB(Shanghai/Ningbo), CIF & DAP trade terms. Depending on your delivery timeline, sea, air, train and international express are possible.
Production bases in south China, east China and southeast Asia can deliver orders rapidly. Regional shipping from Southeast Asian equipment warehouses reduces international customer lead times.
After-Sales Service and Technical Support
Your investment is backed by a complete 12-month guarantee on all mechanical and electrical components. Lifetime technical support includes continued help with remote diagnostics, on-site servicing and parts supply.
Our expert service team provides installation assistance, operator training and technology transfer to guarantee your workforce receives the best possible equipment performance. Fast reaction times help keep production interruptions to a minimum and maintain your output goals.
Several certification programs keep your technical people current on best practices for maintenance and advanced troubleshooting skills throughout the equipment lifespan.
FAQ
Q: Does this product work on clear on clear labels?
A: Sure. Instead of measuring light opacity, the system uses ultrasonic and capacitive sensors to measure material density for accurate placement of transparent labels on clear containers.
Q: What is the typical changeover time between different products?
A: Tool-free adjustments and digital position indications minimise changeover to less than 15 minutes. Your operators can swap product sizes rapidly—no additional technological expertise needed.
Q: How does the machine maintain label tension at high speeds?
A: Closed loop tension control technology using dancer arms and electromagnetic brakes avoids liner breaking and ensures constant web tension across the whole speed range.
Q: can we integrate with our current ERP system?
A: The machine is Industry 4.0 ready. It has OPC UA and MQTT protocols for easy data interchange with your enterprise resource planning and production execution systems.
Q: What maintenance is needed for the labelling head?
A: Regular maintenance entails cleaning the drive rollers with isopropyl alcohol and examining the peel plate for wear to maintain consistent label separation. Design service intervals are dependent on manufacturing volume.
Q : Do you have machinery for special-shaped containers ?
A: Yes. We develop specific non-standard models for tapering bottles, asymmetrical containers and multi-faceted items requiring particular label application processes.
Contact Us
Ready to optimize your labeling operations with Custom Labeling Machine? Contact our engineering team at [email protected] to discuss your specific requirements and receive a customized solution proposal.
