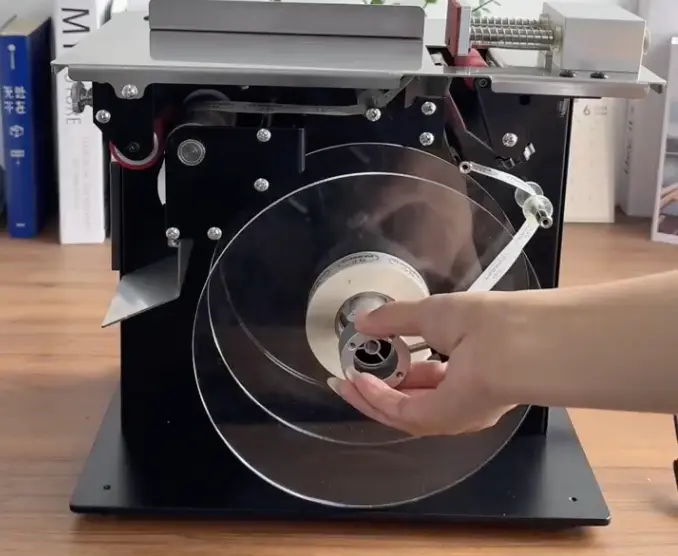

Right-Angle Sealing Labeling Machine

Right-Angle Sealing Labeling Machine | Automated 90° Corner Seal Applicator with Tamper-Evident Technology

Honghua Digital Equipment Co., Ltd. provides the Right-Angle Sealing Labeling Machine, an automated packaging solution for 90° corner labelling at the corporate level. The machine is equipped with powerful PLC control system, and can process 60-120 cartons per minute, with labelling precision of ±0.5mm to ±1.0mm. It has variable labelling height, variable conveyor speed, integrated counting statistics. And it lasts 20 years. It is manufactured from SUS304 stainless steel. The dual-stage adhesion approach offers tamper-evident sealing, anti-counterfeiting traceability and reliable performance in pharmaceutical, electronics and cold-chain logistics applications.

What Is a Right-Angle Sealing Labeling Machine?

This automated machine applies adhesive labels to the 90-degree corners of packing boxes and folds them into a 'L' or 'C' to seal.

It solves important industrial problems that flat labellers are facing. Manual labelling is hampered by low productivity, inconsistent placement, and high labour costs. Servo-driven synchronous tracking eliminates skewing and misalignment.

The corner-fold design provides three basic goals. It recognises items using barcode or QR code. It seals box closing for structural integrity. When opened the label breaks apart, offering tamper-evident protection.

This technology is the benchmark for areas that need tight security and efficiency.

Technical Specifications & Parameters

Key Technical Advantages & Properties

High-Precision Servo Control

The high-torque servo motor drive mechanism synchronises the label dispense with the conveyor motion. This avoids label stretching or wrinkling even at highest speed. Your manufacturing line is constant in quality across every item.

Multistage Adhesion Technology

We have a two-stage application technique, using increasing pressure. Then the soft-silicone roller expels air from center outward, pre-applying the label with the brush. This removes the bubbles and guarantees 100% adherence on both horizontal and vertical surfaces.

Manufacturing according to GMP

SUS304 stainless steel and T6 aluminium alloy are in accordance with pharmaceutical hygiene. The corrosion-resistant materials are dependable in cleanroom conditions and satisfy tight regulatory criteria.

Smart PLC Control System

Labelling height and running speed are adjustable freely using touch screen interface. A built-in counter keeps track of label consumption in real time. This provides you with precise production data for capacity planning and quality checks.

Flexible Modular Architecture

Adjustable guide rails and hand-wheel positioners provide for fast changeover. Change carton sizes in under 10 minutes with no special equipment.

How Quality Control Ensures Your Production Reliability?

Labeling Precision Verification

Digital imaging technologies check every fold of a corner to make sure it is centred. The equipment guarantees an accuracy of ±0.5mm throughout the 24-hour manufacturing process.

Adhesion test

Each Right-Angle Sealing Labeling Machine undergoes a 24 hour peel and environment ageing simulation test before being sent. This inhibits corner lift in cold storage with severe humidity or temperature changes

Auto Detect & Reject

Embedded CCD vision sensors detect lost labels, wrong barcodes and wrinkles. Any failures are promptly sent to a reject bin, saving your brand.

Validation of mechanical endurance

All units are burn-in tested for 72 hours continuous. Industrial findings illustrate motor stability, sensor precision and the dependability of PLC.

International Compliance Standards

Electrical safety & EMC certified Your equipment is out of the box equipped to meet world-wide installation regulations.

Industry Applications Across B2B Environments

Pharmaceutical Packaging

Pharmaceutical boxes are sealed with tamper-evident seals for regulatory track-and-trace compliance. The 0.5mm accuracy is in line with FDA and EU serialisation regulations.

High-end electronics manufacturing.

Seal security seal smartphone and semiconductor packaging to prevent unauthorised access. The static-control compliant design provides safe operation in ESD cleanrooms.

Cold Chain, Logistics

Heavy shipping labels on corrugated boxes in cold storage with high humidity. With the corner-fold mechanism, labellers become caught in temperatures between -20°C and +40°C.

Cosmetics, luxury

Matching Corner Seals Unboxing The bubble free application improves brand image and eliminates counterfeiting.

Why Professional Buyers Choose Shanghai Honghua?

20 Years Manufacturing Experience

Our manufacturing plants in South China, East China and Southeast Asia producing the Right-Angle Sealing Labeling Machine guarantee consistent capacity and timely delivery. Multiple plant sites mitigate your supply chain risk.

Technical patents 13

Proprietary advancements in label die-cutting, high-speed transferring and printhead drive control provide you performance that rivals can’t match.

Full OEM/ODM Customisation

We customise voltage ratings, control interfaces and mechanical dimensions to meet your manufacturing environment. Professional engineering help is available for single unit samples as well as for large-scale orders.

Southeast Asia Warehouses

Equipment storage facilities close to your market mean speedier import processing and lower shipping costs for clients in Thailand, Vietnam, Malaysia and the Philippines.

Professional After-Sales & Technical Support

Every machine comes with a 12-month warranty and lifelong technical help. Our service staff can do remote diagnostics, help you with on-site installation and offer replacement parts.

Professional export packing using fumigated solid timber boxes and multi-layer foam protection. Generally, domestic customs clearance will be completed in 1-3 working days.

We accept various trading terms such as FOB Shanghai or FOB Ningbo, CIF, DAP via sea freight, air freight or rail transportation.

FAQ

Q1: How does the machine avoid air bubbles at the corner fold?

A: The dual-stage brush and soft-silicone roller technology exerts progressive pressure that expels air from the center outward. This guarantees easy, bubble-free adherence to all packages.

Q2: Does it handle varied carton sizes?

A: Yes. Changeover times are less than 10 minutes thanks to adjustable guide rails and hand-wheel positioners. You can produce several SKUs without slowing down production.

Q3: Is the product compatible with clear labels?

A: Yes, absolutely. We use ultrasonic sensors which can detect holes in clear film labels when normal photoelectric sensors cannot.

Q4: What if a label roll runs out in operation?

A: The system has a PLC controlled missing label alert and auto stop. This means that any unopened goods will not make it past your quality inspections.

Q5: How frequently do you need maintenance?

A: We suggest cleaning rubber rollers and sensors regularly with isopropyl alcohol. This provides  friction and detection precision for reliable long-term performance.

Contact Us

Enhance your packaging line efficiency with our proven Right-Angle Sealing Labeling Machine.
