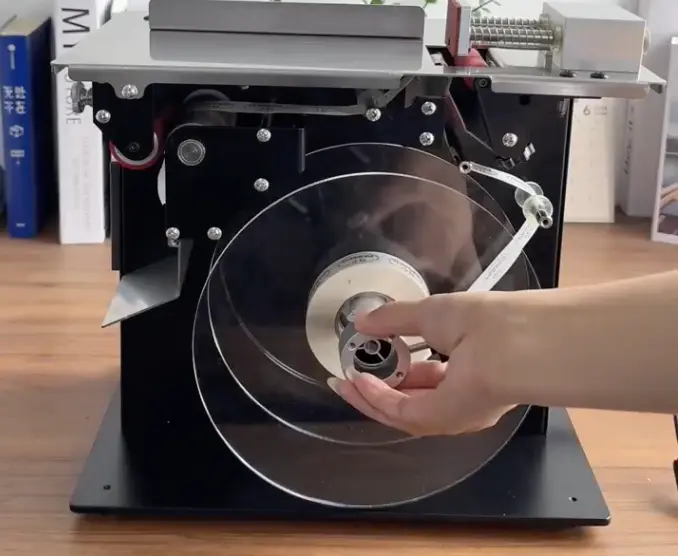

Semi-Automatic Labeling Machines
2、It is suitable for a variety of flat products and performs precise 90° corner labeling for secure sealing, traceability, and tamper resistance.
3、Designed for tamper-proof labeling of different packaging boxes, it easily handles small-batch and multi-batch production.
4、Backed by a 20-year service life and lifetime after-sales service support.
5、Multiple production factories in China ensure quick order delivery.
6、Equipment warehouses in Southeast Asia provide efficient import and export logistics.
Semi-Automatic Labeling Machines | 90° Corner Sealing Solution for Efficient Flat Product Packaging
Shanghai Honghua Digital Equipment Co., Ltd. offers industrial-grade Semi-Automatic Labeling Machines that use sophisticated PLC control systems to accurately apply flat-surface labels. Our system can output 20-50 pieces/min with ±0.5mm placement accuracy, customisable labelling heights and running speeds. The machines are equipped with automated production counting modules and 90° corner labelling, with 20 years of manufacturing expertise and 13 technical patents. These compact SUS304 stainless steel seals are 34cm×21cm×28cm, require less than 500W and offer reliable tamper-evident sealing for small batch and multi-batch manufacturing applications.
What Are Semi-Automatic Labeling Machines?
Human and automated manufacture of precision-engineered packaging solutions. The operator loads bottles, jars or flat packing onto the jig and sensor-triggered mechanisms peel, dispense and adhere.
The device eliminates label mis-alignment, bubbling and throughput limitations for small to medium production batches. ±0.5mm accuracy with stepper or servo-driven motors. Less waste. Better brand visibility.
Core Technical Properties
High-end models feature modular architecture with corrosion-resistant materials meeting GMP standards. Key specifications include:
| Parameter | Specification |
|---|---|
| Labeling Speed | 20-50 pieces/minute |
| Positioning Accuracy | ±0.5mm |
| Label Roll Inner Diameter | 76mm |
| Maximum Label Width | 150mm |
| Power Consumption | <500W |
| Machine Dimensions | 34cm × 21cm × 28cm |
| Material Construction | SUS304 Stainless Steel / T6 Aluminum Alloy |
| Control System | PLC with Photoelectric Sensors |
Advanced photoelectric sensors detect label gaps with microsecond precision. The motor stops exactly at the required peeling edge for consistent application quality.
Intelligent Production Management
Our PLC electric control system can modify the labelling height and the operating speed freely. The output counting module built-in counts the consumption of labels in real time.
You obtain transparent production figures for efficient workshop capacity planning. This is especially useful if you’re dealing with many SKUs or want to confirm order completion rates.
The function of counting statistics removes inaccuracies of human counting. Your team may concentrate on quality checks instead of documentation responsibilities.
Specialized 90° Corner Labeling Technology
There are three main advantages that the specialised corner labelling feature brings to your packing operations:
Secure Sealing: Labels wrap around 90 degree edges for tamper evident seals on box flaps and folding cartons.
Anti-Counterfeiting Protection: Corner location makes opening unauthorised products readily obvious, preserving brand integrity and customer safety.
Traceability Enhancement: Sealed corner label remains attached during distribution, making batch numbers and QR codes always accessible for supply chain traceability.
This arrangement is simply applicable for many packing box types. You can go back and forth between small-batch testing runs and conventional production without having to reconfigure equipment.
Versatile Application Scenarios
Semi-Automatic Labeling Machines excel at high-mix, low-volume production in a variety of industries:
Pharmaceutical & Laboratory: Correctly label small-batch clinical trial vials, reagent tubes for use in a sterile environment.
Craft Cosmetics: Manage boutique perfume and organic skincare containers in tapered, square, and cylindrical shapes, preserving a premium label look.
Specialised Chemical Manufacturing. Apply GHS-compliant warning labels to containers of industrial lubricants with consistent adhesive strength independent of temperature or chemical residues.
The flat-bed design handles a variety of product shapes. Uniform labelling is maintained and flexibility of the production line is improved.
Quality Assurance Protocol
Mechanical stability and electrical dependability are guarantyd by strict quality control. Our inspection processes are:
Accuracy Verification: Testing label deviation for 100 unit runs to verify variation within +/-1mm tolerance.
Motor Torque Consistency: Checking the heat dissipation and stability of the torque of stepper/servo motors over 8-hour continuous cycles.
Sensor Sensitivity Calibration: Calibration of U-shaped label sensors to differentiate between backing paper and label substance (transparent labels need ultrasonic sensing).
Adhesion Integrity Test. Check for edge curl or bubble development after labelling.
The Factory Acceptance Tests (FAT) and the Site Acceptance Tests (SAT) are made in accordance with CE regulations for electrical safety and electromagnetic compatibility.
Manufacturing Support Infrastructure
Multiple manufacturing sites in South China, East China and Southeast Asia for fast order fulfilment. Our equipment warehouses in Southeast Asia provide effective import-export logistics to our worldwide clientele.
You get a 20-year equipment service life and lifelong technical support. All parts are covered by our 12 month guarantee and we have a rapid replacement part supply.
The Semi-Automatic Labeling Machines are packed with professional export packing in fumigated solid oak box with multi-layer shockproof foam, feature independent moisture protection for precision components, and domestic customs clearance is typically completed within 1-3 working days.
FAQ
Q: Why are my labels wrinkling on round bottles?
A: Usually this is caused by a mismatch in bottle rotation and label dispense rates. Usually this is solved by adjusting the tensioning arm or the pressure of silicone roller;
Q: Can the machine be used with translucent labels?
A: Yes, but transparent labels need special ultrasonic sensors instead of normal infrared sensors to sense the density variations between clear labels and liners.
Q: What upkeep keeps it accurate in the long term?
A: Clean rubber rollers with isopropyl alcohol daily to eliminate adhesive build-up. Lubricate drive chains and gears monthly for smooth performance.
Q: How to best process tapered containers on flat-bed machines?
A: You need special conical adjustment jigs or a machine with a tilting labelling head to match the angle of the container wall.
Q: Does the machine need compressed air?
A: Ordinary electric versions don’t require compressors. However, devices equipped with pneumatic code printers or tamp-on applicators need a constant air supply of 4-6 bar.
