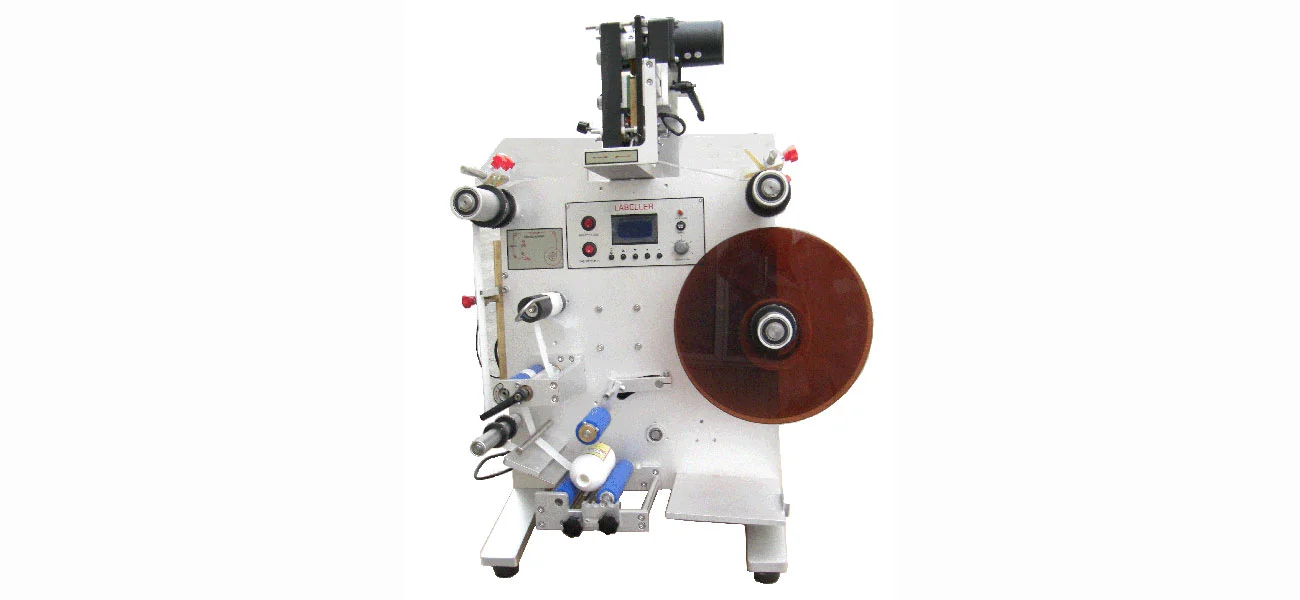

Semi-Automatic Round Bottle Labeling Machine
2. Manual bottle loading with automatic label dispensing and application ensures simple operation and consistent labeling.
3. Suitable for plastic bottles, glass bottles, metal cans, and other cylindrical containers across various industries.
4. Standalone operation, easy maintenance, and an economical upgrade from manual labeling.
5. Designed for a 20-year service life with lifetime after-sales service support.
6. Multiple production factories across China ensure fast order delivery.
7. Equipment warehouses in Southeast Asia support convenient global import and export.
Semi-Automatic Round Bottle Labeling Machine | Desktop Tabletop Labeler for Efficient Small-Batch Production
Shanghai Honghua Digital Equipment Co., Ltd. offers accurate desktop Semi-Automatic Round Bottle Labeling Machine (Model JT-130) which is fitt for small-to-medium batch operations. This desktop labelling system has 13 technical patents and 20 years of manufacturing expertise, with ±1mm labelling accuracy at rates of up to 25 bottles per minute. The machine can handle bottle diameters of 40-100mm and label sizes of H:20-105mm to L:20-250mm. 304 stainless steel and aluminium alloy, basic GMP hygiene requirements, 20 years design service life, 12 months warranty and lifetime technical support.
What Are the Core Features of the Semi-Automatic Round Bottle Labeling Machine?
This bench-top labelling system connects human and automated production operations. When filled by human into bottles, the device automatically distributes and attaches labels, ensuring labelling quality and reducing labour.
The integrated PLC control system with digital touch panel enables parameters to be changed with one click. The inexperienced operator can pick it up in one minute. Smart functions such as no-bottle stop labelling, fast fault alerts and output counts make production monitoring easier.
Advanced fiber-optic sensors can even detect transparent or metallic labels. In the case of manual labelling, bottles may tilt and move, while the rotating bottle support system stabilises bottles.
Technical Specifications
| Parameter | Specification |
|---|---|
| Model | JT-130 |
| Power Supply | 110V/220V, 50/60Hz, 240W |
| Labeling Speed | 0-25 bottles/min |
| Labeling Precision | ±1mm |
| Bottle Diameter | 40-100mm (customizable) |
| Label Size | H:20-105mm, L:20-250mm (customizable) |
| Label Reel Diameter | Inner 76mm, Outer 360mm (max) |
| Machine Dimensions | L600 × W500 × H800mm |
| Frame Material | 304 Stainless Steel & Aluminum Alloy |
| Service Life | 20 years (design specification) |
Precision Engineering Advantages
Elastic silicone roller pressing method ensures bubble-free, wrinkle-free labelling with adhesion. The label surface is compressed evenly, reducing air pockets that impair appearance and adhesive performance.
Tool free, multi-direction adjustable stations for fast bottle size adjustments. This flexibility satisfies diverse production requirements and reduces format changeover delay.
Stainless steel 304 construction, easy to clean and maintain, rust and corrosion resistant. This material selection is permanent even under humid or chemically aggressive production circumstances.
Low energy consumption of 240W and ultra-low failure rate ensure the operating economy. Simple maintenance design delivers maximum production uptime and reduces TCO.
Versatile Industrial Applications
Round bottle labellers are used in industries to label round bottles. The machines are designed to print regulatory compliance labels on glass vials and diagnostic tubes with batch code legibility for pharmaceutical and nutraceutical companies.
Craft beverage and boutique distilleries need labels on spirits bottles and cold-brew coffee cans to align. The moisture-resistant labelling process keeps aesthetics intact throughout distribution and retail.
This equipment is used by chemical and agricultural companies to label HDPE or metal oil and fertiliser containers. Reliable sensor system for dusty or greasy industrial conditions.
The machine’s ability to handle plastic bottles, glass containers and metal cans of different diameters is beneficial to cosmetics, food processing and home product companies.
Quality Control and Compliance
The strict inspection processes for the Semi-Automatic Round Bottle Labeling Machine are in line with worldwide production norms. Repeatability tests for label positioning assure vertical and horizontal alignment during long manufacturing runs.
Ultrasonic sensors may detect translucent labels because of the sensor response latency. Adhesive peel strength testing confirms the roller application with no air or bonding issues.
MTBF is based on a 72-hour continuous operating stress test. A validation process provides operational stability for real-world manufacturing.
Throughout manufacture basic GMP hygiene requirements apply and Electrical systems are safe in moist or high-static situations. We quality inspect our equipment in South China, East China and Southeast Asia before shipping.
Customization and Integration Options
Your production demands may need specialised setups. OEM and ODM services include hardware modification, software function adjustments, and application-specific solutions.
The device provides synchronized batch coding during labeling utilising hot-stamping date coders or inkjet printers. This saves secondary processing and reduces handling expenditures.
Custom positioning fixtures may be designed for unstable container profiles or bottle geometries. Custom voltage (110V/220V/380V) insures facility electrical infrastructure compatibility.
Sample testing, small-batch orders, and large-scale manufacturing are facilitated by low minimum order quantities. Our variable manufacturing capacity complements your business growth.
Logistics and After-Sales Support
Shanghai Honghua offers the Semi-Automatic Round Bottle Labeling Machine with full worldwide trading capabilities, with FOB (Shanghai/Ningbo), CIF, and DAP terms available. Our Southeast Asia warehouse facilities provide efficient worldwide distribution via sea freight, air freight, rail transportation, and expedited delivery alternatives.
Professional export packing incorporates fumigated solid timber boxes with multi-layer shockproof foam protection. Precision components get separate moisture-proof packing to guarantee safe delivery.
Your purchase includes a 12-month warranty with lifelong technical support. Our service staff offers remote help, installation instruction, replacement parts supply, and maintenance support throughout your equipment's operating life.
FAQ
Q: How soon can operators move from one bottle size to another?
A: Adjustable guide rails and sensor location allow format changeover in less than 10 minutes, without the need for specialised equipment or technical knowledge.
Q: What is label bubbling and how is it solved?
A: Bubbling is often due to unequal pressure or pollutants on the surface. Adjust the silicone wrap-around roller pressure and make sure bottles are clear of condensation or oils before labelling.
Q: Does the machine work well with clear labels?
A: Yes, if they are fitted with ultrasonic sensors instead of the typical photoelectric sensors. Ultrasonic detection can penetrate to detect any switching between label and backing paper, irrespective of opacity of the materials.
Q: What is the life of the motor?
A: Industrial-grade stepper motors are rated for 10,000+ hours of operation with regular maintenance including dust clearance and belt tension checks.
Q: Does the system allow changeable data printing?
A: Most versions may be fitted with ribbon hot-stamping coders or inkjet printers to coordinate batch coding with the labelling process, allowing the application of changeable information.
Q: How does the machine ensure labelling accuracy?
A: The innovative rotating bottle support mechanism makes the container stable, and the high sensitivity sensors control the exact timing of label release, attaining ±1mm precision at all times.
Contact Us
Ready to upgrade from manual labeling with Semi-Automatic Round Bottle Labeling Machine? Contact at [email protected] to discuss your specific bottle labeling requirements and receive a customized solution proposal.
