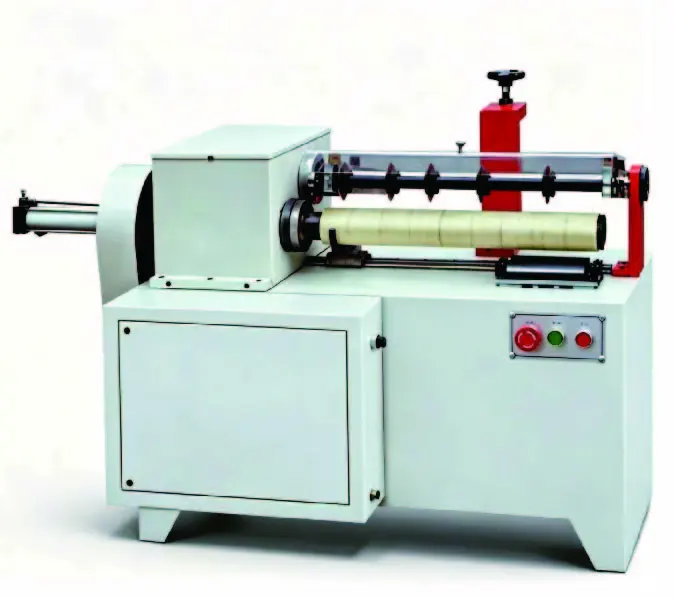

Automatic Paper Tube Cutting Machine
2. Servo feeding and a precision carbide blade ensure accurate, burr-free cutting and stable performance for various paper tube sizes.
3. Ideal for cutting paper tubes, tape cores, film cores, and similar products, making it a cost-effective replacement for manual cutting.
4. Built for a 20-year service life with lifetime after-sales service support.
5. Multiple manufacturing facilities across China enable fast production and delivery.
6. Southeast Asia warehouses support efficient global shipping and import/export operations.
Automatic Paper Tube Cutting Machine - Industrial Precision Cutting Solution with PLC Control & Servo Technology
Shanghai Honghua Digital Equipment Co., Ltd. presents high performance Automatic Paper Tube Cutting Machine with PLC control and servo feeding. This industrial quality equipment is capable of cutting with an accuracy of ±0.1mm, processing up to 15 pieces per minute with a maximum width of 500mm. The equipment is equipped with a heavy duty carbide blade system and an integrated touch screen interface, ensuring a 20 year service life and no manual cutting. This system is an automatic paper tube feeding, positioning, cutting and discharging system. We have 13 technological patents and 20 years production experience.
What Makes Our Automatic Paper Tube Cutting Machine Different？
Paper tube manufacture is all about speed, homogeneity and zero faults. Hand sawing leads to uneven edges, waste and safety problems.
Our product smartly automates to solve such difficulties. The equipment feeds, places, cuts and discharges automatically without human intervention.
Our precision carbide blade technology cuts thin wall tubes without crushing or deforming the tubes. The servo-controlled feeding mechanism ensures that dimensions are maintained true for thousands of cycles.
Technical Specifications & Performance Parameters
| Specification | Details |
|---|---|
| Model | 500 |
| Cutting Speed | 15 pieces per minute |
| Maximum Inner Diameter | 1 inch / 3 inches |
| Maximum Cutting Width | 500mm |
| Number of Rotary Blades | 5 |
| Total Power | 3.0kW |
| Power Supply Voltage | 220V/380V ±10% |
| Overall Weight | 270kg |
| Cutting Precision | ±0.1mm tolerance |
| Service Life | 20 years |
| Control System | PLC with touch screen |
Core Advantages That Drive Production Efficiency
Fully Automated Workflow
The Automatic Paper Tube Cutting Machine runs continually without monitoring. Automatic feeding systems remove tubes from the input conveyor. Each piece is positioned by precision sensors before cutting. Automatic post-cut discharge allows for 24/7 production runs.
advanced Cutting Precison
Servo motors manage feed distances to micrometre precision. The hardened alloy blade keeps its edge during long production runs so every cut is to your standards with no burrs or distortion.
Universal Application Compatibility
Parameters adjustable for different sizes and materials of tubes. Whether you manufacture adhesive tape cores, film winding tubes, non-woven fabric rollers or packing cylinders – this equipment is designed for you.
Touch Screen Control Intuitive
Operators input cutting lengths, speeds and batch sizes using a graphical user interface. The system has many job profiles for fast change-overs. Your crew is protected by emergency stop features and safety interlocks.
Industrial-Grade Ruggedness
The increased integrated frame absorbs the vibration and decreases the noise in operation. Strong parts are not easy to break and wear out, so the machine may run all the time with just a short maintenance break.
Industries Served & Application Scenarios
Adhesive Tape Manufacturing
Manufacturers of masking tape, double-sided tape and speciality adhesives demand clean edges for cores. Our equipment minimises tape snagging and maintains uniform winding tension throughout manufacturing batches.
Yarn & Textile Processing
High-density yarn carriers must be able to endure centrifugal forces during winding operations. Precise perpendicular cuts to retain structural integrity, avoiding wobbling that breaks threads.
Film & Packaging Industry
Heavy roll cores are required for stretch film, protection film and industrial wrapping materials. Our cutting technology cuts thick-walled tubes without delamination, thus strength is maintained for tough logistical situations.
Solutions for Protective Packaging
Large diameter tubes for transport of steel coils, architectural films and building materials need strong construction. The machine is capable of processing high-ply kraft paper without affecting its structural integrity.
Quality Assurance & Manufacturing
Each Automatic Paper Tube Cutting Machine is subjected to extensive testing before dispatch. Our quality control process includes perpendicularity testing with precision tools, blade run-out analysis and 100-cut sample dimensional tolerance verification.
Pneumatic pressure stability testing without deformation of the tubes. Light curtains and emergency stops are tested many times in safety interlock systems to meet international industrial regulations.
20 years manufacture provide dependable equipment for Shanghai Honghua. With our manufacturing facilities in China and warehouses in Southeast Asia we are able to give rapid installation aid and keep spare parts to minimise downtime.
FAQ
Q: How does machine decrease dust while cutting?
A: High-speed circular blades cut paper cleanly rather than grinding it. This blade design minimises airborne particles over ordinary sawing for a cleaner work area.
Q: Does the system accommodate different tube diameters without downtime?
A: Yes. Diameter Variations in Less Than 10 Minutes Using Quick Change Mandrel Devices and Adjustable Pneumatic Grippers Operators store job parameters in PLCs for easy access.
Q: How often do I need to replace the cutting blades?
A: Check blades every 100,000 cuts or so based on paper density. After 500,000–1,000,000 cycles, professional sharpening or replacement is required. We include blade care instructions with each device.
Q: Can current paper tube winders be integrated?
A: Yes, for sure. The machine is synchronised with upstream equipment via Modbus or Ethernet/IP. This coordinates cutting speed and winder output for complete automated production.
Q: How does the equipment avoid crushing impacts on thin-walled tubes?
A: Precision controlled pneumatic soft-start clamping pushes down slow. The high RPM blade turns to cleanly introduce material without distortion.
Contact Us
Ready to upgrade your paper tube production capabilities with an Automatic Paper Tube Cutting Machine? Contact us at [email protected] for technical specifications, quotations, and application support.
