Label Inspection Machine

Label Inspection Machine - High-Precision Vision Inspection System for Enterprise Label Quality Control

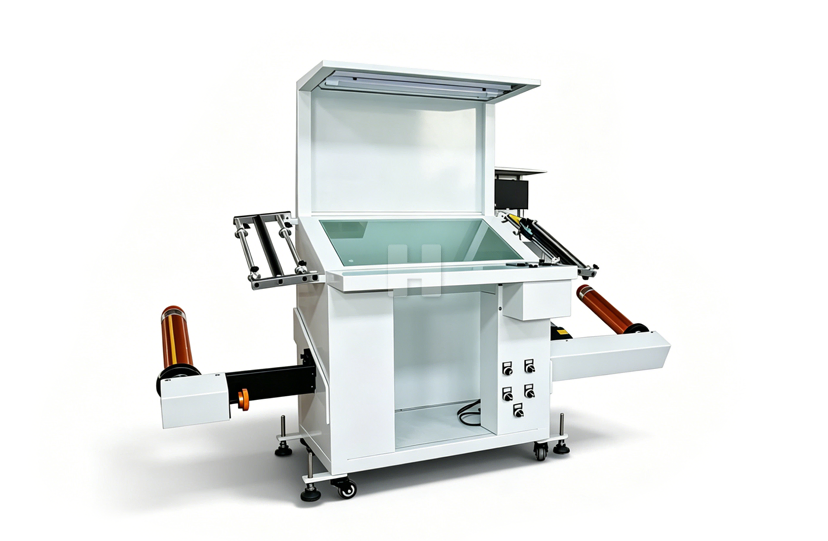

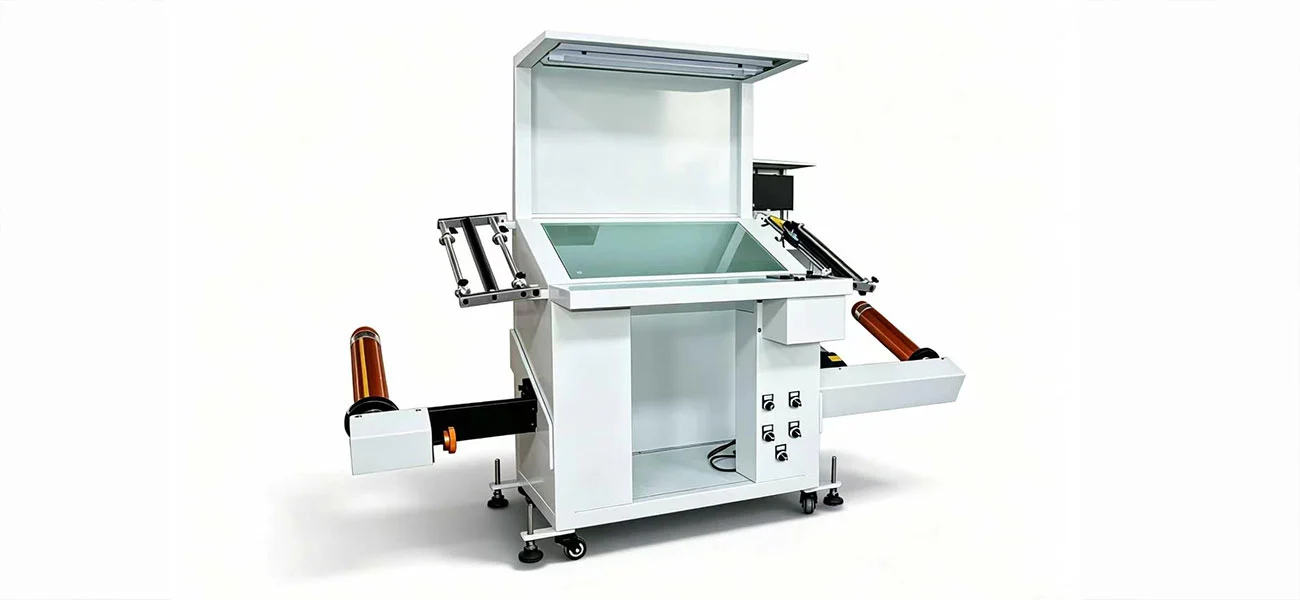

In high-volume production applications, the Label Inspection Machine Model 350 from Shanghai Honghua Digital Equipment Co., Ltd. finds 100% errors on all label materials. This industrial equipment has a 350×920 mm inspection platform that can accept webs up to 350 mm wide and unwind/rewind diameters up to 500 mm. It’s a single unit so once it’s powered up the machine is plug-and-play. This system handles quality control issues in packaging processes for pharmaceutical, food & beverage and electronics with 20-year service life and lifetime after-sales support from several manufacturing sites in China and Southeast Asia.

Why  Label Inspection Machines：Comprehensive Defect Detection Capabilities

In your manufacturing process you must carefully inspect self-adhesive labels for look, print, content, reverse winding and dimensional variances. The equipment employs high-resolution vision and lighting for spotting tiny defects that human inspection misses.

The automated quality control system replaces costly manual sorting and eliminates human error. At production rates you may verify printing integrity, text accuracy, barcode readability, and label positioning to confirm each item satisfies tight compliance standards.

The system performs real-time detection of ink spills, changes in registration, colour mismatches, torn edges and missing pieces. This technology provides regulatory compliance for verification of serial numbers and presence of Braille in pharmaceutical applications.

Integrated Practical Functions for Operational Efficiency

This device has a small footprint and offers a number of productivity improving functions in addition to fault detection. The automatic meter counting and piece counting features deliver precise production data without any extra external sensors.

Electronic speed control enables you to set your inspection speed to match your current line speed exactly. Speeds may be modified on the fly to suit varying sizes and materials of labels without any mechanical changes.

Operators may handle inspection activities hands-free using a foot pedal control, boosting workflow efficiency during roll changes or quality verification sampling. This ergonomic design minimises operator strain during long manufacturing runs.

The Label Inspection Machine has a small body design (overall dimensions 1900×450×1200 mm) that allows integration into current production layouts without the need to modify the facility. It functions effectively from a typical 220V±10% power supply voltage and has a total power usage of 0.5 kW, resulting in lower operating expenses.

Technical Specifications

One-Piece Integrated Design Philosophy

Installation complexity sometimes causes delays in production beginnings and raises implementation expenses. With a one-piece construction process incorporated, this product does away with the need for assembly.

When it arrives, your crew just hooks it up and gets to work. No mechanical assembly. No software installation. No calibration delays. That design strategy cuts your time-to-production from days to minutes.

The one-piece design also maintains structural integrity thus decreasing the vibration-induced misalignment problems inherent in modular systems. Critical components retain factory calibration of positioning, ensuring precision inspection performance for the life of the machine.

Manufacturing quality control starts here at our facilities. All units are tested prior to shipping. You get equipment that has previously demonstrated its detection accuracy under simulated manufacturing scenarios.

Versatile Material Compatibility

Today’s packaging processes use a wide range of label substrates, including paper, film, foil, metallic finishes and transparent materials. Your Label Inspection Machine processes this range of materials without the need to alter setup for one manufacturing run to the next.

Specialised lighting setups eliminate glare from reflecting surfaces, while being sensitive enough to spot defects. The vision technology immediately adjusts to the surface characteristics whether checking matte paper medicinal labels or glossy metallic beverage labels.

This material adaptability allows you to use your equipment for different product lines. A single inspection machine for many packaging needs. Higher return on investment with capital equipment.

Controlled inspection platform surfaces for temperature sensitive materials and static-prone films. The device can preserve detection accuracy even while handling difficult substrates that baffle current sensor-based examination techniques.

Enterprise-Grade Reliability and Support

The more production equipment is down, the more it affects your bottom line. The 20 year design life of this system is an indicator of an engineering approach based on long term dependability rather than planned obsolescence.

Major component failures are still very unusual in our user base. Should you want technical assistance, you will have access to our life-time after-sales service network supported by equipment warehouses around Southeast Asia for fast parts availability.

Our technical staff can remotely diagnose, analyse system performance and tune detection settings without needing to visit a location. Should complicated problems arise, our specialists provide on-site help with reduced response times due to our regional service infrastructure.

It has a 12 month guarantee against component failure and manufacture faults. After the warranty ends, you will still have technical support, software upgrades and parts supply for the lifetime of your equipment.

Multi-Factory Production and Logistics Advantages

The time when you will get your delivery depends on how quickly we can make it and how efficient our delivery service is. Shanghai Honghua Digital Equipment has many factories in China, which makes it easy to provide products quickly in times of high demand.

This dispersed manufacturing strategy adds supply chain resiliency. If one plant is capacity constrained, then production moves to other plants without pushing out your delivery timeline.

We also now have a Southeast Asian equipment warehouse which significantly speeds up delivery to clients in that area. International transactions are made simple with experienced customs clearing help and import/export paperwork support.

We have flexible trading terms including FOB (Shanghai/Ningbo), CIF, and DAP agreements. You may choose between sea freight (most cost-effective), air freight (for urgent deliveries), rail transportation or international express services. You may also choose your own preferred goods forwarder and we will supply you with precise logistical prices.

FAQ

Q: What fault sizes is this inspection system capable of detecting reliably?

A: The visual resolution is so sensitive that minute droplets of ink, hair-line scratches and registration changes, as small as 0.05mm2, are detected, even when they are not visible to the naked eye.

Q: How does the machine inspect highly reflective metallic labels?

A: Foil and metallic substrates tend to reflect light which might mask print faults. Specialised coaxial and dome lighting setups, together with polarising filters, will minimise the glare and disclose the defects.

Q: Can this system integrate with existing rewinding equipment?

A: Yes, the modular mounting design and PLC connection capabilities (supporting industrial communication protocols) allow for smooth synchronisation with your existing production line gear.

Q: Does the machine check for variable data such as serial numbers?

A. Advanced Optical Character Verification (OCV) algorithms check live captures against uploaded databases or pre-defined sequence logic to validate each individual code at production speeds.

Q: What is the inspection speed range of the system?

A: Web speeds allow for high speed production settings, while without compromising on detection accuracy throughout the entire 350 mm web width during long production runs.

Q: How do you vary detection sensitivity for various sorts of labels?

A: The intuitive software interfaces enable operators to set detection settings for particular sorts of defects, material attributes and quality criteria without any programming skills.

Contact Us

Ready to eliminate quality control bottlenecks in your label production operation with Label Inspection Machine? Reach out to [email protected] to discuss your application.
