Paper Tube Cutter Machine

High-Precision Paper Tube Cutter Machine | Industrial Automatic Cutting Solution for Packaging & Converting Industries

The Model 500 Paper Tube Cutter Machine, a high-volume automated cutting tool, is produced by Shanghai Honghua Digital Equipment Co., Ltd. in China. This servo-driven equipment works at 15 pieces/min with ±0.1mm precision, has a 500mm maximum cutting width and accommodates tubes from 1 to 3 inches inner diameter. 3.0kW system with PLC touch control, carbide spinning blades and automatic feeding for 24/7 production cycles. 270kg reinforced frame machine run.

Why Industrial Facilities Choose Our Automated Paper Tube Cutter Machine?

Manual cutting causes serious operational problems in modern manufacturing. Traditional processes produce paper dust that contaminates the production environment and damages electronic equipment. Inconsistent blades cause deformed tube edges and film tearing during high speed winding.

The device utilises circular knife technology and servo positioning to eliminate bottlenecks. In the adhesive tape, textile and industrial packaging sectors, automated cutting is used to assure the dimensional homogeneity of thousands of pieces produced each day. Your factory has reduced labour costs and increased safety of work and steady output that fits downstream criteria.

Advanced Engineering Features

Intelligent Control Architecture

The PLC based touch interface allows the operators to choose the cutting length, production quantity and the feed speed with one click. Recipe management stores 50 sets of parameters for quick production adjustment. Low material or the end of a cutting cycle activate the automatic stops.

Real-time monitoring of motor load, blade temperature & production counters. EN ISO 13849-1 safety standards: Emergency stop circuits halt activities within 0.2 seconds when photoelectric sensors detect foreign objects.

Accuracy of Servo Feeding System

Closed loop servo motors hold dimensional tolerances to ±0.1mm for lengthy manufacturing runs. As the equipment heats up to operational temperature, the feed parameters are changed using thermal expansion correction algorithms. The equipment maintains cutting precision throughout 12 hour shifts without human calibration.

Quick Release Mandrels Change Diameter in Less Than 5 Minutes. Pneumatic gripping arrangements prevent tube slippage during high speed cutting cycles.

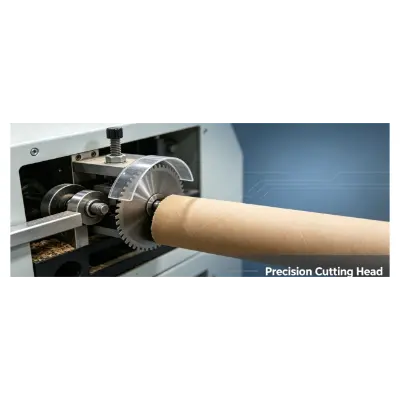

Industrial Grade Cutting Mechanism

Five burr-free rotating carbide blades slice paper tubes without deformation. Heat treated alloy steel will have a life of 80,000 to 100,000 cuts. Blade angles are variable for wall thicknesses between 2 and 20 mm.

The Paper Tube Cutter Machine features dust extraction apertures incorporated into standard hoover systems to prevent paper particles from interfering with servo motors or guide rails. Its operational noise level is 75dB, and it is fitted with anti-vibration mounts.

Technical Specifications

Core Operational Advantages

Fully integrated automated Continuous Production Feeding, positioning, cutting and discharge devices function without operator intervention. Unattended operation allows nocturnal manufacturing runs, optimising equipment use.

Dimensional Consistency – No ±2mm fluctuation associated with hand cutting when using servo powered feeding. Edge verticality testing demonstrates that squareness is maintained within 0.5° tolerance throughout manufacturing batches.

Multi-Industry Compatibility: Adjustable parameters are able to handle adhesive tape cores, film winding tubes, yarn carriers and protective packaging cylinders. Speeds from 8 to 15 pieces per minute depending on density of material.

Easy to use Interface: Visual touch screen enables new technicians to finish training in less than 2 hours. Parameter storing prevents setup mistakes while changing products.

Long-Service Architecture 270kg rugged frame designed for 20-year operating life in high vibration settings. Its low maintenance design only requires periodic blade checks every 8 hours, reducing downtime.

Quality Assurance Protocols

All Paper Tube Cutter Machine are tested in several levels before dispatch. Dimensional repeatability testing consists of 500 sample runs where the length consistency is checked using laser sensors. Dynamic Balance Testing Records Motor Temp & Vibration Levels At Max RPM

Edge quality examination is performed using digital microscopy to determine cut squareness and surface smoothness. Safety logic verification ensures emergency stop reaction times satisfy international machinery regulations. All devices come with calibration certifications and inspection reports.

Industry Applications

Adhesive Tape Manufacturing Produces 1,200 rpm winding operations for BOPP tape cores and masking tape tubes where edge smoothness prevents ripping of film.

Textile & Yarn Processing Custom-length yarn carriers for industrial looms with strong radial strain resistance and tight inner diameter tolerances.

5. Industrial Packaging: Manufactures heavy duty shipping tubes and protective cylinders with various lengths from 50mm to 500mm while keeping the structural integrity of the products exposed to vertical compressing.

Film & Non-Woven Fabric: Produces cores for stretch film, cling film and synthetic fabric rolls for use in automated packaging processes.

Global Support Infrastructure

Shanghai Honghua has production sites in South China, East China and Southeast Asia so that orders may be filled quickly. We stock parts in our warehouses for quick shipment by air freight or international express.

We support FOB (Shanghai/Ningbo), CIF, DAP transaction terms. The equipment is packed in fumigated solid wood containers with multi-layer foam protection for precise parts. The standard customs clearance process takes 1-3 business days.

Every computer is backed by 12 month warranty and life time technical assistance. Minimal production downtimes thanks to remote diagnostics and on-site servicing.

FAQ

Q: Why are there burrs or delamination on cut edges?

A. Burrs are usually caused by dull blades, or too low air pressure. The blade should be sharpened after 80,000 cuts. The air pressure should be maintained at 0.6–0.8 MPa for best cutting power.

Q: Can the machine handle multiple tube diameters?

A. Yes. Tool-free, quick-change mandrels change diameters between 1-inch and 3-inch tubes in less than 5 minutes. The parameter memory allows to immediately recollect cutting recipes.

Q: How do you make sure you are accurate on lengthy runs?

A: Closed-loop feedback servo motors automatically correct for mechanical heat expansion. Temperature sensors will initiate parameter changes when equipment exceeds operational limits.

Q: How often do cutting blades need maintenance?

A: Check blades every 8 hours of operation. Depending on paper density and wall thickness, professional regrinding is essential every 80,000 to 100,000 cuts.

Q: Do I need to remove the dust?

A: Integrated hoover systems are optional, but they prevent paper dust from fouling servo electronics and building up on precise guiding rails. Dust collection is an important part of the work environment and prolongs component life.
