Label Die Cutting Machine
2. Equipped with three photoelectric sensors for accurate tracking and positioning.
3. It is the ideal supporting equipment for flexographic printers, continuous screen printers, gravure printers and anti-counterfeit label printing lines.
4. Multiple models are available, compatible with standard international voltages.
5. Positioning precision: ±0.1 mm
6. 20-year service life with lifelong after-sales service support.
7. We have multiple production factories across China to guarantee fast delivery.
8. Equipment warehouses are located in Southeast Asia to facilitate import and export to various countries.
High-Precision Label Die Cutting Machine for Industrial Applications | Computer-Controlled Feeding & Positioning System

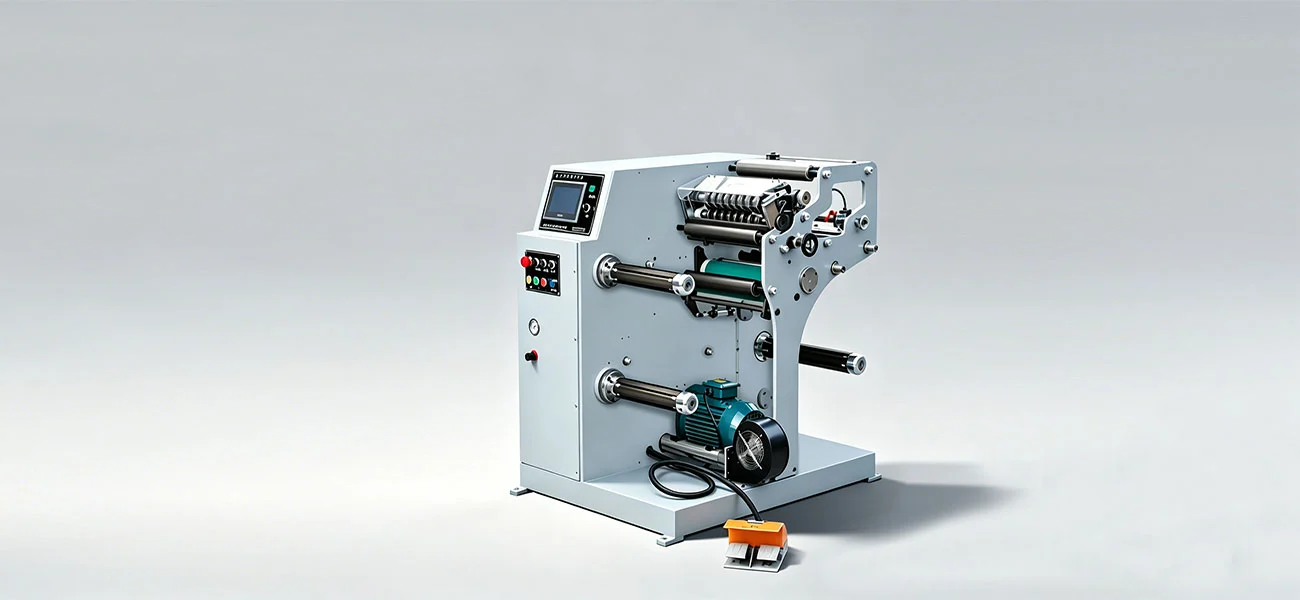

Shanghai Honghua Digital Equipment Co., Ltd. offers a new Label Die Cutting Machine for fast producing of industrial labels. The flat die cutting machine is computer controlled to ±0.1mm positional accuracy and 480 strokes per minute. The machine may be equipped with 3 photoelectric sensors for accurate tracking and processes materials up to 360 mm wide on a die plate surface of 370×370 mm. With a 12-month warranty and lifetime technical support, this machine offers consistent performance for pharmaceutical, logistical and electronic label manufacturing. It’s a robust design, born out of 20 years of manufacturing experience, with 13 technical patents to its name.
Precision-Engineered Label Die Cutting Machine Technology
This is an industrial system with servo-control technology and mechanical stability for 24/7 operation. The equipment has die-cutting accuracy of ±0.15 mm even at high production speeds.
Colour mark sensors avoid high speed registration drift, using real-time position feedback. The pneumatic system is able to keep the cutting pressure at 0.4-0.8 MPa for the whole substrate thickness without liner penetration.
Its compact dimension 3150×1400×1650 mm fits with common factory floor layouts. The net weight of the reinforced chassis is 3000 kg and decreases the vibration quality variations in continuous manufacture.
Versatile Material Compatibility & Integration
Our Label Die Cutting Machine is ideal for Flexographic, Continuous Screen, Gravure and Anti-Counterfeit Label Printing Lines. This compatibility allows for one-stop processing.

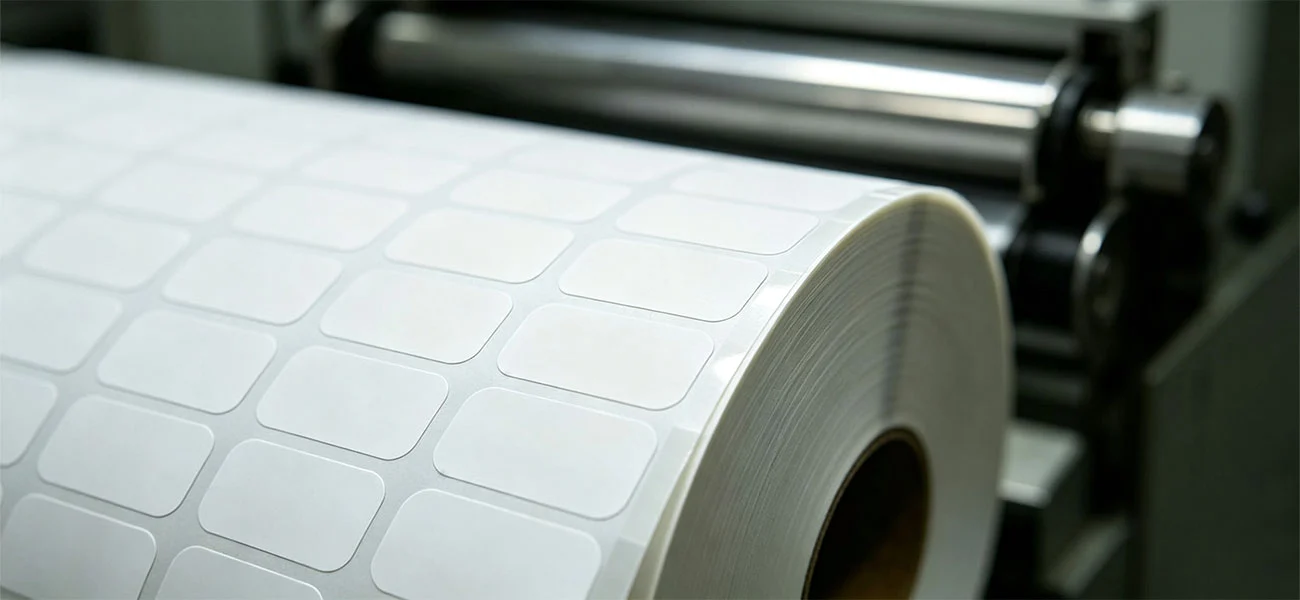

The technology handles sticky paper, film and composite laminates. 650 mm unwinding and rewinding diameters for largeformat production runs without roll changes.
International standard PLC control systems are available in 110V, 220V and 380V variations, providing global deployment options. The 18kW total power rating provides a balance of performance and efficiency.
Technical Specifications
| Parameter | Specification |
|---|---|
| Die-Cutting Speed | 480 strokes/min |
| Max Paper Feeding Width | 360 mm |
| Die-Cutting Accuracy | ±0.15 mm |
| Positioning Precision | ±0.1 mm |
| Effective Die Plate Area | 370×370 mm |
| Max Unwinding Diameter | 650 mm |
| Max Rewinding Diameter | 650 mm |
| Positioning Mode | Color mark sensor |
| Air Pressure Requirement | 0.4-0.8 MPa |
| Total Power | 18 kW |
| Voltage | 380V 3-phase |
| Machine Dimensions | 3150×1400×1650 mm |
| Net Weight | 3000 kg |
Core Performance Advantages
High-Speed Stable Operation Innovative feeding mechanism preserves material tension, boosting production capacity and eliminating setup waste in makeready.
Precision Photoelectric Positioning: Tracking with three sensors allows accurate registration independent of material and environment, eliminating faults.
Modular design, with optional hot stamping, UV varnishing and slitting equipment for full finishing on a single platform.
Touch Screen Control: Easy to learn operation training and new workers may become productive rapidly.
Key areas of the machine are coated with tungsten carbide and chromium for durability that can withstand millions of production cycles and last 20 years.
Industry-Specific Applications
Pharmaceutical Manufacturing: Automated medical dispensing systems – zero-defect removal of precision small format labels for vials and syringes.
Electronics & Technology: Precision die-cutting of heat-resistant polyimide tapes and circuit board protective sheets under controlled circumstances.
Logistics & E-commerce: Thermal shipping labels and multi-part logistics forms with integrated waste stripping for high volume daily production.
Food & Beverage Packaging: Finished FDA compliance adhesive labels with complex geometries and variable data printing for product tracking.
Manufacturing & Global Support
Shanghai Honghua has manufacturing bases in South China, East China and Southeast Asia, providing fast delivery and local technical assistance. Our warehouses in Southeast Asia allow us to operate efficiently in import/export.
All systems are subjected to rigorous quality assurance procedures under ISO 9001 production standards. CE safety certificates comply with worldwide equipment requirements.
We provide flexible OEM and ODM customisation covering hardware configuration, software functionality and application-specific solutions. MOQ regulations allow testing of single units with big production orders.
The Label Die Cutting Machine are packed for shipping in fumigated sturdy timber boxes and multi-layer shockproof foam protection. Individual moisture-proof packing for precision parts. Domestic customs declaration within 1-3 working days.
Reliable Partnership & Technical Support
Shanghai Honghua offers a lot of technical services including supervision of installation, remote help and on-site support. Our expert staff guarantees effective functioning of equipment throughout the whole product life cycle.
All mechanical and electrical components are covered under the 12-month guarantee and technical assistance is provided for life to answer operational issues and to help to optimise the system. Spare parts supply and maintenance support ensure continuation of production.
Flexible trading terms (FOB Shanghai/Ningbo, CIF, DAP) and various logistical solutions (sea freight, air freight, rail transport, international express) meet the needs of worldwide customers.
FAQ
Q: Why is this product good for high-speed production?
A: The servo-driven feeding system and triple photoelectric sensors can maintain ±0.1 mm positioning accuracy at 480 strokes/min, and there is no start-stop mechanical stress like conventional equipment.
Q: How does the machine avoid adhesive leakage during processing?
A: The guides have a non-stick coating to avoid build-up of adhesive and the cutting pressure control is optimised for the job at hand. The waste disposal system works quickly to remove the stripped material.
Q: Does the technology work on multi-layer laminate material?
A: Yes, the adjustable pneumatic pressure system (0.4-0.8 MPa) can be adjusted to different substrate thickness without liner penetration. This is crucial for complicated composite materials.
Q: What is the best timetable for performance maintenance?
A: Periodically photoelectric sensors are inspected, mechanical parts are lubricated, and the die blades are evaluated from time to time to preserve consistent quality. Our lifetime technical assistance covers how to service it.
Q: Do you manufacture bespoke die plates?
A: Yes, we manufacture die plates for special label shapes, with an effective area of 370×370 mm to meet different production needs.
Contact Us
Ready to enhance your label production capabilities with a Label Die Cutting Machine? Contact our technical team to discuss your specific requirements. Email: [email protected]
