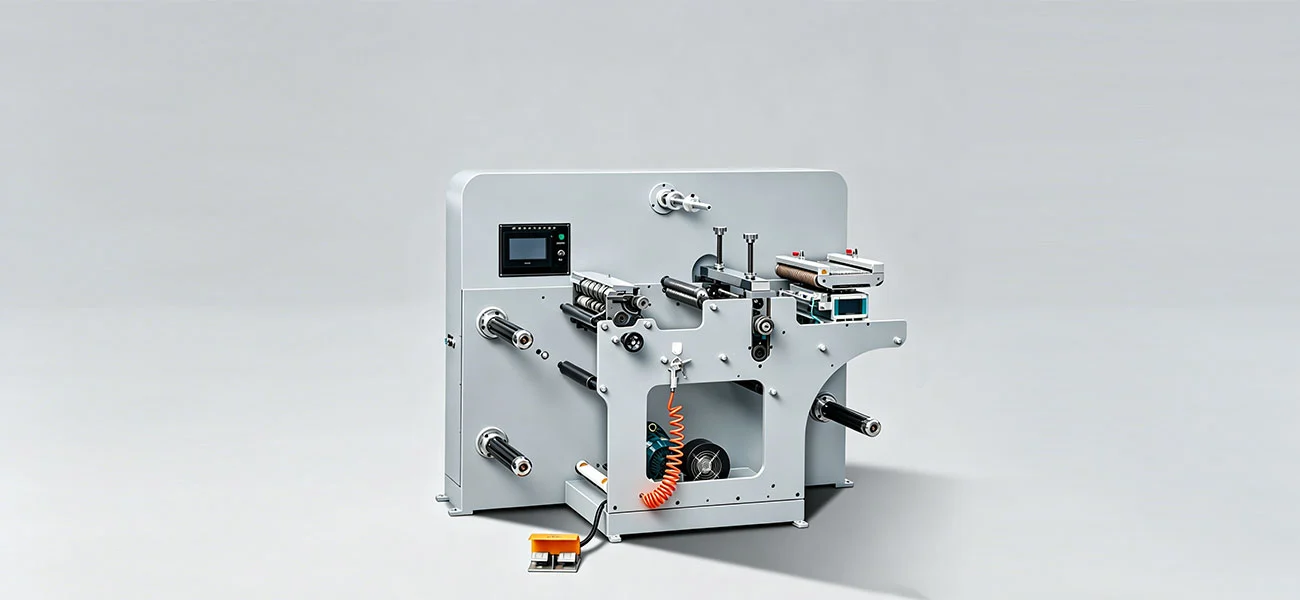

Automatic Labeling Rotary Die Cutting & Slitting Machine
2、Equipped with a full-servo control system, photoelectric registration, automatic web guiding, and constant tension control for stable material feeding, accurate positioning, and wrinkle-free processing.
3、Intelligent PLC touchscreen with one-click parameter settings enables quick job changeovers. One machine completes labeling, die-cutting, slitting, and rewinding for all types of roll materials.
4、Die-cutting speed: 120 m/min.
5、Die-cutting precision: ±0.15 mm.
6、Designed for a 20-year service life with lifetime after-sales service support.
7、Multiple production factories across China ensure fast order delivery.
8、Equipment warehouses in Southeast Asia facilitate efficient import and export worldwide.
High-Speed Automatic Labeling Rotary Die Cutting & Slitting Machine for Multi-Functional Label Finishing Solutions
Shanghai Honghua Digital Equipment Co., Ltd. is a competent Automatic Labeling Rotary Die Cutting & Slitting Machine supplier which integrates five important operations in one continuous manufacturing line. This finishing equipment has automatic labelling, accurate rotary die cutting, waste stripping, slitting and rewinding. It has a full-servo control system with PLC touchscreen interface and cuts with an accuracy of ±0.15 mm at a speed of 120 m/min. It has a 20 year design life and is backed by manufacturing facilities in China and equipment depots in Southeast Asia for speedy global delivery.
What Is an Automatic Labeling Rotary Die Cutting & Slitting Machine?
This integrated finishing system tackles challenges in electrical component manufacture and label converting. In typical multi-step manufacturing, the use of separate machines for labelling, die cutting and slitting creates waste, misalignment and increased labour costs.
These difficulties are resolved by the Automatic Labeling Rotary Die Cutting & Slitting Machine with synchronous process automation. Advanced servo-synchronization technology provides high operating speeds with micro-level accuracy. This design avoids roll transfers between equipment and reduces the challenges of material handling and registration.
It makes your production team work more efficiently. Cut branded finished goods exactly from raw roll material on one machine without human involvement.
Core Technical Specifications
| Parameter | Specification |
|---|---|
| Die-cutting Speed | 120 m/min |
| Max Paper Feeding Width | 320 mm |
| Die-cutting Accuracy | ±0.15 mm |
| Max Unwinding Diameter | 800 mm |
| Max Rewinding Diameter | 140 mm |
| Rewinding Core Size | 1 inch, 1.5 inches |
| Air Pressure Requirement | 0.4–0.8 MPa |
| Total Power | 8 kW |
| Voltage | 220V 1-phase |
| Machine Dimension | 1850×1300×1700 mm |
| Overall Weight | 2300 kg |
Integrated Multi-Function Design Advantages
All-in-One Production Efficiency
Your plant may combine five different operations into one continuous operation. The machine has automated labelling, rotary die cutting, waste stripping, precise slitting and rewinding. This consolidation streamlines your manufacturing process and drastically cuts the cost of your equipment acquisition.
Continuous Operation on Assembly Line
Feed raw ingredients one time, get final goods directly. The technology prevents repeated loading and unloading between process steps. This continuous operation minimises loss of material and decreases handling damage. Your operators spend less time on material movement and more time on productive production.
Accurate and Stable Processing
In addition to high-precision photoelectric positioning and automated web guiding systems, the full servo synchronous drive technology is available. This combination allows bubble free, offset free labelling with clean, burr free cutting edges. Constant tension management prevents wrinkles from appearing during the whole manufacturing run.
Wide Material Compatibility and Versatility
The Automatic Labeling Rotary Die Cutting & Slitting Machine is suitable for single-sided and double-sided labelling. It can work with normal labels, special-shaped labels, films, foam materials, protective films and different electronic roll materials with little reconfiguring.
This kind of flexibility makes the machine ideal for packaging applications in the pharmaceutical industry where tamper-evident labels are required, thermal shipping labels for logistics and e-commerce applications, and precision electronics manufacture of die-cut gaskets and insulating films.
Intelligent Control System
The PLC visual touchscreen interface offers straightforward one-click parameter setting. Your operators can easily change speed, tension and processing settings without extensive programming skills. New team members are trained on operating the equipment in quick training sessions.
Intelligent photoelectric registration and automated deviation correction technologies provide constant quality throughout manufacturing runs. The technology automatically adjusts for changes in material and keeps everything in good alignment.
Quality Control and Inspection Standards
We have very strict inspection standards in our production process. Concentricity testing is used to keep the tolerance on the rotary shafts within 0.02 mm so that the die-cutting pressure is not uneven. The registration correctness is checked with the help of precision measuring devices during the change of speed.
Slitting edge examination indicates that the finished reels have burr free edges. Electrical load testing is used to check the performance of a servo motor during long-term continuous operation to guarantee dependable industrial duty cycles.
Every machine is thoroughly tested before being sent. This quality assurance approach ensures your equipment is up to the most stringent production standards from day one.
Industrial-Grade Durability and Support
20-Year Design Service Life
Thanks to the robust mechanical design and high quality components, long-term operating stability is guaranteed. The machine keeps the same performance at years of continuous industrial operation.
Complete After-Sales Service
Shanghai Honghua warranty 12 months and life time technical help. We provide remote support, on-site technical service and replacement parts delivery by our skilled service staff. You get rapid response times and experienced advice throughout the operating life of your equipment.
Global Manufacturing & Logistics Network
Fast order fulfilment is possible due to several manufacturing sites in South China, East China and Southeast Asia. Warehouses for equipment in Southeast Asia are well located for international transportation. We support FOB, CIF, DAP trading terms with experienced customs clearance help.
standard export package: fumigated solid hardwood containers with multi-layer shockproof foam protection Separate moisture-proof packing of precision components for safe overseas shipment.
FAQ
Q: How does the machine compensate for changes in production speed to ensure registration accuracy?
A: The system uses a closed loop servo control where the labelling head and die-cutting station are electrically synchronised to the master encoder. This real time adjustment preserves the accuracy of the alignment during changes in speed.
Q: Can this work with thin film materials such as 12 micron PET?
A: Yep. Specialised vacuum suction rollers and ultra-sensitive tension controls make it possible to treat thin substrates without stretching or wrinkling of the material.
Q: What is the normal changeover time from one die-cutting pattern to another?
A: The magnetic cylinder design and rapid clamping mechanism allow for full die change-over in 10-15 minutes thereby reducing production down time.
Q: How does waste matrix removal work at high speeds?
A: The specialised waste rewinder has a separate tension motor and an optional high-pressure air suction system, enabling the effective removal of thin web matrix without reducing production speed.
Q: What kind of regular maintenance is required for the equipment?
A: Daily examination of circular blades for wear and weekly lubrication to slitting shaft. Thanks to the easy design, your maintenance crew can go through standard tasks swiftly.
