Automatic Label Dispenser
2. The machine supports stepless speed regulation and custom length adjustment, with a built-in automatic counting function. It delivers flat and wrinkle-free peeled labels.
3. Compact size for easy placement, stable operation and low failure rate. Compatible with various self-adhesive barcodes and anti-counterfeit roll labels. It can work as a standalone unit at workstations or be matched with production lines. Featuring simple operation with zero learning curve, it is a cost-effective auxiliary machine for mass labeling work.
4. 20-year service life with lifelong after-sales service support.
5. Multiple production factories across China enable fast order delivery.
6. Equipment warehouses are set up in Southeast Asia to facilitate convenient import and export to various countries.
High-Precision Automatic Label Dispenser | Industrial Label Peeling Machine for Enhanced Production Efficiency

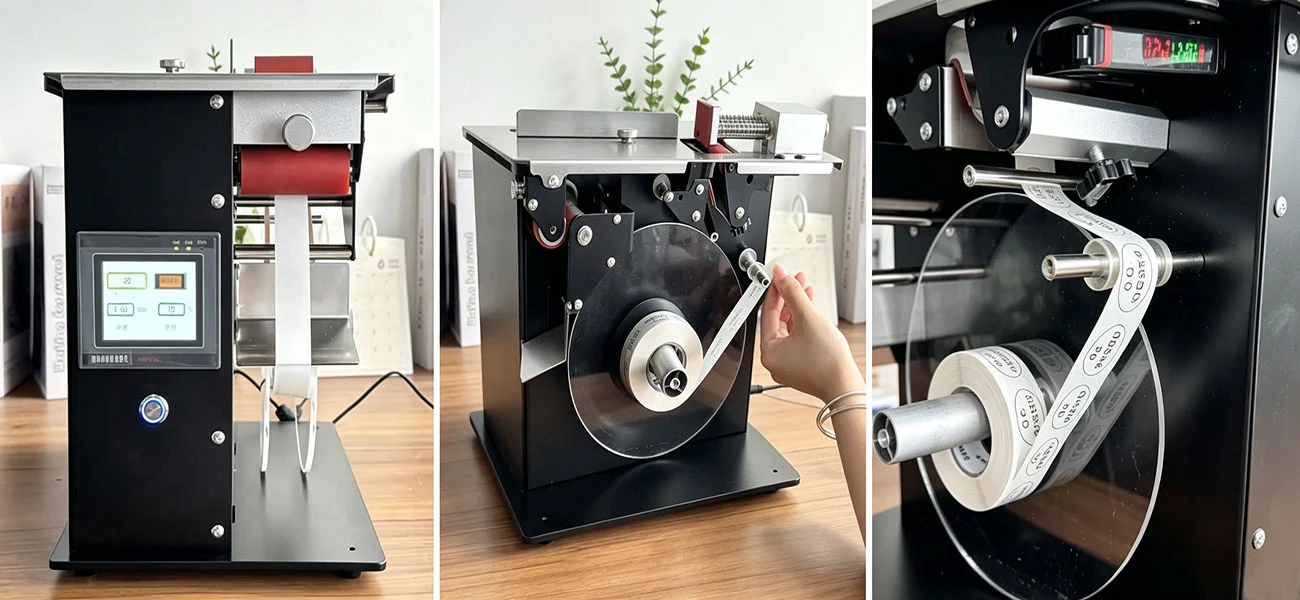

The X2 Automatic Label Dispenser, manufactured by Shanghai Honghua Digital Equipment Co., Ltd., is a fully automatic intelligent label stripper with peeling accuracy and reliability. This sophisticated dispenser is controlled by microprocessor and employs high-sensitivity photo-electric detection to automatically recognise and separate labels. Built-in automatic counting function counts from 0 to 999,999 units. Custom length adjustment and stepless speed control from 10mm to 200mm per second for industrial performance. Thanks to 20 years of service life, 20 years of manufacturing experience and 13 technical patents, this small yet tough solution ensures a flat, wrinkle-free label display in a variety of industrial environments.
What is an Automatic Label Dispenser and Why Your Operation Needs One?
An accurate electromechanical system takes pressure-sensitive labels from their release liner and applies them. The method eliminates the inefficiencies and ergonomic hazards of human label handling in large volume manufacturing and logistics.
Traditional hand peeling is a laborious process. Repeated peeling hurts workers, and skin oil pollution damages labelling. The X2 device addresses these problems utilising sophisticated photo-sensor detection that automatically advances the next label when the previous one is removed.
Labour costs are lowered 60% and labelling speed is double. Removing repetitious peeling activities allows your workers to concentrate on value-added jobs, resulting in increased production output and a safer work environment.
Core Technical Properties and Industrial-Grade Construction
The X2 Automatic Label Dispenser delivers performance through carefully engineered technical specifications that meet demanding industrial requirements.
| Parameter | Specification |
|---|---|
| Dispensing Speed | 10-200 mm/second (stepless adjustment) |
| Sensor Type | High-sensitivity photoelectric with 2mm gap detection |
| Motor System | Premium stepping motor with stable torque output |
| Counting Range | 0 to 999,999 units with real-time display |
| Label Compatibility | Various self-adhesive barcodes and security labels |
| Core Compatibility | 1-inch to 3-inch universal core support |
| Operation Mode | Standalone or inline production integration |
| Service Life | 20 years with proper maintenance |
| Warranty | 12 months comprehensive coverage |
| Voltage Options | 110V / 220V / 380V customizable |
An integrated small aluminum frame with anti-static coatings protects sensitive electronic components in the sturdy structure. Even under constant demand, heavy-duty brushless motors operate 24/7.
Liner breaking is prevented by advanced tension control systems that maintain peeling pressure throughout label materials. Adjustable stripping plate angle and precise roller tension prevent adhesive residue transfer and backing paper rips.
Five Key Advantages That Transform Your Labeling Workflow
Full-Automatic Intelligent Peeling
Label position is tracked within 0.1mm using high-precision photoelectric sensors. Each label is fed and separated by a mechanical cycle. Eliminates manual contact sites to decrease contamination and enhance production by 300% vs hand peeling.
Stability using flexible speed control
Premium stepping motors provide consistent power during extended production runs. Stepless speed adjustment allows operators to regulate the peel-off speed from 10mm to 200mm per second depending on label materials, thicknesses and production demands. This versatility allows both fine pharmaceutical labels and heavy-duty industrial bar codes.
The Integrated Intelligent Counting Production Management
The built-in digital counter records 0-999,999 labels in real time for precise inventory and batch control. This measurable data helps ISO quality procedures and allows supervisors to monitor production without the use of equipment.
Small Footprint, Flexible Deployment
X2 occupies less space than manual workstations and provides optimal capabilities. It may be utilised alone at work stations or on automated production lines. Installation adjustable for permanent and mobile usage.
Industrial Durability And Ease Of Operation
Untrained operators may run the one-touch start, stop and speed adjustment buttons on the simplified control panel. The mechanical design is sturdy and needs regular maintenance. It has a low failure rate. The X2 is dependable, making it suitable for multi-shift industrial applications.
Diverse Application Scenarios Across Critical Industries
SMT and Electronics Assembly Lines
Automatic Label Dispenser for ESD-safe printed circuit board identification labels for Surface Mount Technology applications to avoid static discharge. The exact positioning and anti-static coating provide contamination-free labelling of sensitive electrical components.
Operations of Food and Pharmaceutical Packaging
X2’s clean moisture-resistant synthetic label processing is ideal for cold-chain and humidity-controlled operations. Even in the case of tough adhesives or ultra-thin liners used in pharmaceutical traceability, the dispenser maintains separation quality with no adhesive bleed-through.
ecommerce and logistics fulfilment centers.
The X2 is used in large volume distribution operations during peak periods to attach shipping labels. Third party logistics providers require a continuity in workflow and the system achieves throughput objectives without recalibration for varied label sizes
QC Stations for Manufacturing
The dispenser is used to properly apply labels to production lines needing serial number tracking, compliance labels or inspection tags. In-built counter synchronised with quality management systems for identification of unit.
Quality Control Standards That Guarantee Consistent Performance
Shanghai Honghua applies reliable quality requirements in the production process to meet the international standards.
Dispensing accuracy testing: Each device is tested 10,000 times for placement testing with label stopping consistency within ±0.5mm tolerance. This validates sensor calibration and mechanical correctness prior to delivery.
The motors are tested under continuous load to confirm thermal stability and to assure safe operation throughout lengthy manufacturing runs. This avoids temperature degradation that might affect reliability.
Stripping Efficiency Inspections: Quality engineers examine stripping plate angles and roller tension settings to ensure seamless label separation across a range of materials without transferring adhesive residue or damaging backing paper.
All dispensing units used in electronics manufacturing are tested for electrostatic discharge to ensure they do not harm sensitive components during label handling.
Load Bearing Testing: Structural testing has shown that the frame can support enormous label rollers at maximum capacity without bending or becoming unstable.
This huge quality control is in line with our production proficiency with our 13 technology patents and 20+ certification requirements.
Customization and Global Logistics Support
Shanghai Honghua can provide OEM and ODM according to your operational demands. The hardware, software and voltage may be adapted to the regional norms and application needs.
Our facilities in South China, East China and Southeast Asia can handle orders fast with proficient export packaging. Standard fumigated solid wood containers with multi-layer shockproof foam are used for the overseas shipment of exact components.
We accept FOB Shanghai/Ningbo, CIF & DAP terms and provide delivery by sea, air, train and express. Complete papers for destination country, pass local customs in 1-3 days.
FAQ
Q: Is the X2 product compatible with clear/transparent labels?
A: Our premium versions use ultrasonic or capacitive sensors instead of photoelectric sensors, which might have difficulty with fully transparent materials, to detect gaps in clear labels. Please mention this to our technical stuff before purchase.
Q: What causes the dispenser to skip or dispense many labels?
A: Faulty sensor sensitivity calibration or sensor lens dust is the typical reason. You can get precise tuning with customisable sensitivity levels on the X2. If you keep it clean with isopropyl alcohol, you won’t have the build-up of stuff that reduces detection accuracy.
Q: How is label jamming avoided in continuous operation?
A: Match your label roll to the dispensing speed and weigh the tension arm for your waste liner rewinder. Correct tension prevents slack that might misalign and bind.
Q: Are there any limits on thickness and substance of the label?
A: The basic configuration for X2 is for 50 – 150 micron paper, polyester and polypropylene labels. High-torque motor modifications and specific stripping plates handle thick labels or metal foils.
Q: What is the reliability maintenance schedule?
A: Weekly cleaning of the rollers and stripping plate with isopropyl alcohol can decrease adhesive build-up that creates friction and adds stress to the motor. The service life is 20 years with monthly sensor alignment and quarterly lubrication of moving parts.
Q: Does the dispenser work with automated production lines?
A: Yeah. The X2 directly and independently interfaces with conveyors and robotic pick-and-place equipment. Installation and customisation of control interfaces for automation protocols are handled by our technical team.
Contact Us
Ready to transform your labeling efficiency with the X2 Automatic Label Dispenser? Contact [email protected] today for detailed specifications and quotations.
