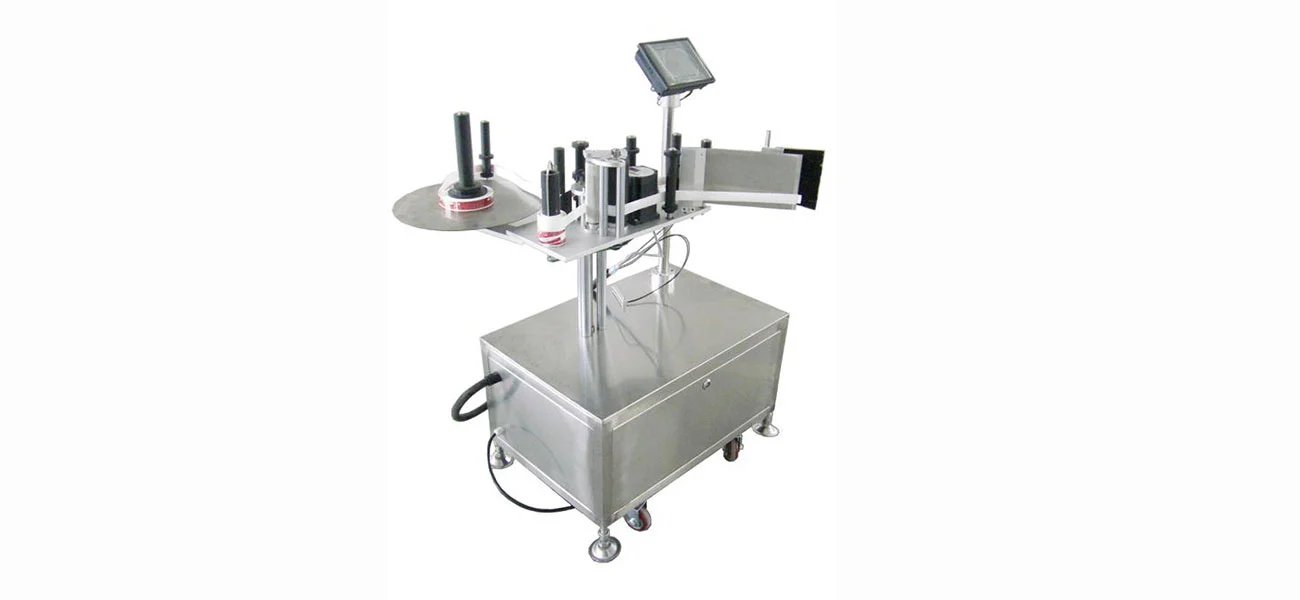

Inline Side Labeling Machine
2. PLC combined with LCD touch screen panel, the setting and operation is clear and easy.
3.The equipment is complied with GMP requirements and made of SUS304 stainless steel
and high-class aluminum alloy.
4.The machine has many functions such as labeling, label smoothing, attaching, counting.
5. The labeling position of height can be adjusted.
6. The machine can be used in production line with conveyor belt.
7. The special machine can be customized according to customer requirement
High-Performance Inline Side Labeling Machine: Automated Industrial Solution for Precision Container Labeling
The JT-610Y Inline Side Labeling Machine, a commercial-grade automatic labelling system, is available from Shanghai Honghua Digital Equipment Co., Ltd. This equipment can label at speeds up to 25 meters per minute with a ±1mm accuracy and is ideal for high volume applications where accurate label placement on barrels, cartons and large containers is necessary. GMP certified SUS304 stainless steel frame and sophisticated PLC-LCD touch control systems allow integration of our solution to existing conveyor lines. We provide strong equipment with a 12-months warranty and lifetime technical support. We have 20 years of expertise in manufacturing and 13 technological patents.
What Makes Our Inline Side Labeling Machine Different?
Our automated labelling equipment solves the problem of loss of productivity in the packaging process. Our approach guarantees placement even over extended manufacturing runs, while hand labelling causes inconsistent output and lowers efficiency.
It sits just next to your conveyor and doesn’t get in the way of operations. The label height may be modified for various product sizes. This means the technology is versatile and can be applied in a number of fields.
Integrated counting procedures provide real-time production tracking. The label smoothing feature ensures that every application is wrinkle-free and air-free. Such properties reduce waste and costs of reworking.
Technical Specifications
| Parameter | Specification |
|---|---|
| Model | JT-610Y |
| Power Supply | 110V/220V, 50/60Hz, 400W |
| Labeling Speed | 0-25 M/min |
| Labeling Precision | ±1mm |
| Bottle Diameter | 40-100mm (customizable) |
| Label Size | H: 20-105mm, L: 20-250mm (customizable) |
| Label Reel Diameter | Inner 76mm, Outer 360mm (max) |
| Machine Dimensions | L950 × W650 × H1500mm |
| Frame Material | SUS304 Stainless Steel & Aluminum Alloy |
Advanced Control Technology
Easy operator training is provided by the PLC and LCD touch screen panel. Workers may store and recall parameter adjustments with a click. This minimises changeover time while moving between several product runs.
Features are in place for low label roll auto-stop to prevent unlabelled items from getting through. The shortage alarm system notifies operators instantly and reduces production downtimes. These smart features will keep your queue running smoothly all shift long.
The Inline Side Labeling Machine uses production counters to collect data for quality management reports, allowing you to see daily output without manual tracking. Its easy user interface helps minimise the operator mistakes that can occur with more sophisticated mechanical controls.
Precision Engineering for Consistent Results
With the use of positioning fixtures, our multi adjustable labelling head has ±0.5mm precision. Labels attach flat, without deviation or warping, even on difficult surface geometries. This accuracy fulfils the rigorous demands of the pharmaceutical and electronics industries.
The equipment frame is made of aviation-grade aluminium alloy and stainless steel that is resistant to corrosion. This structure avoids rust in humid situations, and maintains structural integrity. The basic design has no places of dust buildup which makes it suitable for clean room manufacturing.
Tool-free, high-speed size changeover enables you to convert between multiple container diameters. Synchronous ports are reserved for connecting with upstream filling equipment and downstream case packers. The integration ensures a smooth flow of manufacturing.
Versatile Industrial Applications
This technique is used by food and beverage businesses for juice containers and gallon jugs that need to operate in a moisture resistant way. The rugged design is able to endure the daily washdown processes seen in hygiene-sensitive areas.
Pharmaceutical manufacturers put regulatory labels on bottles and the positioning must be accurate for compliance checks. The regular posture allows reliable reading of data by the barcode scanner throughout inspection operations.
Logistics operations apply labels to cartons and cases with changeable shipment information . The system has guiding mechanisms that may be adjusted based on the sizes of the boxes. This flexibility lowers the requirement for several purpose-built equipment.
Customization Options for Your Needs
We offer OEM and ODM services to suit the industry needs. The hardware arrangement is adapted to the form of the container and to the manufacturing pace. Software functionality may be customised to fit with your current production management systems.
Voltage choices include 110V, 220V and 380V to satisfy the power requirements of different regions. Extended stations are used for longer items that need numerous labelling operations. High-volume procedures use double-row simultaneous labelling for more throughput.
Development of non-standard equipment is for particular problems not covered by off-the-shelf solutions. You engage with our technical team to develop fixtures and timing sequences to precise requirements.
Quality Assurance and Support
All Inline Side Labeling Machines are fully tested before shipping. We check the accuracy of the labelling using digital measuring instruments in the course of factory approval processes. Adhesion integrity tests verify that labels will stay in place under normal handling circumstances.
We use fumigated hardwood boxes, with double layer foam protection for professional export packing. Precision components are individually wrapped to protect them from moisture. We take great effort to make sure your equipment comes ready to install.
We provide a 12 month guarantee against manufacturing faults and component failures. Lifetime technical support to help you remotely should problems occur. Spare components available to minimise down time during scheduled maintenance.
Global Logistics and Trade Terms
We send by sea freight, air cargo, rail transport and rapid delivery depending on your necessity. We can do FOB Shanghai/Ningbo, CIF, DAP ... whatever your buying requirements are. Your chosen goods forwarder may also be selected.
Domestic customs clearance takes normally 1-3 working days. We offer appropriate documents to assist you with your destination-country import processes. Professional packing according to the international standard for the transfer shipment of the equipment
FAQ
Q: How does the machine maintain precision at peak speed?
A: Photo-electric sensors coordinate the conveyor operation with label dispensing. The PLC automatically adjusts the timing to account for speed differences and requires no recalibration.
Q: What if the side walls of the containers are not even?
A: Yes, our wipe-on application technology applies adjustable pressure to adapt labels on curved or rough surfaces. Labelling procedure, guide rails stabilise the containers.
Q: What if the label alignment wanders during production?
A: The touch screen can provide you the real-time positional feedback. Operators make micro-adjustments from the control panel, keeping the line running without halting.
Q: Do you have clear labelling for the system?
A: Standard photo-electric sensors can accurately identify the borders of labels. For clear-on-clear applications we may switch to specialised sensors that measure thickness differences rather than opacity differences.
Q: How fast can operators replace label rolls?
A: The rapid release reel holder permits a roll change in less than 2 minutes. Automatic threading features save setup times compared to manual loading systems.
